Dell 365W PSU 7VK45 T1M43 PowerEdge T1700 T3620 Precision T3620 T20 (8+4+6P) - Power Supply

Dell 365W Power Supply 7VK45 / T1M43 | PowerEdge T1700 / T3620, Precision T3620 / T20 (8-Pin + 4-Pin + 6-Pin)

New original Dell 365W power supply for PowerEdge T1700 / T3620 and Precision T3620 / T20 tower platforms
Dell part numbers: 7VK45 / T1M43 — same physical unit, interchangeable DPN
PSU model numbers: D365EM-00 / HU365EM-00
Dimensions: 150 × 140 × 86 mm — Dell MT tower form factor

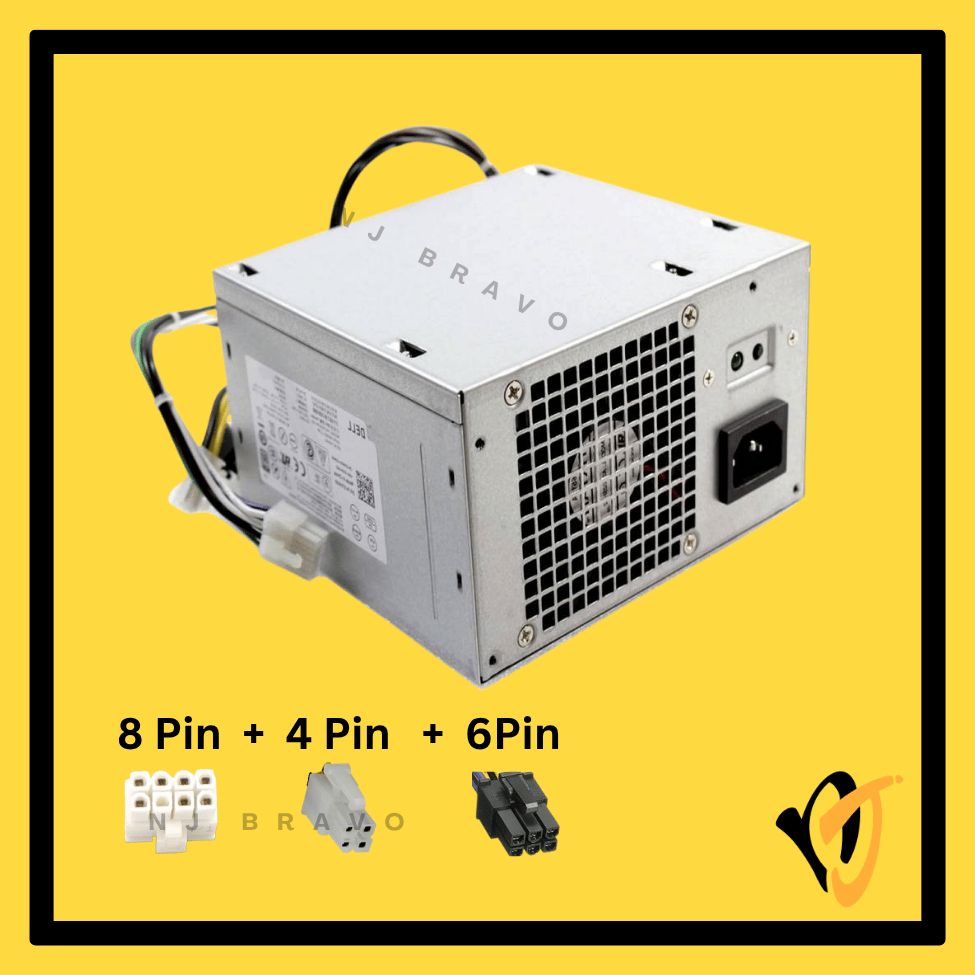

Connector layout: 8-Pin + 4-Pin + 6-Pin (8+4+6P) — includes 6-Pin PCIe for discrete GPU support
365W for workstation-class MT builds requiring GPU power
Wide input range: 100–240V AC, 50–60Hz, 5A — compatible with MY/SG 240V supply
Built-in OVP / OCP / SCP protection

Brand	Dell
Condition	New Original (Genuine Dell)
Dell PN	7VK45 / T1M43
PSU Model	D365EM-00 / HU365EM-00
Wattage	365W MAX
Input Voltage	100–240V AC, 50–60Hz, 5.0A
Output	+12VA=14A / +12VB=18A / +12VC=11A / +12VSB=1.67A — 365W MAX
Form Factor	Dell MT Tower (150 × 140 × 86 mm) — Non-Hot-Swap (Fixed)
Connector Type	8-Pin + 4-Pin + 6-Pin PCI-E (8+4+6P)
Hot Plug	No
Protection	OVP / OCP / SCP

Dell PowerEdge Server / Precision Workstation Series (MT):

⚠️ Always verify the part number / model number on your existing PSU label before purchasing.

1× Dell 365W PSU 7VK45 T1M43 PowerEdge T1700 T3620 Precision T3620 T20 (New Original or identical DPN)

3-month replacement warranty
Covers manufacturing defects; physical damage and improper installation not included

8+4+6P connector — includes 6-Pin PCIe power output for discrete graphics card support.
Dell MT tower proprietary form factor (150 × 140 × 86 mm) — not compatible with SFF or desktop chassis.
Verify Dell DP/N on existing PSU label matches 7VK45 or T1M43 before ordering.
New original unit — genuine factory Dell unit, not refurbished or aftermarket.
