Dell 250W PSU C627N V38RM 6HTWP N250E-S0 PowerEdge R210 R210II R220 Non Hot-Swap - Power Supply

Dell 250W Server PSU C627N / V38RM / 6HTWP / N250E-S0 | PowerEdge R210 / R210 II / R220 — Non Hot-Swap Cabled Power Supply

Dell 250W non hot-swap server power supply — fixed cabled output, server must be powered down before replacement
Dell Part Numbers: C627N / 0C627N / V38RM / 0V38RM / 6HTWP / 06HTWP / D221N — same physical unit across all variants
PSU Models: L250E-S0 / N250E-S0 / NPS-250NB A — interchangeable across compatible PowerEdge platforms

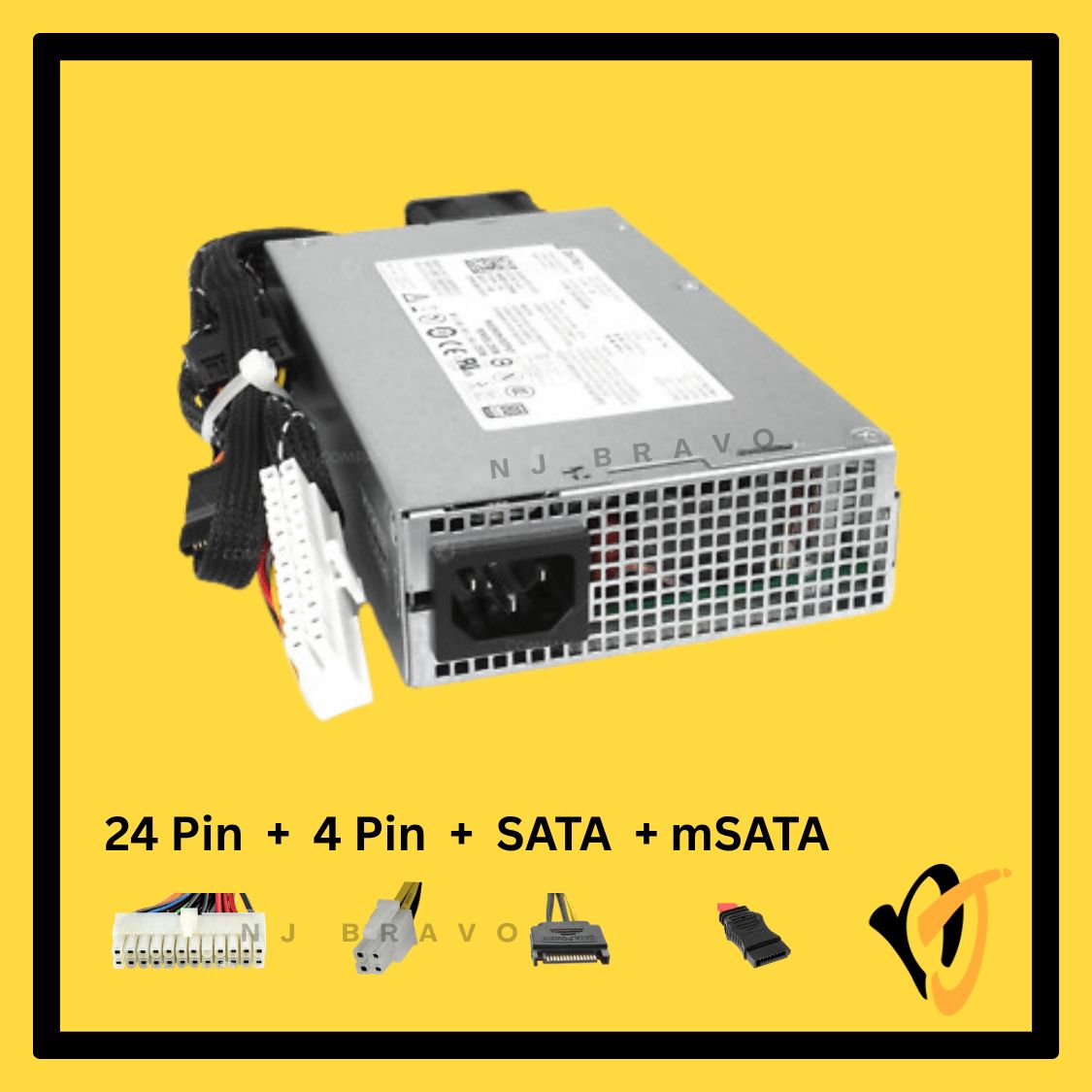

Cabled output — includes 24-pin ATX, 4-pin 12V ATX, slimline SATA, and 2x SATA power connectors
Input: 100–240V auto-sensing, 50/60Hz — universal voltage, no manual switching required
80 PLUS Silver certified — high efficiency, reduced heat output and power consumption
Single-fan cooling design optimized for 1U rack server airflow
Compatible with Dell PowerEdge R210, R210 II, R220, and DL1000 Backup and Recovery Appliance

Brand	Dell
Condition	OEM Compatible — New
Dell Part Numbers	C627N / 0C627N / V38RM / 0V38RM / 6HTWP / 06HTWP / D221N
PSU Model Numbers	L250E-S0 / N250E-S0 / NPS-250NB A
Max Output Power	250W
Input Voltage	100–240V AC, Auto-Sensing
Input Frequency	50 / 60Hz
Input Current	4A
Output Rails	+12V @ 20.8A / +5V @ 10A / +3.3V @ 5.0A / +12VSB @ 1.2A
Efficiency	80 PLUS Silver
Hot-Swap	No — Non Hot-Swap (server must be off for replacement)
Output Type	Cabled (fixed harness)
Connectors	1x 24-Pin ATX / 1x 4-Pin 12V ATX / 1x Slimline SATA / 2x SATA
Form Factor	1U Rack Server PSU
Cooling	Single fan

Always verify the Dell part number against your existing PSU label before ordering.

90-day replacement warranty
Covers manufacturing defects; physical damage and improper installation not included

This is a non hot-swap PSU — the server must be fully powered down before removing or installing this unit. It cannot be replaced while the system is running.
Cabled output design: power cables are fixed/attached to the PSU (not modular). Ensure existing cable routing inside the chassis is compatible before replacement.
C627N / V38RM / 6HTWP are Dell part numbers for the same 250W PSU unit — C627N and V38RM are typically associated with R210 / R210 II; 6HTWP is the R220 variant. All share the same form factor and are cross-compatible.
OEM Compatible — New unit. Not refurbished.
