Product

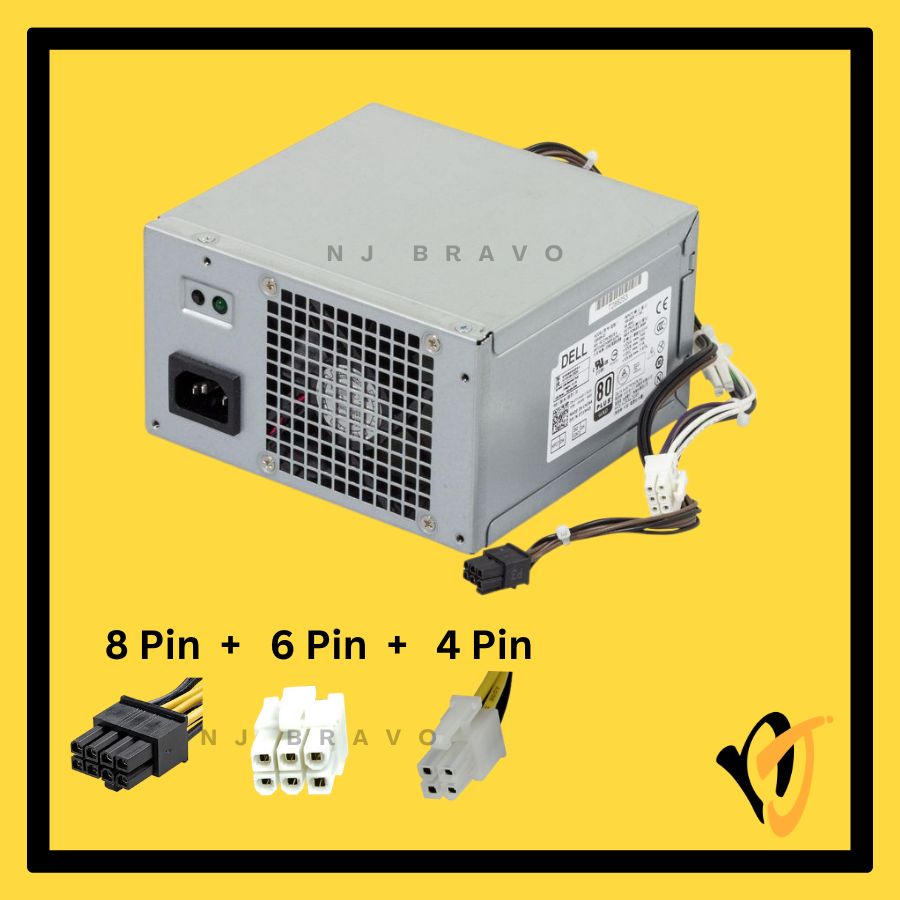

Dell 365W Power Supply T1M43 | OptiPlex 7010 / 7020 / 9020 MT, Precision T1700 MT (8 + 4 + 6 Pin)

2️⃣ Key Features

• New original Dell 365W power supply for OptiPlex MT and Precision T1700 MT systems
• Dell part numbers: T1M43 / 0T1M43
• PSU model numbers: H365AM-00 / L365AM-00 / AC365AM-00 / D365AM-00
• Dimensions: 150 x 140 x 86 mm - Dell MT tower form factor
• Connector layout: 8-Pin + 4-Pin + 6-Pin (8+4+6P) - Dell MT proprietary higher-wattage connector
• 365W for workstation-class OptiPlex MT / Precision T builds requiring discrete GPU support
• Built-in OVP / OCP / SCP protection
• Not interchangeable with Dell SFF PSU variants

3️⃣ Technical Specifications

4️⃣ Compatible Models

Dell OptiPlex MT / Precision:

• Dell OptiPlex 7010 MT (higher-wattage config)
• Dell OptiPlex 7020 / 9020 MT
• Dell Precision T1700 MT

Always verify the part number / model number on your existing PSU label before purchasing.

5️⃣ Package Contents

• 1x Dell 365W Power Supply T1M43 (New Original)

6️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

7️⃣ Additional Notes

• 365W for GPU-equipped MT builds - includes 6-pin PCIe power for discrete graphics.
• 8+4+6P connector - Dell MT proprietary. NOT compatible with SFF or standard ATX chassis.
• Verify Dell DP/N on existing PSU matches T1M43 before ordering.
• New original unit - genuine factory Dell unit, not refurbished or aftermarket.
