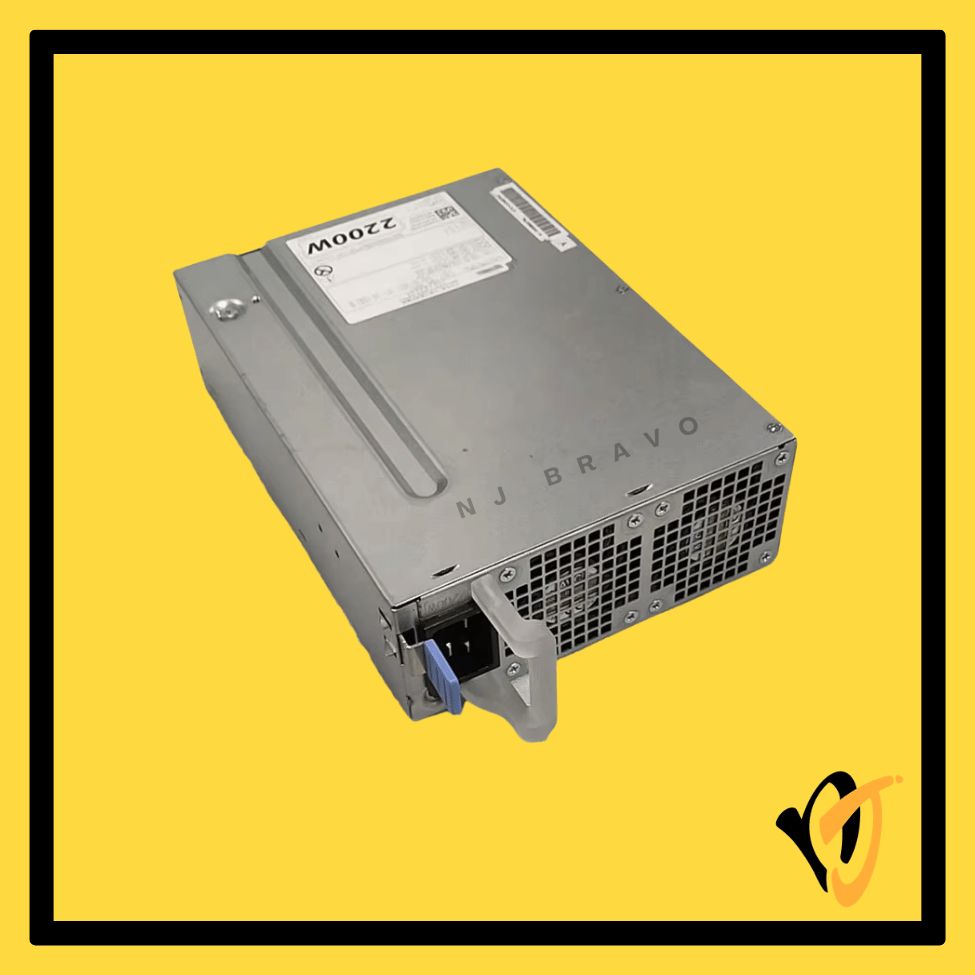

Dell 2200W Workstation PSU NC3TP Precision T7960 T7920 (Hot-Swap) - Power Supply

Dell 2200W Workstation Power Supply NC3TP | Precision T7960 / T7920 (Hot-Swap / Redundant)

Original Dell 2200W hot-swap workstation power supply for Precision T7960 and T7920
Dell part numbers: NC3TP
PSU model numbers: H2200EPF-00 / L2200EPF-00
Hot-plug / hot-swap capable — PSU can be replaced without shutting down the workstation
Supports redundant dual-PSU configuration in T7960 / T7920 chassis
2200W maximum output — designed for dual-socket, multi-GPU high-performance workstation workloads
Wide input range: 100–240V AC, 50–60Hz, 15A — output scales with input voltage
Built-in OVP / OCP / SCP protection

Brand	Dell
Condition	New Original (Genuine Dell)
Dell PN	NC3TP
PSU Model	H2200EPF-00 / L2200EPF-00
Wattage	2200W MAX (240V) / 1500W (115–200V) / 1200W (100–115V)
Input Voltage	100–240V AC, 50–60Hz, 15.0A
Output	2200W MAX at 200–240V — scales with input voltage
Form Factor	Dell Precision Workstation MT — Hot-Swap
Connector Type	Workstation Hot-Swap Backplane Connector
Hot Plug	Yes — Hot-Swap / Hot-Plug Supported
Redundancy	N+1 Redundant PSU Support
Protection	OVP / OCP / SCP

Dell Precision Workstation Series:

⚠️ Always verify the part number / model number on your existing PSU label before purchasing.

1× Dell 2200W Workstation PSU NC3TP Precision T7960 T7920 (New Original or identical DPN)

3-month replacement warranty
Covers manufacturing defects; physical damage and improper installation not included

High-current PSU — requires 240V circuit for full 2200W output. At 110V input, maximum output is limited to ~1200W.
Hot-swap — PSU can be replaced while workstation is running (when redundant PSU is active).
Designed exclusively for Precision T7960 / T7920 chassis — not interchangeable with other Precision models.
Verify Dell DP/N on existing PSU label matches NC3TP before ordering.
New original unit — genuine factory Dell unit, not refurbished or aftermarket.
