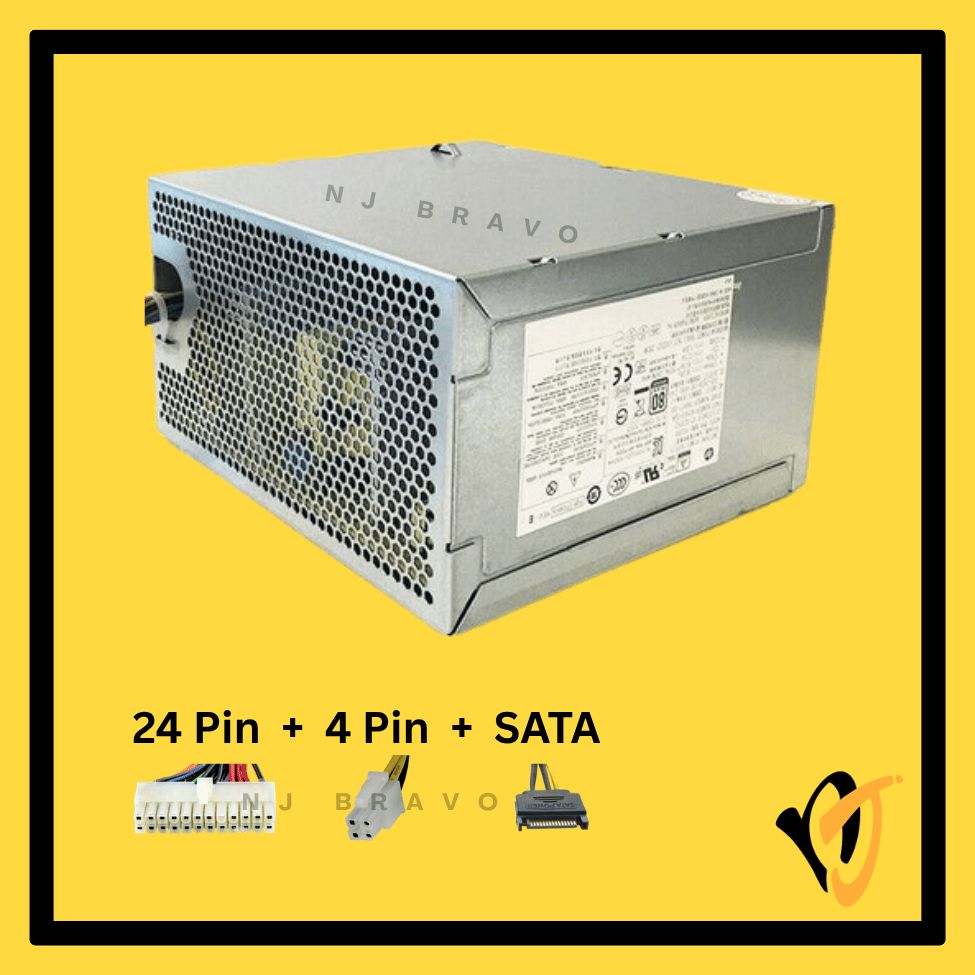

Dell 275W Power Supply FDT8H / R8JX0 | OptiPlex 3010 / 7010 / 9010 MT, Precision T1600 / T1650 MT (24 + 4 Pin + SATA x4)

2️⃣ Key Features

• New original Dell 275W power supply for OptiPlex 3010 / 7010 / 9010 MT and Precision T1600 / T1650
• Dell part numbers: FDT8H / R8JX0 / NFRTK / 61J2N / D3PMV
• PSU model numbers: AC275AM-00 / HU275AM-00 / PCB013
• Dimensions: 150 x 140 x 86 mm - Dell MT standard form factor
• Connector layout: 24-Pin + 4-Pin CPU + SATA x4 - standard ATX-style Dell MT connector
• 275W for Sandy Bridge / Ivy Bridge OptiPlex MT platform
• Built-in OVP / OCP / SCP protection
• 24-pin ATX connector - different from newer 3020/7020/9020 MT variants

3️⃣ Technical Specifications

4️⃣ Compatible Models

Dell OptiPlex Series (Sandy/Ivy Bridge MT):

• Dell OptiPlex 3010 / 7010 / 9010 MT

Dell Precision:

• Dell Precision T1600 / T1650 MT

Always verify the part number / model number on your existing PSU label before purchasing.

5️⃣ Package Contents

• 1x Dell 275W Power Supply FDT8H / R8JX0 (New Original)

6️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

7️⃣ Additional Notes

• 24-pin ATX connector layout - different from newer Haswell 3020/7020 MT (those use 8+4P or different layout).
• 4x SATA connectors - good for systems with multiple drives.
• Verify Dell DP/N matches FDT8H or R8JX0 on existing PSU label.
• New original unit - genuine factory Dell unit, not refurbished or aftermarket.
