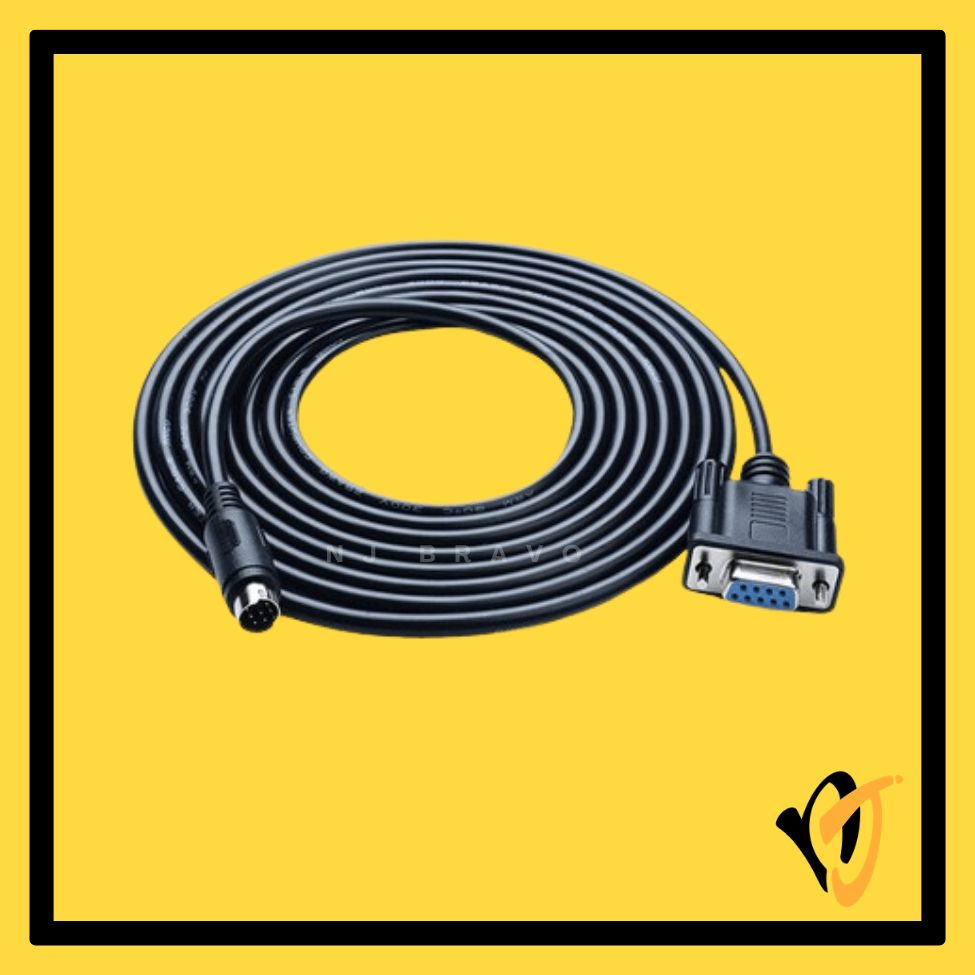

MITSUBISHI SC-11 | DB9F to MD8 RS-232 PLC Programming Cable — 3M

The Mitsubishi SC-11 is a direct RS-232 serial programming cable for Mitsubishi FX Series PLCs. It connects a PC's native RS-232 COM port (DB9 Female) to the FX PLC's MD8 programming port for program upload/download and online monitoring.

2️⃣ Key Features

• DB9 Female (9-pin D-Sub) on PC side — connects to PC's native RS-232 COM port
• MD8 / Mini-DIN 8-Pin (Male) on PLC side — connects to FX Series RS-422 programming port
• 3-metre cable
• RS-232 to RS-422 passive conversion built into cable

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Mitsubishi FX Series PLCs with MD8F round socket: FX1S, FX1N, FX2N, FX3U
• Use with FXGP/WIN, GX Developer, or GX Works2 software

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• Direct RS-232 PC-to-FX PLC programming (requires native serial COM port)
• Program upload/download and diagnostics

6️⃣ Package Contents

• 1× Mitsubishi SC-11 Programming Cable, DB9F to MD8, 3M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — not a Mitsubishi-branded unit.
• Requires a NATIVE RS-232 COM port. For USB connection, use FX-USB-AW (CPC-PLC-2303) or USB-SC09-FX (CPC-PLC-05f).
• The SC-09 is the earlier standard cable; SC-11 is a common OEM designation for the same DB9F-to-MD8 connection.
