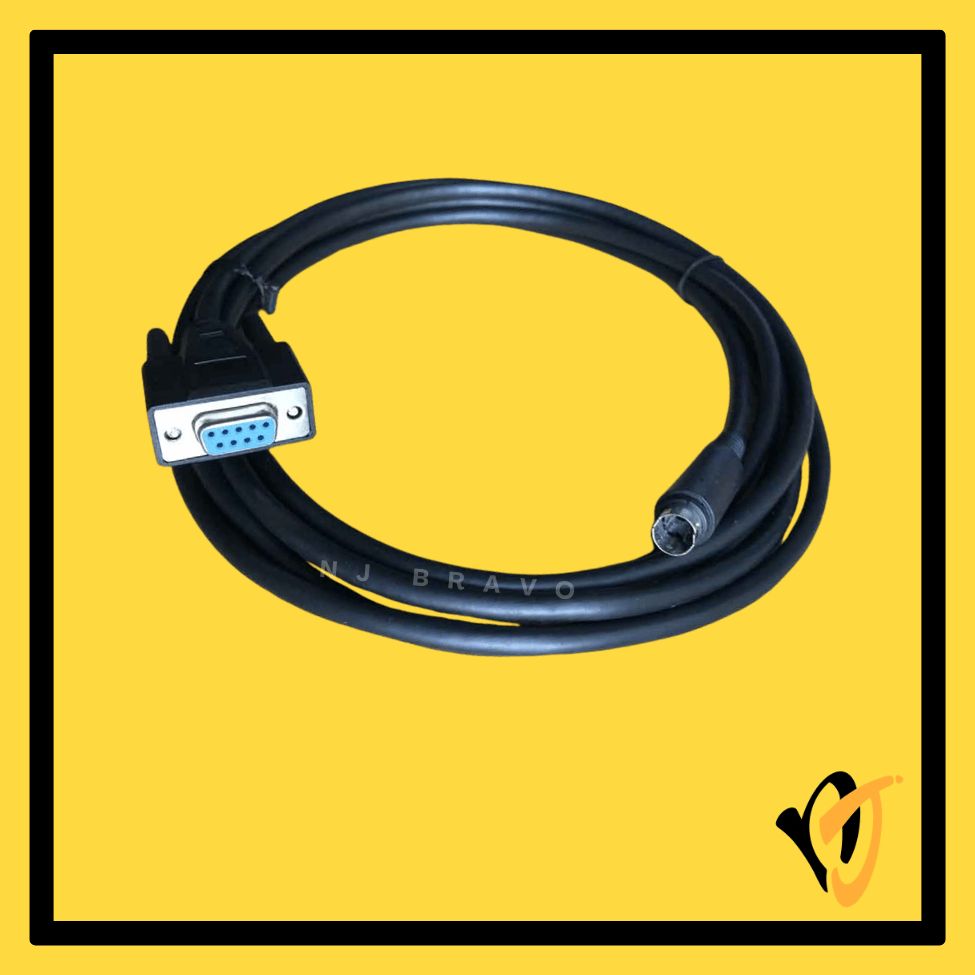

WEINTEK TK-FX | DB9F to MD8 HMI-to-PLC Communication Cable — 5M

The Weintek TK-FX (5M) is a communication cable for connecting Weintek TK Series HMI panels (TK6070 and similar) to Mitsubishi FX Series PLCs. The 5-metre version provides additional reach for larger panel installations.

2️⃣ Key Features

• DB9 connector on HMI side — connects to RS-232/485 COM port on Weintek TK HMI
• MD8 / Mini-DIN 8-Pin (Male) on PLC side — FX Series communication port
• 5-metre cable — extended reach for larger machine/panel installations
• RS-485 protocol

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Weintek TK Series HMI: TK6070iH, TK6070iK, TK6070iP and similar
• Mitsubishi FX Series PLCs: FX0S, FX0N, FX1S, FX1N, FX2N, FX3U

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• HMI ↔ Mitsubishi FX PLC communication over longer cable runs in large panels
• EasyBuilder Pro HMI using Mitsubishi FX protocol

6️⃣ Package Contents

• 1× Weintek TK-FX HMI-to-PLC Communication Cable, DB9 to MD8, 5M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — not a Weintek-branded unit.
• Configure EasyBuilder Pro with Mitsubishi FX Series RS-485 driver and match baud rate/parity to PLC settings.
