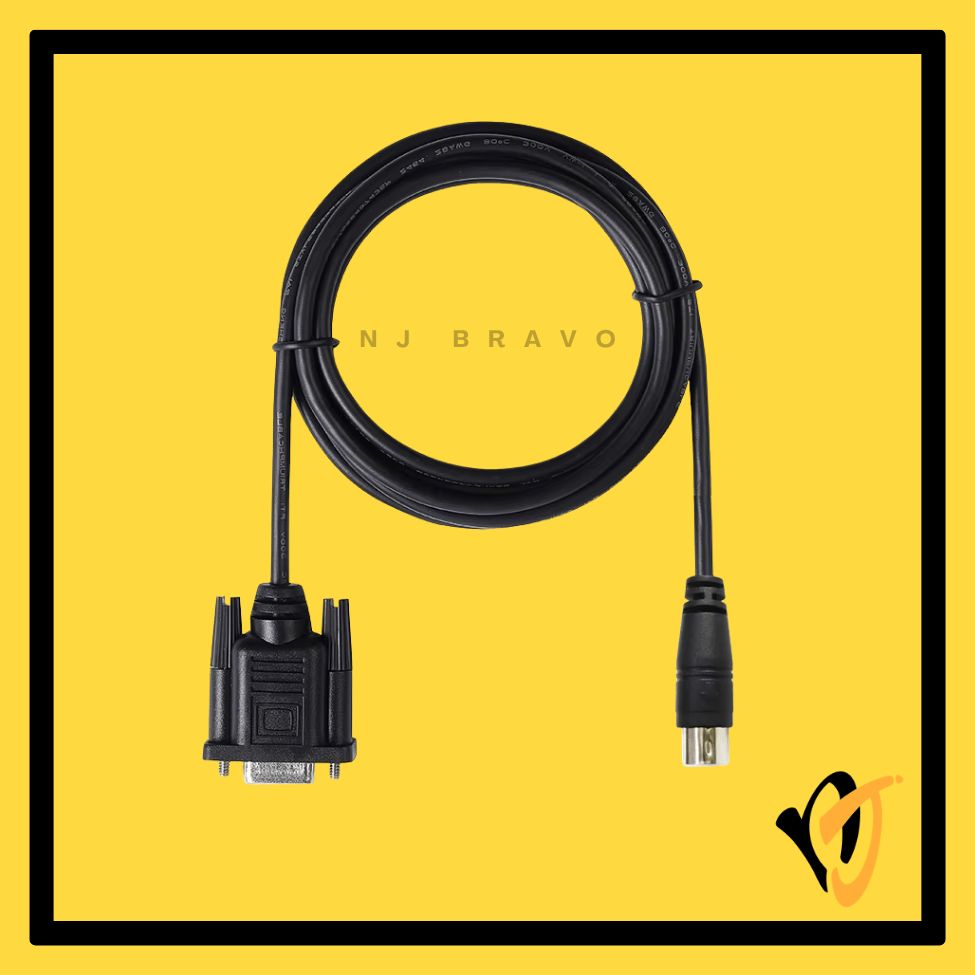

WEINTEK MT-FP | DB9F to Round 5-Pin HMI-to-PLC Communication Cable — 3M

The Weintek MT-FP is a communication cable for connecting Weintek MT Series HMI Touch Panels to Panasonic FP0 and FP-X Series PLCs. It uses a DB9 on the HMI side and a Round 5-Pin connector matching the Panasonic FP0/FP-X RS-232 port.

2️⃣ Key Features

• DB9F on HMI side — connects to Weintek MT HMI COM port
• Round 5-Pin (Male) on PLC side — Panasonic FP0/FP-X proprietary RS-232 port
• RS-232 serial communication
• 3-metre cable

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Weintek MT Series HMI (DB9 COM port): MT6000, MT8000 series
• Panasonic FP0, FP-X (FPΣX), FP-Σ Series PLCs with round 5-pin RS-232 port

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• HMI ↔ Panasonic FP0/FP-X PLC real-time communication
• EasyBuilder Pro HMI configured with Panasonic FP/KW RS-232 driver

6️⃣ Package Contents

• 1× Weintek MT-FP HMI-to-PLC Communication Cable, DB9F to Round 5-Pin, 3M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — not a Weintek-branded unit.
• Configure EasyBuilder Pro with Panasonic FP/KW Series communication driver.
• Baud rate and parity settings must match Panasonic PLC configuration (default 9,600 bps, 8N1).
