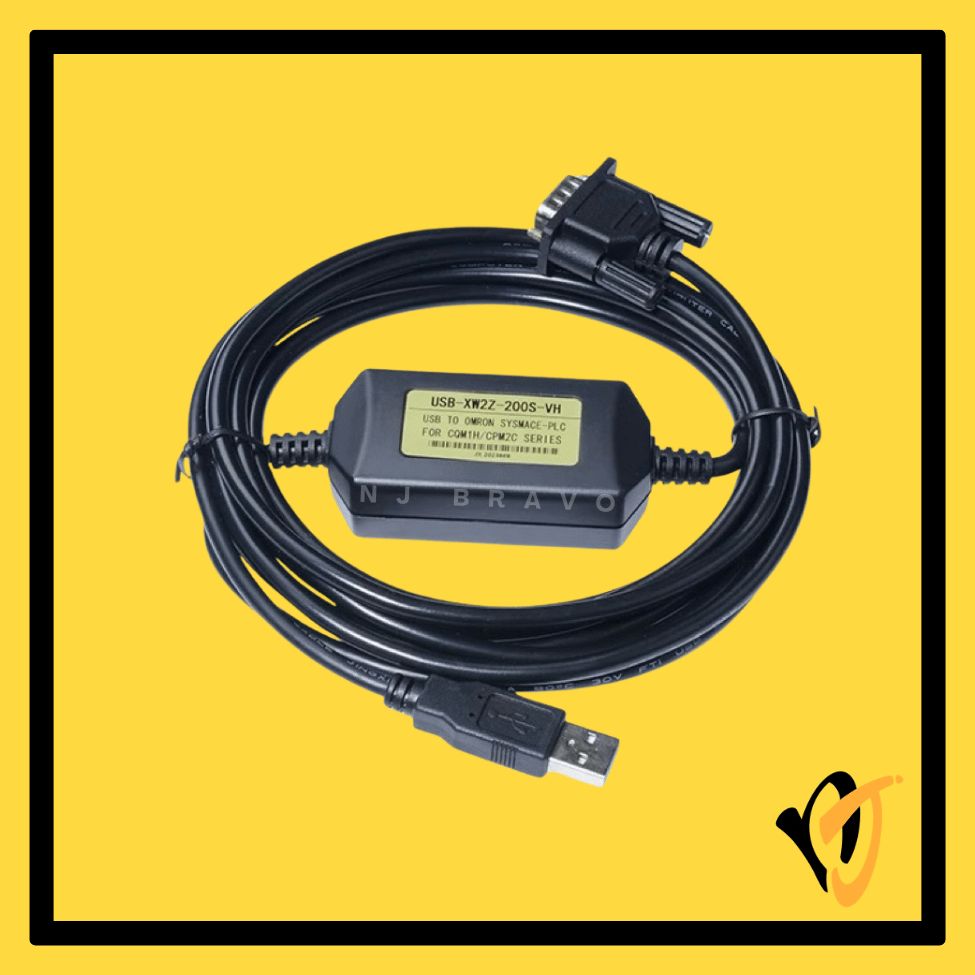

OMRON USB-XW2Z-200S-CV | USB to DB9M RS-232 PLC Programming Converter Cable — 3M

The Omron USB-XW2Z-200S-CV is a USB-to-RS232 converter programming cable for Omron PLCs. It connects via USB on the PC side and a DB9 Male on the PLC side, compatible with Omron CQM1, C200H, CS, CJ, and CPM2C Series PLCs that have a DB9 RS-232 programming port.

2️⃣ Key Features

• USB Type-A on PC side — built-in USB-to-RS232 converter; no native serial port required
• DB9 Male (9-pin D-Sub) on PLC side — connects to Omron PLC RS-232 programming port
• LED TX/RX activity indicator
• Auto-adaptive baud rate: 300 bps to 1 Mbps
• USB bus powered
• 3-metre cable

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Omron CQM1, CQM1H Series PLCs
• Omron C200HE, C200HG, C200HX, C200HS Series
• Omron CS Series, CJ Series PLCs (RS-232 port models)
• Omron CPM1, CPM1A, CPM2A, CPM2C Series
• ⚠️ Note: Does NOT support Omron C200H Series (verify with compatibility list)

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• USB-based PLC programming for Omron CS/CJ/CQM1 from modern PCs
• Program upload/download and online monitoring via CX-Programmer

6️⃣ Package Contents

• 1× Omron USB-XW2Z-200S-CV Programming Cable, USB-A to DB9M, 3M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — not an Omron-branded unit.
• Driver installation required — FT232 chipset (FTDI) or CH340 depending on variant.
• ⚠️ Does NOT support Omron C200H Series. Verify your specific PLC model compatibility before ordering.
• For CJ2M Series with square-shaped port, a different cable type is required.
