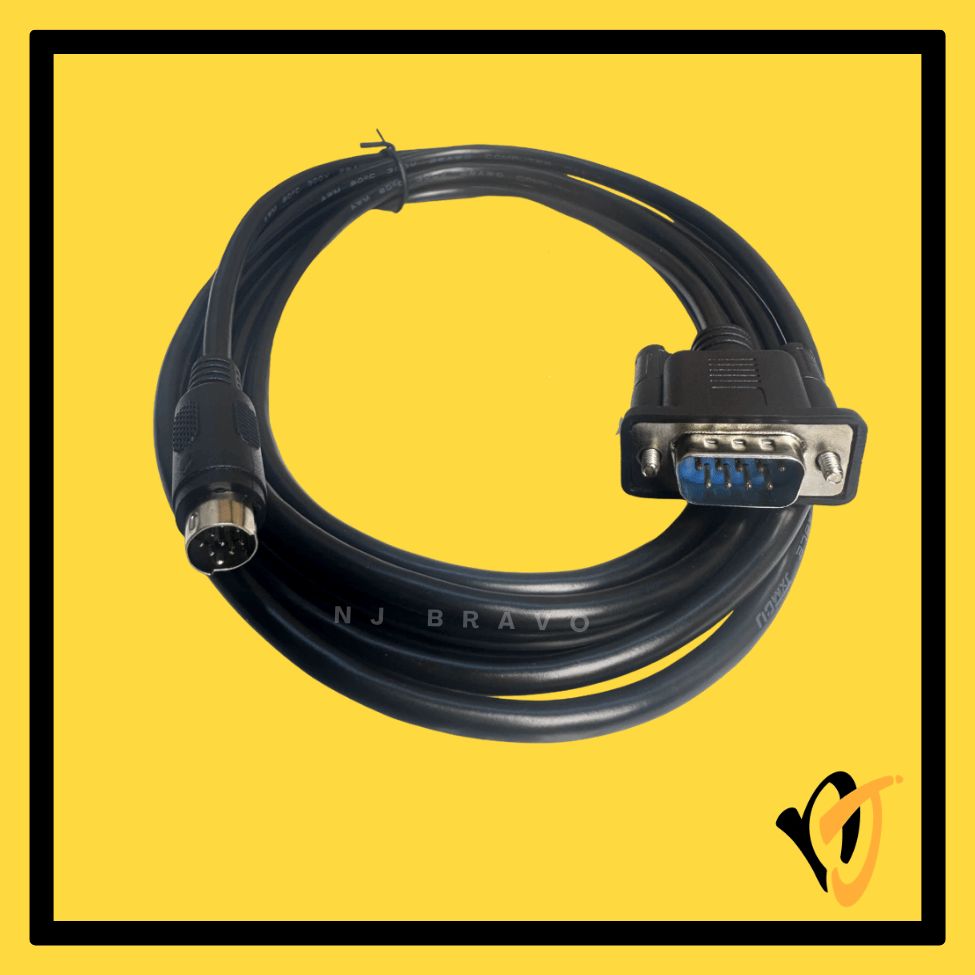

MITSUBISHI GT01-C30R4-8P | DB9M to MD8 RS-422 GOT HMI-to-PLC Communication Cable — 3M

The Mitsubishi GT01-C30R4-8P is a dedicated RS-422 communication cable for connecting Mitsubishi GOT1000 and GOT2000 Series HMI touch panels to Mitsubishi FX Series PLCs via the FX CPU's built-in RS-422 programming port (MD8). It is the standard cable for GOT-to-FX PLC direct connection.

2️⃣ Key Features

• DB9 Male (9-pin D-Sub) on HMI side — connects to GOT1000/GOT2000 HMI RS-422 communication port
• MD8 / Mini-DIN 8-Pin (Male) on PLC side — connects to Mitsubishi FX Series RS-422 programming port
• RS-422 serial protocol — standard for Mitsubishi GOT-to-FX PLC communication
• 3-metre cable — standard control panel installation length
• OEM compatible equivalent to Mitsubishi original GT01-C30R4-8P

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Mitsubishi GOT1000 Series HMI: GT1020, GT1030, GT1040, GT1045, GT1050, GT1055, GT1056, GT1150, GT1155, GT1165, GT1175 and similar
• Mitsubishi GOT2000 Series HMI: GT2103, GT2104, GT2107, GT2110, GT2112 and similar
• Mitsubishi FX Series PLCs with MD8F RS-422 port: FX0S, FX0N, FX1S, FX1N, FX2N, FX3G, FX3U, FX3GA

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• Direct GOT HMI ↔ Mitsubishi FX PLC communication link for process visualization and control
• Standard cable for GOT-to-FX RS-422 connection in GT Designer3 and GT Works3 projects

6️⃣ Package Contents

• 1× Mitsubishi GT01-C30R4-8P RS-422 HMI-to-PLC Cable, DB9M to MD8, 3M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — not a Mitsubishi-branded unit.
• RS-422 protocol — ensure GOT HMI driver is set to Mitsubishi FX Series RS-422 communication.
• Length variants available: GT01-C10R4-8P (1M), GT01-C30R4-8P (3M), GT01-C50R4-8P (5M), GT01-C100R4-8P (10M).
