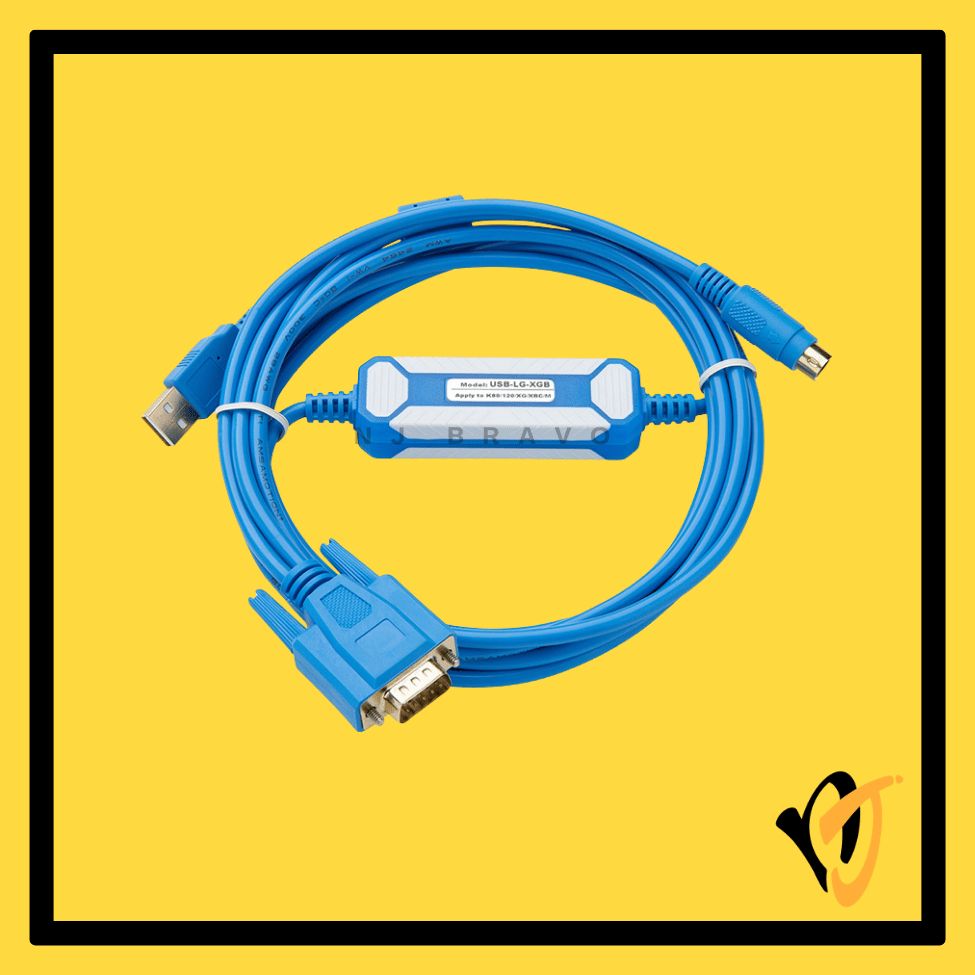

LG / LS USB-LG-XGB | USB to DB9M + Round 6-Pin Dual Connector PLC Programming Cable — 3M

The USB-LG-XGB (dual connector variant) is a USB-to-RS232 converter cable for LG/LS (LSIS) PLCs. This model features two PLC-side connectors — a DB9 Male for XGK-CPU series and a Round 6-Pin for XGB/XBC/XBM series — allowing it to serve a wider range of LG/LS PLC models. Only one connector can be used at a time.

2️⃣ Key Features

• USB Type-A on PC side — built-in USB-to-RS232 converter; no native serial port required
• Dual PLC connectors: DB9 Male (for XGK-CPU series) + Round 6-Pin (for XGB/XBC/XBM series)
• Only one PLC connector may be used at a time
• Supports baud rates 9,600 to 115,200 bps
• LED TX/RX indicator, USB bus powered
• 3-metre cable

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• LG/LS XGB Series: XGB-XBCH, XGB-DR/DC variants (Round 6-Pin end)
• LG/LS XBC, XBM Series PLCs (Round 6-Pin end)
• LG/LS XGK-CPU Series: XGK-CPUU, XGK-CPUH, XGK-CPUA (DB9M end)
• LG/LS K7M, K10S, K120S, Master-K Series (DB9M end)
• Software: KGLWIN (Master K) / XG5000 (XGB/XBC/XBM)

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• USB-based programming for LG/LS XGB/XBC/XBM PLCs (Round 6-Pin end) or XGK-CPU PLCs (DB9M end)
• Single cable covers two LG/LS PLC families

6️⃣ Package Contents

• 1× LG/LS USB-LG-XGB Dual Connector Programming Cable, USB-A to DB9M+6-Pin, 3M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — not an LS/LG-branded unit.
• Dual connector — only one PLC-side connector should be connected at any time. Do not connect both simultaneously.
• Driver installation required (CH340 or FT232 chipset depending on variant).
