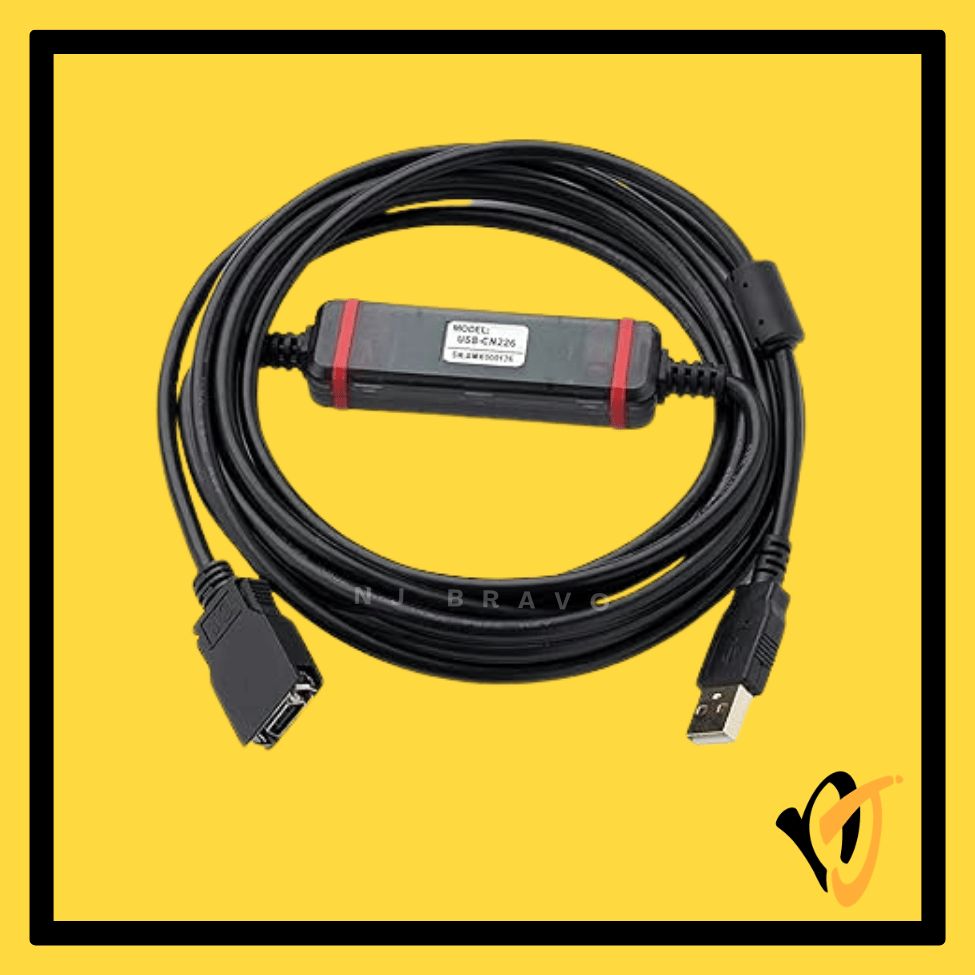

OMRON USB-CN226 (USB-CSIW-CN226) | USB to 10-Pin Oblate RS-232 PLC Programming Cable — 2.5M

The Omron USB-CN226 (also referenced as USB-CSIW-CN226) is a USB-to-RS232 converter programming cable for Omron CS, CJ, CQM1H, and CPM2C Series PLCs. It connects directly to the PLC's peripheral port (10-pin oblate connector) without needing the CS1W-CN114 adapter, simplifying wiring.

2️⃣ Key Features

• USB Type-A on PC side — built-in USB-to-RS232 converter; no native serial port required
• 10-Pin Oblate (flat, proprietary) connector on PLC side — connects directly to Omron CS/CJ peripheral port
• No CS1W-CN114 adapter needed — direct plug-in to CS/CJ/CQM1H/CPM2C peripheral port
• Auto-adaptive baud rate: 300 bps to 1 Mbps
• Dual-colour TX/RX LED indicator, USB bus powered
• 2.5-metre cable

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Omron CS Series: CS1G, CS1H and similar (peripheral port models)
• Omron CJ Series: CJ1M, CJ1G, CJ1H and similar (peripheral port models)
• Omron CQM1H Series PLCs
• Omron CPM2C Series PLCs
• ⚠️ CJ2M Series has a square-shaped port — requires a different cable type

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• USB-based programming for Omron CS/CJ/CQM1H/CPM2C PLCs from modern laptops
• Program upload/download and online monitoring via CX-Programmer

6️⃣ Package Contents

• 1× Omron USB-CN226 Programming Cable, USB-A to 10-Pin Oblate, 2.5M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — not an Omron-branded unit.
• Driver installation required (FT232 chipset).
• ⚠️ This cable is for the PERIPHERAL PORT (10-pin oblate). For Omron PLCs with a DB9 RS-232 port, use USB-XW2Z-200S-CV (CPC-PLC-2603) instead.
• ⚠️ CJ2M Series uses a square connector — this cable is NOT compatible with CJ2M.
