PLC MD8M–MD8M | Mini-DIN 8-Pin Male to Male Communication Extension Cable — 2M

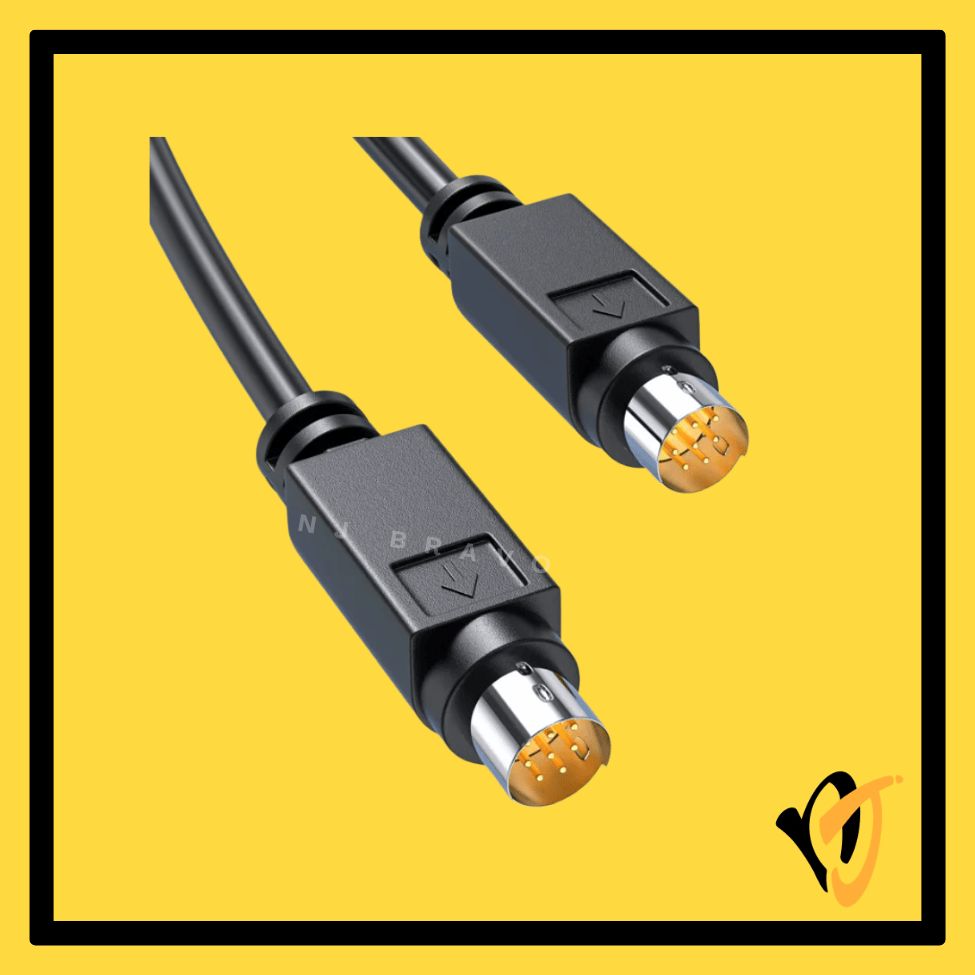

The MD8M-MD8M is a generic serial communication cable with a Mini-DIN 8-Pin Male connector on both ends. It is used as an extension or pass-through cable between two devices that each have a round MD8 port — commonly for PLC-to-HMI or PLC-to-PLC communication links where the MD8 interface is shared.

2️⃣ Key Features

• Mini-DIN 8-Pin Male (MD8M) on both ends — pure extension cable, no signal conversion
• Pure copper conductor with aluminium foil shielding for signal integrity
• 2-metre cable — suitable for short panel-to-panel or device-to-device links
• Generic/universal — compatible with any device pairing that uses MD8 round connectors

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Any two devices with a compatible MD8 round 8-pin communication port, including:
• Mitsubishi FX Series PLCs (programming / RS-422 port)
• Delta DVP Series PLCs (RS-232 programming port)
• Various HMI panels, servo drives, and industrial controllers with MD8 connectivity

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• Extend the reach of an existing MD8 cable installation
• Pass-through link between two devices both equipped with MD8 ports (e.g. PLC ↔ HMI via MD8)
• Custom wiring applications in control panels

6️⃣ Package Contents

• 1× MD8M-MD8M Serial Communication Extension Cable, 2M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• No signal conversion — this is a passive extension cable only. The source cable or adapter must provide the correct protocol (RS-232 or RS-422).
• Verify MD8 pin assignment compatibility between both connected devices before use, as pin assignments may differ between brands.
• OEM cable — no retail packaging.
