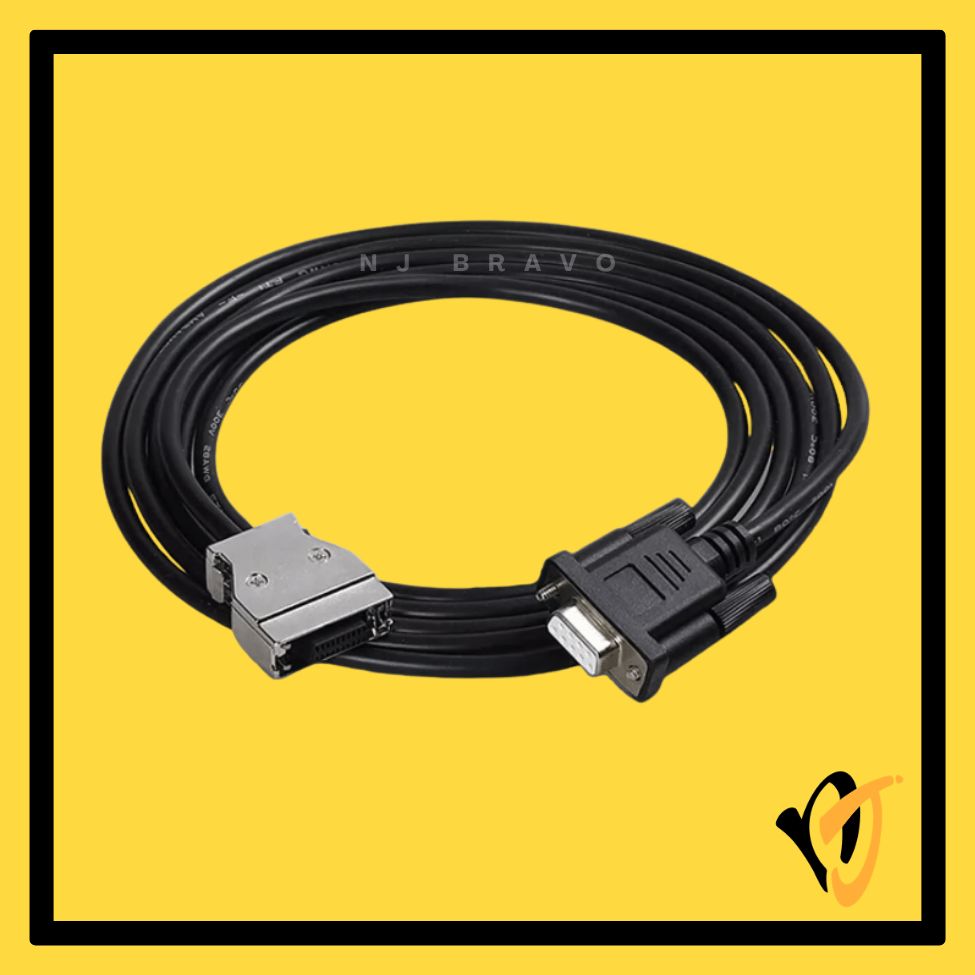

OMRON USB-CIF02 (CQM1-CIF02 USB Version) | USB to 20-Pin PLC Programming Converter Cable — 2.5M

The Omron USB-CIF02 is the USB version of the CQM1-CIF02, a USB-to-RS232 converter programming cable for connecting a PC to Omron CQM1, CPM1, CPM1A, CPM2A, C200HS, C200HX/HG/HE, and SRM1 Series PLCs via their 20-pin peripheral port. No native RS-232 port required — the built-in USB converter creates a virtual COM port.

2️⃣ Key Features

• USB Type-A on PC side — built-in USB-to-RS232 converter; no native serial port required
• 20-Pin (flat, proprietary) connector on PLC side — Omron peripheral programming port
• USB-to-RS232 conversion with LED TX/RX indicator — virtual COM port, USB bus powered
• 2.5-metre cable length

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Omron CQM1 Series PLCs (with 20-pin peripheral port)
• Omron CPM1, CPM1A, CPM2A, CPM2AH Series PLCs
• Omron C200HS, C200HX, C200HG, C200HE Series PLCs
• Omron SRM1 Series
• Use with CX-Programmer software

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• USB-based programming for Omron CQM1/CPM1A/CPM2A/C200HS from modern PCs
• Program upload/download and online diagnostics via CX-Programmer

6️⃣ Package Contents

• 1× Omron USB-CIF02 USB Programming Cable, USB-A to 20-Pin, 2.5M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — not an Omron-branded unit. Driver installation required — creates a virtual COM port (FT232 chipset).
• This is the USB version of the CQM1-CIF02. For the RS-232 DB9F version (requires native COM port), a separate cable is available.
• ⚠️ Does NOT support C200H Series. Also not compatible with CS/CJ series — for those, use USB-CN226 (CPC-PLC-08).
