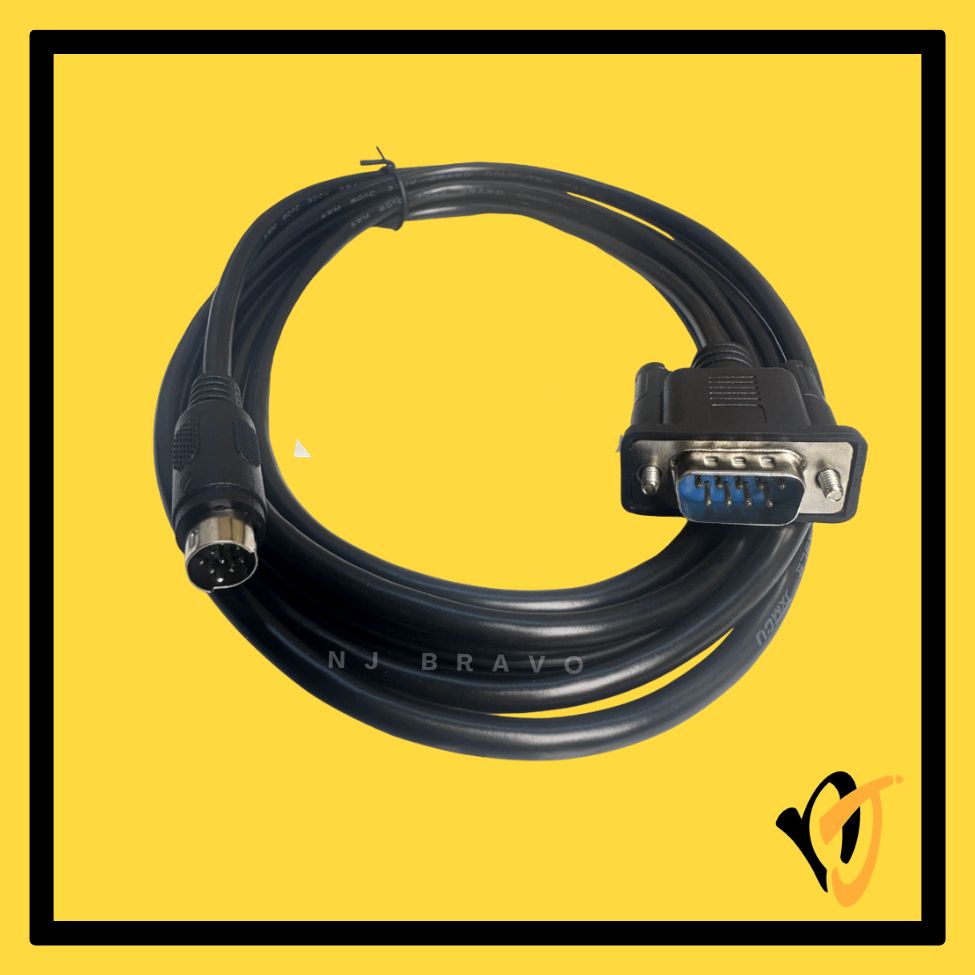

WEINTEK MT-FX | DB9M to MD8 HMI-to-PLC Communication Cable — 10M

The Weintek MT-FX (10M) is an extended-length RS-485 communication cable for connecting Weintek MT Series HMI Touch Panels to Mitsubishi FX Series PLCs. The 10-metre version is suited for large machine installations or control panels where device separation requires a longer cable run.

2️⃣ Key Features

• DB9 Male (9-pin D-Sub) on HMI side — connects to Weintek MT6000/MT8000 HMI RS-485 COM port
• MD8 / Mini-DIN 8-Pin (Male) on PLC side — Mitsubishi FX Series RS-422/485 port
• 10-metre cable — for large panel or long-distance HMI-to-PLC installations
• RS-485 protocol — standard for Mitsubishi FX HMI communication

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Weintek MT6000/MT8000 Series HMI: MT6050i, MT6070iH, MT8070iH, MT8102iE and similar
• Mitsubishi FX Series PLCs: FX0S, FX0N, FX1S, FX1N, FX2N, FX3U with MD8 port

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• Long-distance HMI ↔ Mitsubishi FX PLC link for large machines and distributed panels
• EasyBuilder Pro HMI with Mitsubishi FX RS-485 communication driver

6️⃣ Package Contents

• 1× Weintek MT-FX HMI-to-PLC Communication Cable, DB9M to MD8, 10M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — not a Weintek-branded unit.
• Configure EasyBuilder Pro with Mitsubishi FX Series RS-485 driver. Baud rate and parity must match PLC settings.
• Part of the MT-FX length family: 3M (CPC-PLC-1803), 10M (this).
