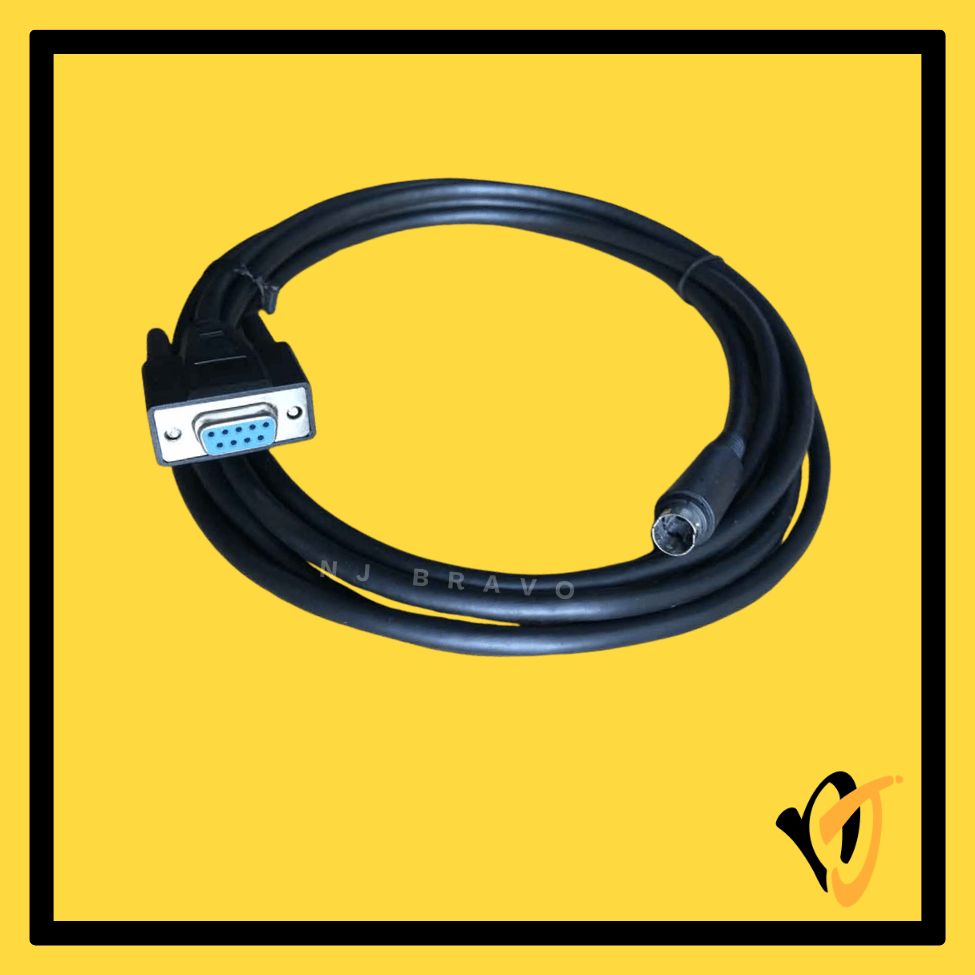

WEINTEK TK-FX | DB9F to MD8 HMI-to-PLC Communication Cable — 3M

The Weintek TK-FX (3M) is the standard-length RS-485 communication cable for connecting Weintek TK Series HMI panels (TK6070 and similar) to Mitsubishi FX Series PLCs. The 3-metre version is the most common length for standard control panel installations.

2️⃣ Key Features

• DB9 Female on HMI side — connects to Weintek TK HMI RS-232/485 COM port
• MD8 / Mini-DIN 8-Pin (Male) on PLC side — Mitsubishi FX Series RS-422/485 port
• 3-metre cable — standard control panel installation length
• RS-485 protocol

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Weintek TK Series HMI: TK6070iH, TK6070iK, TK6070iP and similar
• Mitsubishi FX Series PLCs: FX0S, FX0N, FX1S, FX1N, FX2N, FX3U

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• HMI ↔ Mitsubishi FX PLC communication for real-time process visualization
• EasyBuilder Pro HMI with Mitsubishi FX Series communication driver

6️⃣ Package Contents

• 1× Weintek TK-FX HMI-to-PLC Communication Cable, DB9 to MD8, 3M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — not a Weintek-branded unit.
• Configure EasyBuilder Pro with Mitsubishi FX Series RS-485 driver.
• Part of the TK-FX length family: 3M (this), 5M (CPC-PLC-2005).
