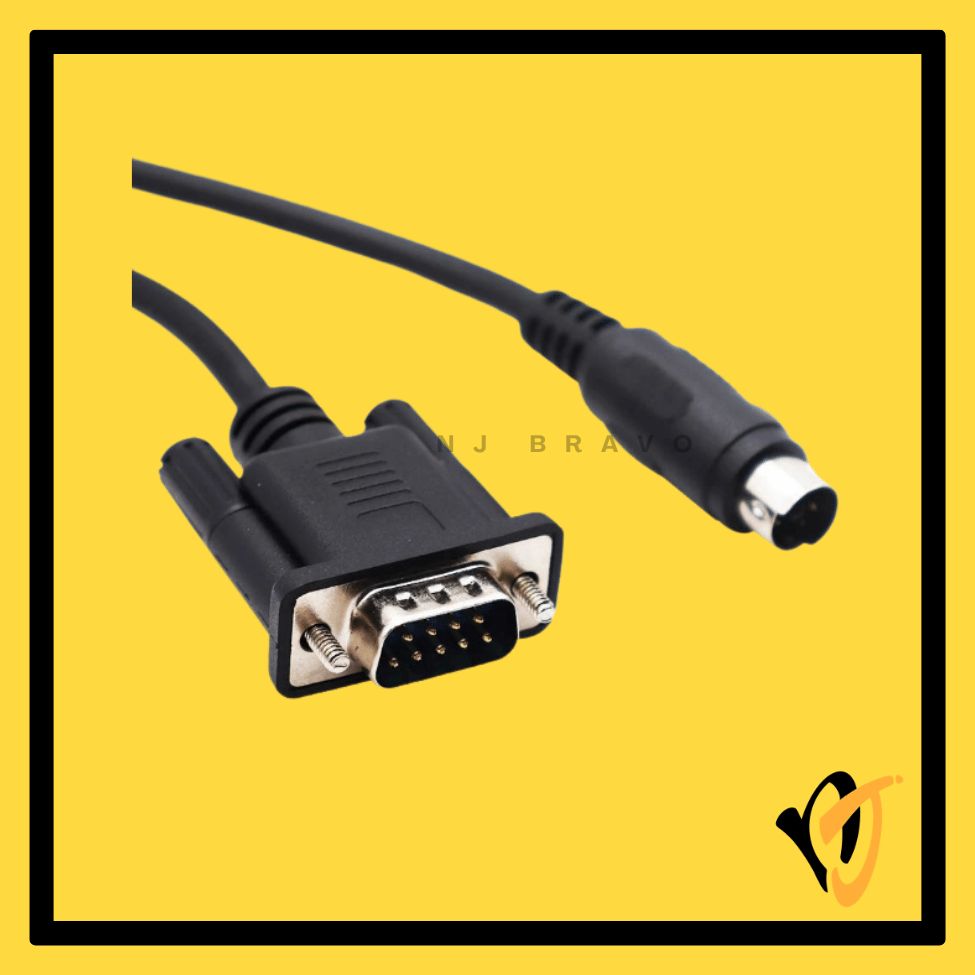

DELTA DOP-DVP | DB9M to MD8 DVP Programming & HMI Communication Cable — 3M

The Delta DOP-DVP (3M) is a dedicated RS-232 serial communication cable engineered to connect Delta DOP Series HMI Touch Panels to Delta DVP Series PLCs. Supplied as an OEM compatible unit — built to the DOP-DVP specification without branded retail packaging.

2️⃣ Key Features

• Dedicated DOP-to-DVP link — correct pinout for Delta DOP-A/DOP-B HMI COM port to DVP Slim Series PLC
• DB9 Male (9-pin D-Sub) on HMI side — mates with RS-232 COM1/COM2 port on Delta DOP panels
• MD8 / Mini-DIN 8-Pin (round, male) on PLC side — matches built-in RS-232 port on DVP Slim PLCs
• 3-metre cable length — practical reach for standard control panel installations
• RS-232 at up to 19,200 bps — compatible with Delta DVP default settings (8N1)

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Delta DOP-A Series: DOP-A57GSTD, DOP-A70THTD and similar
• Delta DOP-B Series: DOP-B03E211, DOP-B05S111, DOP-B07E515, DOP-B10E515 and similar
• Delta DVP Series PLC (MD8 RS-232 port): DVP-SS2, DVP-SV2, DVP-SA2, DVP-SE, DVP-SX2, DVP-ES2, DVP-EX2

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• HMI ↔ PLC communication for real-time process monitoring and control
• Program pass-through: use HMI to upload/download DVP PLC programs via DOPSoft or WPLSoft

6️⃣ Package Contents

• 1× Delta DOP-DVP RS-232 HMI Communication Cable, DB9M to MD8, 3M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — built to the DOP-DVP connector specification; not a Delta-branded retail unit.
• RS-232 serial only — not a USB cable. A USB-to-RS232 adapter is required for laptops without a native COM port.
• Programming software: WPLSoft / ISPSoft (DVP PLC); DOPSoft (DOP HMI) — all free from Delta.
