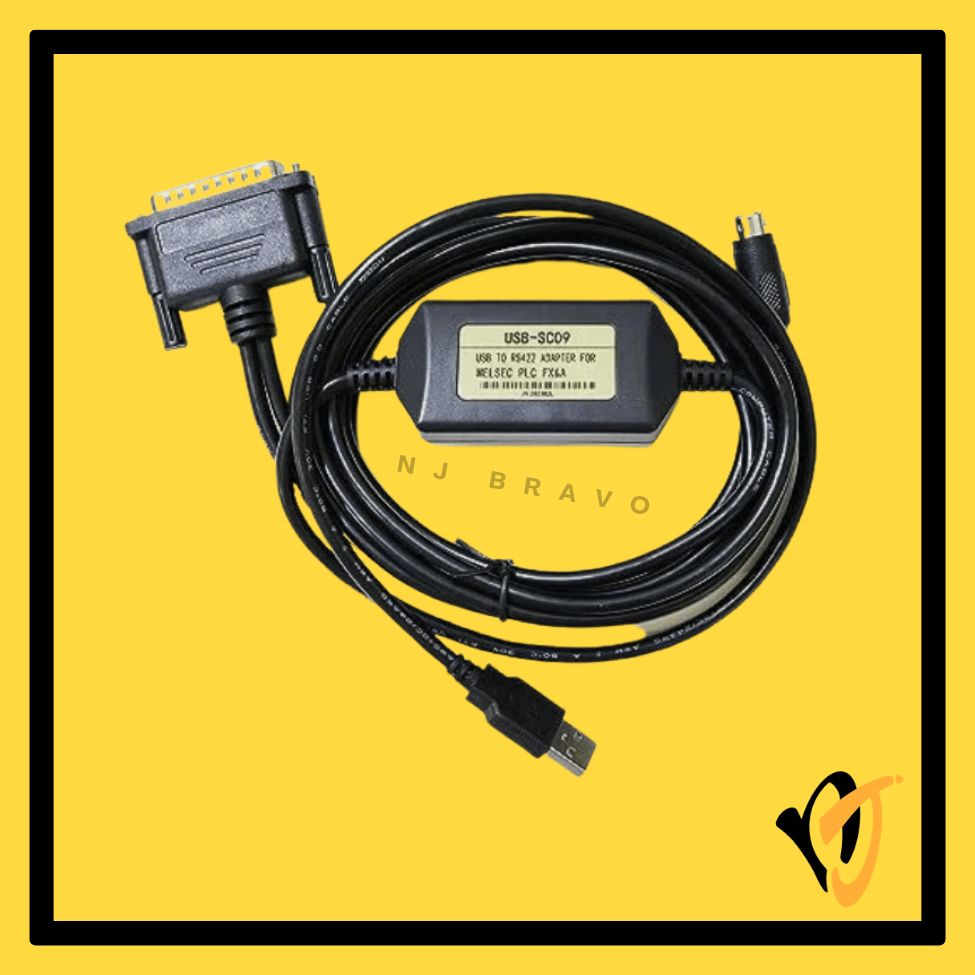

MITSUBISHI USB-SC09 | USB to RS-422 Programming Converter Cable (MD8 + DB25) — 3M

The Mitsubishi USB-SC09 is a USB-to-RS422 converter programming cable for Mitsubishi FX and A Series PLCs. It features two PLC-side connectors: a Mini-DIN 8-Pin (MD8) for FX series and a DB25 Male for A/F2 series PLCs. Both connectors share the same cable — only one may be connected at a time.

2️⃣ Key Features

• USB Type-A on PC side — built-in USB-to-RS422 converter; no native serial port needed
• Dual PLC connectors: MD8 / Mini-DIN 8-Pin for Mitsubishi FX series + DB25 Male for A/F2 series
• Only one PLC connector can be used at a time — MD8 and DB25 cannot be connected simultaneously
• Auto-adaptive baud rate: 300 bps to 1 Mbps
• Dual-colour TX/RX LED indicator — data status at a glance
• USB bus powered — no external power required
• Communication distance up to 2 km at 9,600 bps

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Mitsubishi FX Series (MD8 end): FX0, FX0N, FX0S, FX1S, FX1N, FX2N, FX3U — all with MD8F round socket
• Mitsubishi A Series / F2 Series (DB25 end): A00, A1S, F2 and similar

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• USB programming for both Mitsubishi FX and A/F2 Series PLCs from a single cable
• Use with FXGP/WIN, GPP V4.0, GX Developer V7.0+ software

6️⃣ Package Contents

• 1× Mitsubishi USB-SC09 Programming Cable, USB-A to MD8+DB25, 3M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — not a Mitsubishi-branded retail unit.
• MD8 and DB25 connectors cannot be used simultaneously — use only one at a time.
• Driver installation required for USB virtual COM port.
