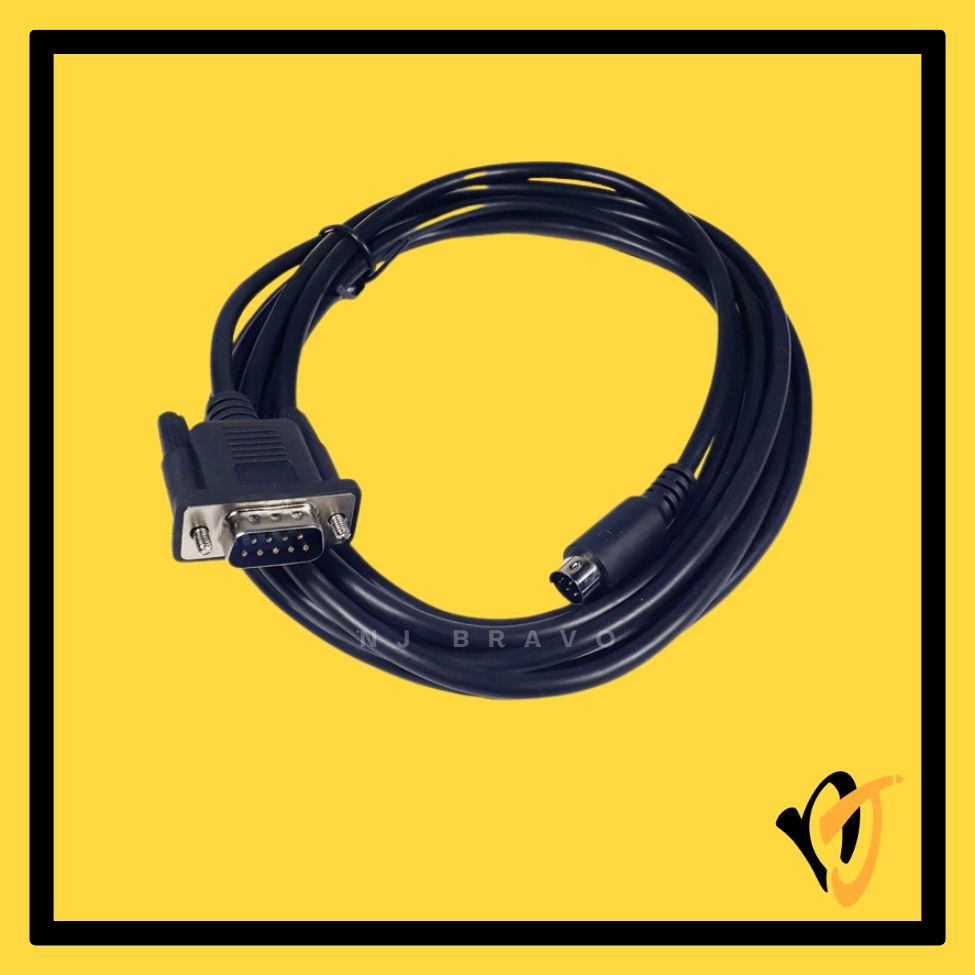

DELTA DOP-B-FX | DB9F to MD8 RS-422 HMI-to-PLC Communication Cable — 3M

The DOP-B-FX is a dedicated RS-422 communication cable for connecting a Delta DOP-B Series HMI to a Mitsubishi FX Series PLC. It enables real-time HMI control and monitoring of Mitsubishi FX PLCs via the Delta DOPSoft environment.

2️⃣ Key Features

• DB9 Female (9-pin D-Sub) on HMI side — connects to Delta DOP-B HMI RS-232/422 COM port
• MD8 / Mini-DIN 8-Pin (Male) on PLC side — connects to Mitsubishi FX Series RS-422 programming port
• RS-422 protocol — standard for Mitsubishi FX HMI communication
• 3-metre cable — standard control panel installation length
• OEM compatible — built to DOP-B-FX specification

3️⃣ Technical Specifications

4️⃣ Compatible Devices / Models

• Delta DOP-B Series HMI (DB9 COM port side)
• Mitsubishi FX Series PLCs with MD8F socket: FX1N, FX2N, FX3U and FX series variants

⚠️ Always verify the exact port type and model number on your device before ordering.

5️⃣ Typical Use Cases

• Real-time HMI process visualization and control of Mitsubishi FX PLCs via Delta DOP-B panel
• DOPSoft HMI screen linked to Mitsubishi FX PLC data registers

6️⃣ Package Contents

• 1× Delta DOP-B-FX HMI-to-PLC Communication Cable, DB9F to MD8, 3M (OEM Compatible — New)

7️⃣ Warranty

• 90-day replacement warranty
• Covers manufacturing defects; physical damage and improper installation not included

8️⃣ Additional Notes

• OEM compatible — not a Delta-branded retail unit.
• Protocol is RS-422 — different from the DOP-DVP cable which uses RS-232. Confirm your HMI communication port setting before use.
• Use Mitsubishi FX Series communication protocol in DOPSoft HMI driver settings.
