Description

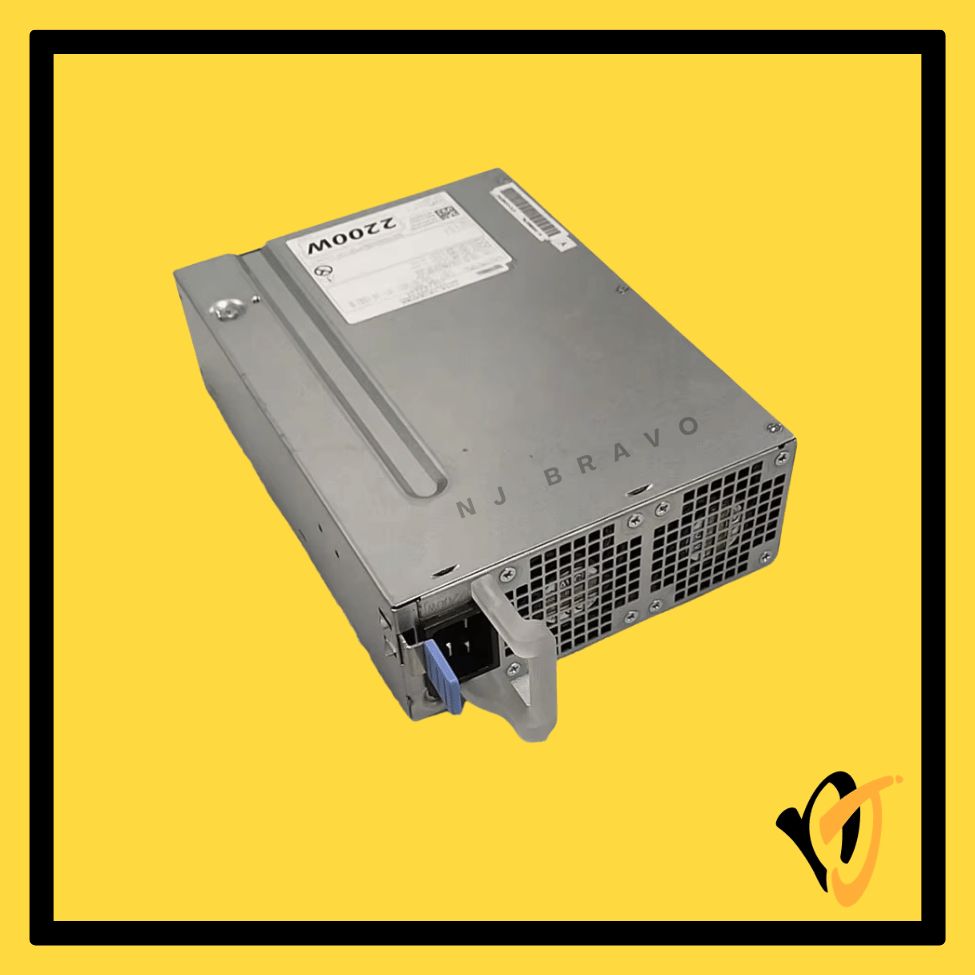

Dell 2200W Workstation Power Supply NC3TP | Precision T7960 / T7920 (Hot-Swap / Redundant)
Key Features
- Original Dell 2200W hot-swap workstation power supply for Precision T7960 and T7920
- Dell part numbers: NC3TP
- PSU model numbers: H2200EPF-00 / L2200EPF-00
- Hot-plug / hot-swap capable — PSU can be replaced without shutting down the workstation
- Supports redundant dual-PSU configuration in T7960 / T7920 chassis
- 2200W maximum output — designed for dual-socket, multi-GPU high-performance workstation workloads
- Wide input range: 100–240V AC, 50–60Hz, 15A — output scales with input voltage
- Built-in OVP / OCP / SCP protection
Technical Specifications
| Brand | Dell |
| Condition | New Original (Genuine Dell) |
| Dell PN | NC3TP |
| PSU Model | H2200EPF-00 / L2200EPF-00 |
| Wattage | 2200W MAX (240V) / 1500W (115–200V) / 1200W (100–115V) |
| Input Voltage | 100–240V AC, 50–60Hz, 15.0A |
| Output | 2200W MAX at 200–240V — scales with input voltage |
| Form Factor | Dell Precision Workstation MT — Hot-Swap |
| Connector Type | Workstation Hot-Swap Backplane Connector |
| Hot Plug | Yes — Hot-Swap / Hot-Plug Supported |
| Redundancy | N+1 Redundant PSU Support |
| Protection | OVP / OCP / SCP |
Compatible Models
Dell Precision Workstation Series:
- Dell Precision T7960
- Dell Precision T7920
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1× Dell 2200W Workstation PSU NC3TP Precision T7960 T7920 (New Original or identical DPN)
Warranty
- 3-month replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- High-current PSU — requires 240V circuit for full 2200W output. At 110V input, maximum output is limited to ~1200W.
- Hot-swap — PSU can be replaced while workstation is running (when redundant PSU is active).
- Designed exclusively for Precision T7960 / T7920 chassis — not interchangeable with other Precision models.
- Verify Dell DP/N on existing PSU label matches NC3TP before ordering.
- New original unit — genuine factory Dell unit, not refurbished or aftermarket.
