Genuine Dell 350W Non-HotSwap Server PSU HMNXX / NW98H / G9TRF for PowerEdge T330 / T340 / T350 — Se

Add to quote
SKU: PSU-DL-SV05 Category: Brand:

Description

Dell 350W Server Power Supply HMNXX / NW98H / G9TRF | PowerEdge T330 / T340 / T350 (Server Proprietary Connector)

Key Features

  • New original Dell 350W server power supply for PowerEdge T330 / T340 / T350 tower servers
  • Dell part numbers: HMNXX / NW98H / G9TRF — same physical unit, interchangeable DPN
  • PSU model numbers: AC350E-S0 / D350E-S0
  • Dimensions: 249 × 87 × 81 mm — Dell tower server form factor

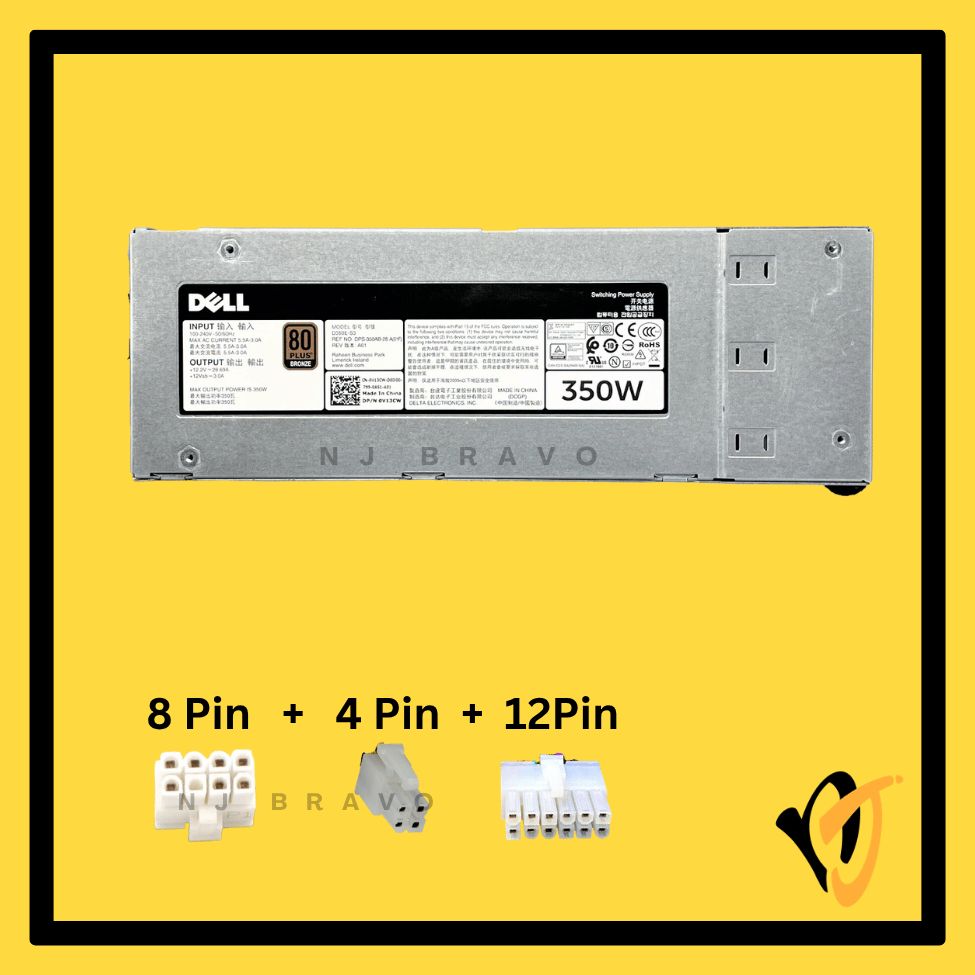

  • Connector layout: 8-Pin (main) + 12-Pin (backplane) + 4-Pin +12V + 2-Pin MB — Dell server proprietary
  • 350W 80 Plus Bronze certified output for PowerEdge mid-range tower server workloads
  • Wide input range: 100–240V AC, 50–60Hz — compatible with MY/SG 240V supply
  • Built-in OVP / OCP / SCP protection

Technical Specifications

Brand Dell
Condition New Original (Genuine Dell)
Dell PN HMNXX / NW98H / G9TRF
PSU Model AC350E-S0 / D350E-S0
Wattage 350W MAX (80 Plus Bronze)
Input Voltage 100–240V AC, 50–60Hz
Output 350W MAX continuous output
Form Factor Dell Tower Server (249 × 87 × 81 mm) — Non-Hot-Swap (Fixed)
Connector Type 8-Pin + 12-Pin BP + 4-Pin +12V + 2-Pin MB (Server Proprietary)
Hot Plug No
Protection OVP / OCP / SCP

Compatible Models

Dell PowerEdge Server Series:

  • Dell PowerEdge T330
  • Dell PowerEdge T340
  • Dell PowerEdge T350
!

Disclaimer

Always verify the part number / model number on your existing PSU label before purchasing.

If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.

Package Contents

  • 1× Dell 350W Server PSU HMNXX NW98H G9TRF PowerEdge T330 T340 T350 (New Original or identical DPN)

Warranty

  • 3-month replacement warranty
  • Covers manufacturing defects; physical damage and improper installation not included

Additional Notes

  • Dell server proprietary connector — NOT compatible with standard ATX PSUs or desktop chassis.
  • Connector revision note: NW98H and G9TRF are also listed as T340 Gen14 specific. Verify your existing PSU DP/N label matches before ordering.
  • Verify Dell DP/N on existing PSU label matches HMNXX, NW98H, or G9TRF before ordering.
  • New original unit — genuine factory Dell unit, not refurbished or aftermarket.
