Description

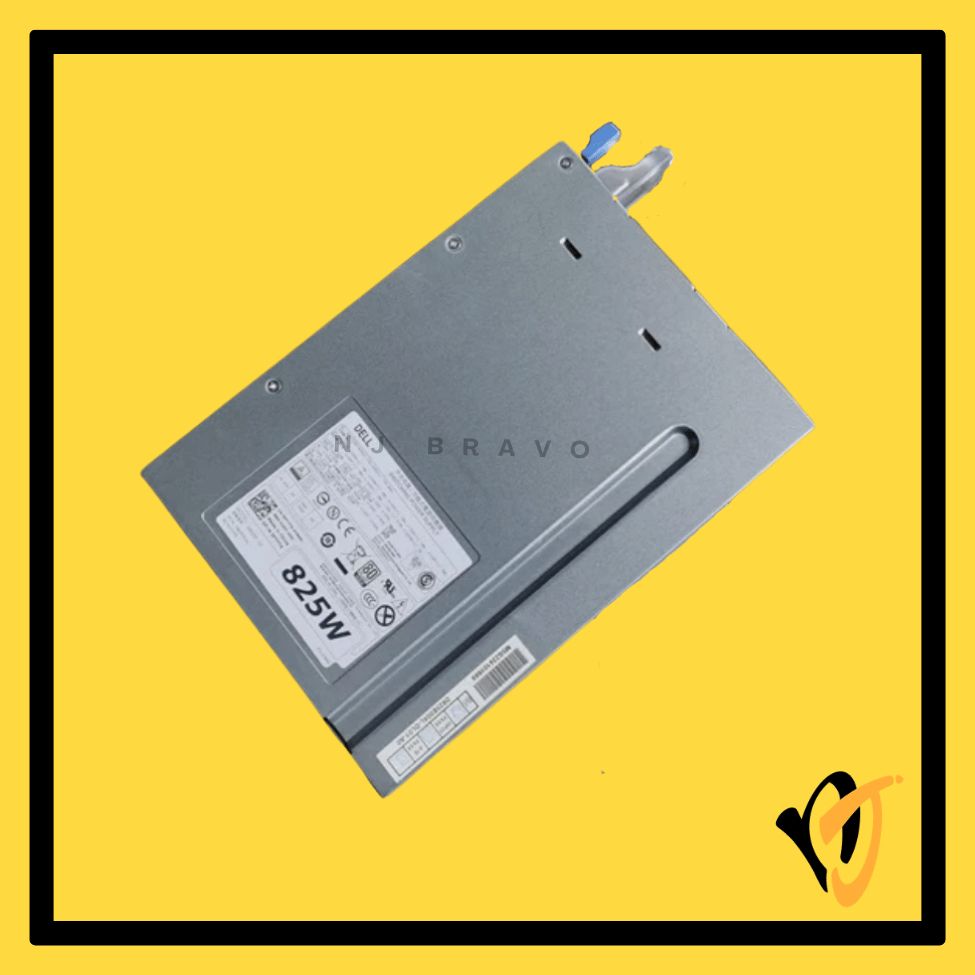

Dell 825W Workstation Power Supply FT7T6 | Precision T5810 / T7810 (Hot-Swap / Redundant)
Key Features
- New original Dell 825W hot-swap workstation power supply for Precision T5810 and T7810
- Dell part numbers: FT7T6
- PSU model numbers: H825EF-02 / D825EF-02
- Hot-plug / hot-swap capable — PSU can be replaced without shutting down the workstation
- Supports redundant dual-PSU configuration in T5810 / T7810 chassis
- 825W 80 Plus Gold output — highest standard wattage for T5810 / T7810 platform
- Wide input range: 100–240V AC, 50–60Hz — compatible with MY/SG 240V supply
- Built-in OVP / OCP / SCP protection
Technical Specifications
| Brand | Dell |
| Condition | New Original (Genuine Dell) |
| Dell PN | FT7T6 |
| PSU Model | H825EF-02 / D825EF-02 |
| Wattage | 825W MAX (80 Plus Gold) |
| Input Voltage | 100–240V AC, 50–60Hz |
| Output | 825W MAX continuous output |
| Form Factor | Dell Precision Workstation MT — Hot-Swap |
| Connector Type | Workstation Hot-Swap Backplane Connector |
| Hot Plug | Yes — Hot-Swap / Hot-Plug Supported |
| Redundancy | N+1 Redundant PSU Support |
| Protection | OVP / OCP / SCP |
Compatible Models
Dell Precision Workstation Series:
- Dell Precision T5810
- Dell Precision T7810
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1× Dell 825W Workstation PSU FT7T6 Precision T5810 T7810 (New Original or identical DPN)
Warranty
- 3-month replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- Hot-swap — PSU can be removed and replaced while workstation is powered on (when redundant PSU is active).
- NOT compatible with Precision T3600, T3610, T5600, or T5610 — those use a different PSU chassis.
- Verify Dell DP/N on existing PSU label matches FT7T6 before ordering.
- New original unit — genuine factory Dell unit, not refurbished or aftermarket.
