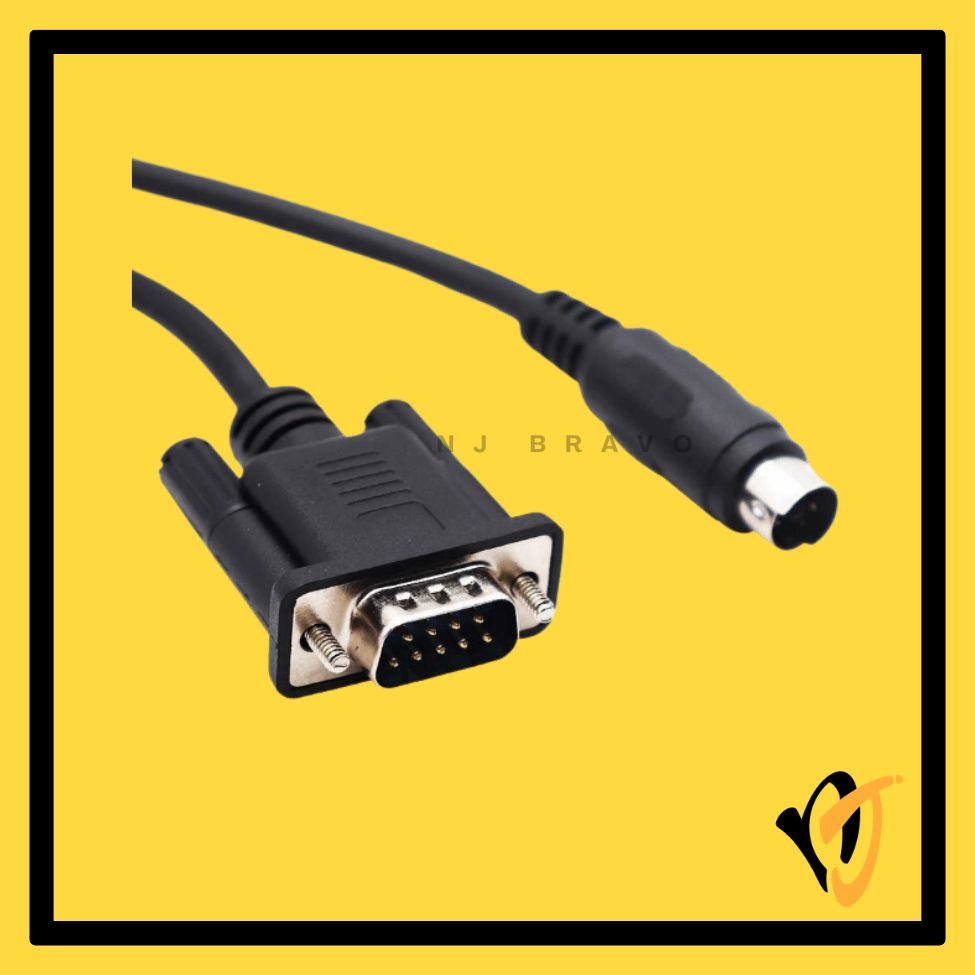

DELTA DOP-DVP | DB9M to MD8 DVP Programming & HMI Communication Cable — 3M
The Delta DOP-DVP (3M) is a dedicated RS-232 serial communication cable engineered to connect Delta DOP Series HMI Touch Panels to Delta DVP Series PLCs. Supplied as an OEM compatible unit — built to the DOP-DVP specification without branded retail packaging.
Key Features
- Dedicated DOP-to-DVP link — correct pinout for Delta DOP-A/DOP-B HMI COM port to DVP Slim Series PLC
- DB9 Male (9-pin D-Sub) on HMI side — mates with RS-232 COM1/COM2 port on Delta DOP panels
- MD8 / Mini-DIN 8-Pin (round, male) on PLC side — matches built-in RS-232 port on DVP Slim PLCs
- 3-metre cable length — practical reach for standard control panel installations
- RS-232 at up to 19,200 bps — compatible with Delta DVP default settings (8N1)
Technical Specifications
| Cable Model | DOP-DVP |
| Cable Length | 3 Metres (3M) |
| Interface — HMI Side | DB9 Male (9-pin D-Sub) |
| Interface — PLC Side | MD8 / Mini-DIN 8-Pin (Round, Male) |
| Protocol | RS-232 Serial |
| Baud Rate | Up to 19,200 bps |
| Data Format | 8 Data Bits, No Parity, 1 Stop Bit (8N1) |
| Condition | OEM Compatible — New (no retail box) |
Compatible Models
- Delta DOP-A Series: DOP-A57GSTD, DOP-A70THTD and similar
- Delta DOP-B Series: DOP-B03E211, DOP-B05S111, DOP-B07E515, DOP-B10E515 and similar
- Delta DVP Series PLC (MD8 RS-232 port): DVP-SS2, DVP-SV2, DVP-SA2, DVP-SE, DVP-SX2, DVP-ES2, DVP-EX2
!
Disclaimer
Always verify the exact port type and model number on your device before ordering.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Typical Use Cases
- HMI ↔ PLC communication for real-time process monitoring and control
- Program pass-through: use HMI to upload/download DVP PLC programs via DOPSoft or WPLSoft
Package Contents
- 1× Delta DOP-DVP RS-232 HMI Communication Cable, DB9M to MD8, 3M (OEM Compatible — New)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- OEM compatible — built to the DOP-DVP connector specification; not a Delta-branded retail unit.
- RS-232 serial only — not a USB cable. A USB-to-RS232 adapter is required for laptops without a native COM port.
- Programming software: WPLSoft / ISPSoft (DVP PLC); DOPSoft (DOP HMI) — all free from Delta.
