Description

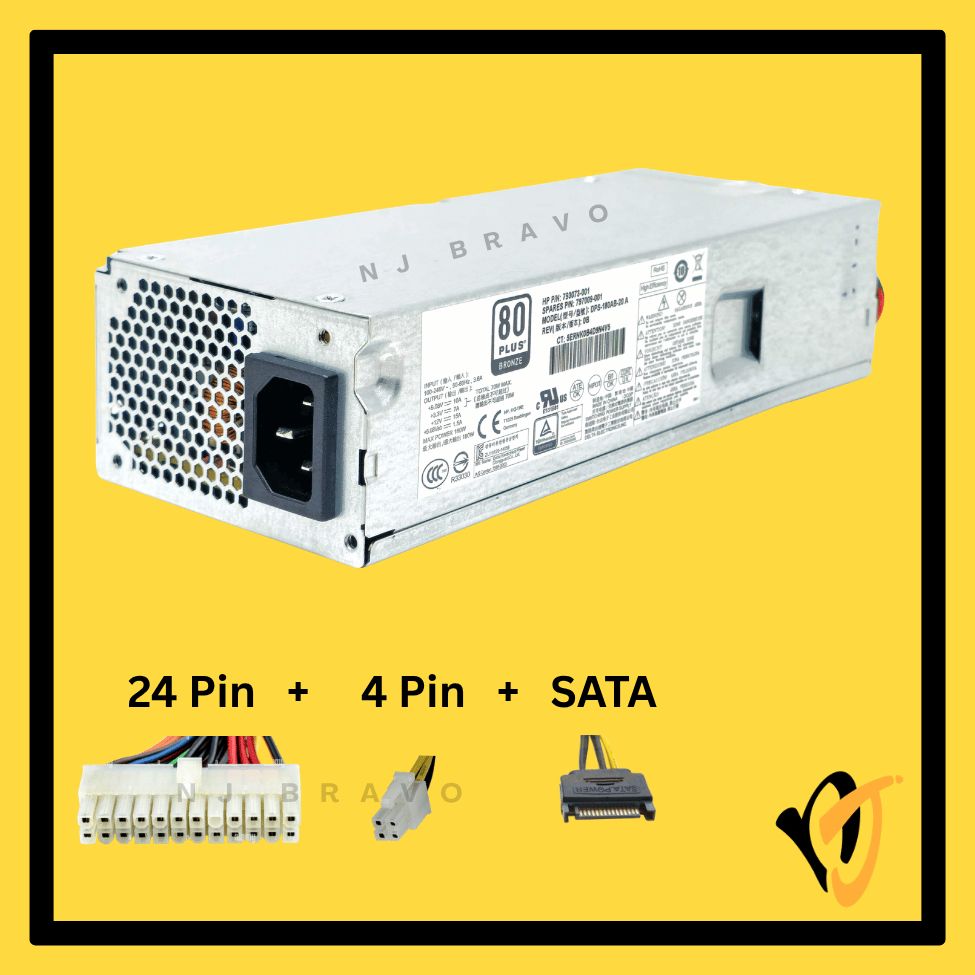

HP 220W Power Supply Unit 633196 | New Original HP PSU for Pavilion Slimline S5 Series, TouchSmart 310 (24 + 4 Pin + SATA)
Key Features
New original HP 220W power supply unit — factory genuine, not refurbished
Direct HP PSU replacement for HP Pavilion Slimline S5 series and TouchSmart 310-1205la desktop
Cross-compatible HP spare numbers: 633193-001 / 633195-001 / 633196-001
Compatible PSU model equivalents: PCA222 / PCA322 / FH-ZD221MGR / PS-6221-7 / PS-6221-9
Stable 220W output for HP Slimline consumer desktop performance
Built-in overload, over-voltage, and short-circuit protection (OVP / OCP / SCP)
Standard 24-Pin ATX + 4-Pin CPU + SATA x2 connector layout
Compact SFF form factor designed for slim HP Pavilion chassis
Technical Specifications
|
Brand |
HP |
|
Condition |
New Original (Genuine HP) |
|
Part Number |
633196-001 |
|
OEM / Spare No. |
633193-001 / 633195-001 |
|
Compatible PSU Models |
PCA222 / PCA322 / FH-ZD221MGR / PS-6221-7 / PS-6221-9 / D10-220P1A / DPS-220AB-6 |
|
Wattage |
220W MAX |
|
Input Voltage |
100–127V~6A / 200–240V~3A, 50–60Hz |
|
Output |
220W MAX continuous output |
|
Form Factor |
HP Slimline SFF |
|
Connector Type |
24-Pin ATX + 4-Pin CPU + SATA x2 |
|
Hot Plug |
No |
|
Protection |
OVP / OCP / SCP |
Compatible Models
HP Pavilion Slimline S5 Series:
HP Pavilion Slimline S5-1002la / S5-1010 / S5-1014 / S5-1015T
HP Pavilion Slimline S5-1020 / S5-1024 / S5-1070T
HP Pavilion Slimline S5-1110d / S5-1114 / S5-1125la
HP Pavilion Slimline S5-1200Z / S5-1214 / S5-1225la
HP Pavilion Slimline S5-1400T / S5-1554
HP TouchSmart Series:
HP TouchSmart 310-1205la Desktop PC
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
1× HP 220W PSU 633196 Pavilion Slimline S5 TouchSmart 310 24+4P SATA (New Original)
Warranty
90-day replacement warranty
Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- Designed for HP Pavilion Slimline consumer desktop series — not interchangeable with ProDesk/EliteDesk business PSUs.
- Non-hot-plug PSU — system must be fully powered off before replacement.
- Always verify spare number 633193/633195/633196 on your existing PSU label before ordering.
- New original unit — genuine factory HP unit, not refurbished or aftermarket.
