Description

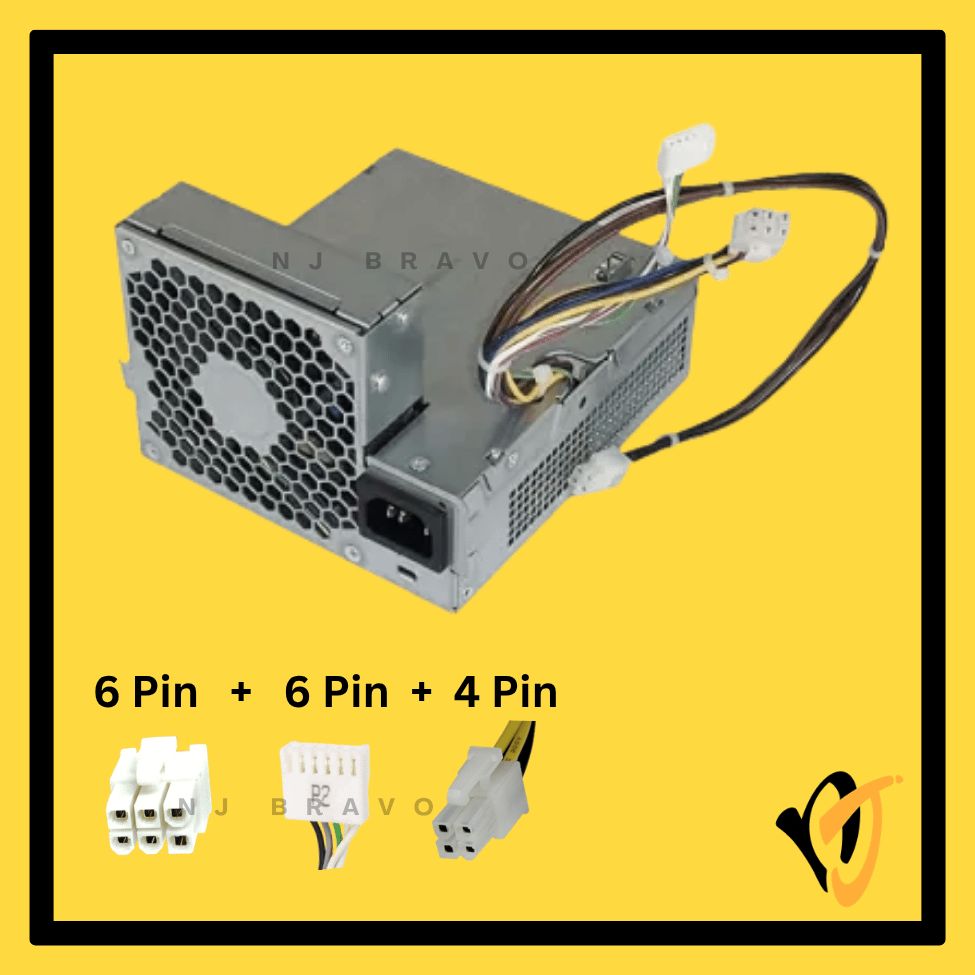

HP 240W Power Supply Unit 611482 | New Original HP PSU for Compaq 6000 / 6200 / 6300 / 8000 / 8100 / 8200 / 8300 Pro SFF — L-Shape (6 + 6 + 4 Pin)
Key Features
New original HP 240W power supply unit — factory genuine, not refurbished
Direct HP PSU replacement for HP Compaq 6000/6005/6200/6300/8000/8100/8200/8300 Pro SFF series
Cross-compatible HP spare numbers: 611481-001 / 611482-001 / 613762-001
Compatible PSU model equivalents: DPS-240RB / PS-4241-9HB / HP-D2402A0 / PC8019
Distinctive L-shape form factor — specific to HP Compaq SFF chassis; not standard rectangular PSU
Stable 240W continuous output for reliable HP Compaq SFF desktop performance
Built-in overload, over-voltage, and short-circuit protection (OVP / OCP / SCP)
HP proprietary 6-Pin + 6-Pin + 4-Pin connector configuration (L-shape body)
Technical Specifications
|
Brand |
HP / Compaq |
|
Condition |
New Original (Genuine HP) |
|
Part Number |
611482-001 |
|
OEM / Spare No. |
611481-001 / 613762-001 |
|
Compatible PSU Models |
DPS-240RB / PS-4241-9HB / HP-D2402A0 / PC8019 |
|
Wattage |
240W MAX |
|
Input Voltage |
100–240V AC, 50–60Hz |
|
Output |
240W MAX continuous output |
|
Form Factor |
HP Compaq Proprietary SFF (L-Shape) |
|
Connector Type |
6-Pin + 6-Pin + 4-Pin (6+6+4P) — L-Shape body |
|
Hot Plug |
No |
|
Protection |
OVP / OCP / SCP |
Compatible Models
HP Compaq Pro SFF Series:
HP Compaq 6000 Pro SFF
HP Compaq 6005 Pro SFF
HP Compaq 6200 Pro SFF
HP Compaq 6300 Pro SFF
HP Compaq 8000 Elite SFF
HP Compaq 8100 Elite SFF
HP Compaq 8200 Elite SFF
HP Compaq 8300 Elite SFF
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
1× HP Compaq 240W PSU 611482 L-Shape 6000 6200 6300 8000 8200 8300 SFF (New Original)
Warranty
90-day replacement warranty
Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- L-shape body design — unique to HP Compaq SFF chassis. NOT interchangeable with standard rectangular PSUs or other HP SFF PSU series.
- Non-hot-plug PSU — system must be fully powered off before replacement.
- Always physically compare the L-shape connector layout and dimensions to your existing PSU before ordering.
- New original unit — genuine factory HP unit, not refurbished or aftermarket.
