Description

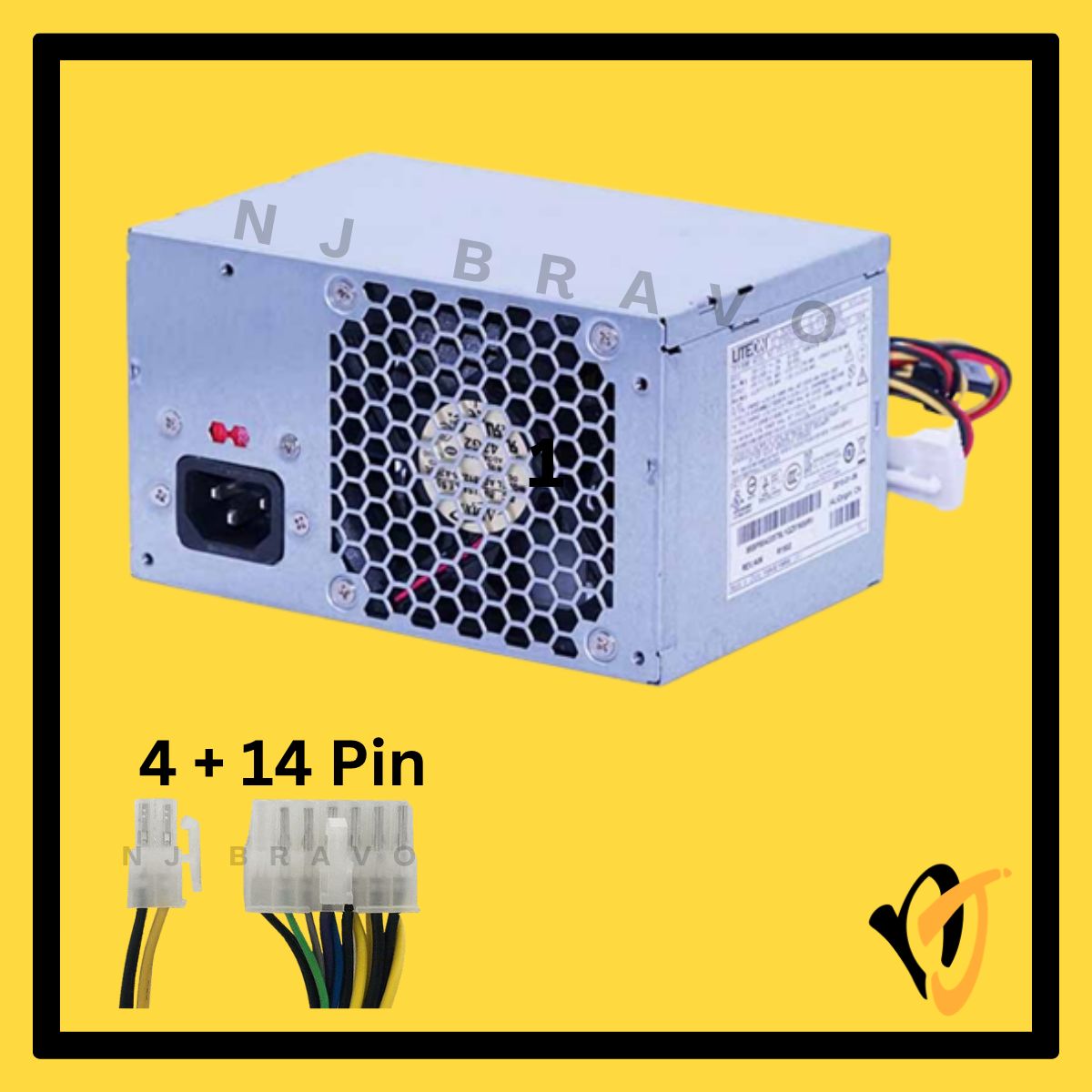

Lenovo 180W Power Supply HK280-23FP | ThinkCentre M73 / M83 / H530 / E73 SFF (14 + 4 Pin)
Key Features
- New original Lenovo 180W power supply for ThinkCentre H530 / E73 / M73 / M83 SFF series
- Model: HK280-23FP – Lenovo proprietary Huntkey 14-pin SFF PSU
- Compatible FRU / PN: 54Y8884 / PCB037 / HK280-25FP
- Lenovo proprietary 14-Pin main + 4-Pin CPU connector (14+4P)
- SFF form factor (150 x 100 x 85 mm)
- Stable 180W output for ThinkCentre SFF standard desktop workloads
- Built-in OVP / OCP / SCP protection
- 14-Pin proprietary connector – same family as PS-4241-02 / PCB020 but different generation
Technical Specifications
| Brand | Lenovo OEM (Huntkey) |
| Condition | New Original |
| Model Number | HK280-23FP |
| FRU / PN | 54Y8884 / PCB037 / HK280-25FP / HK280-23FP |
| Wattage | 180W MAX |
| Input Voltage | 100-240V AC, 50-60Hz |
| Output | 180W MAX continuous output |
| Form Factor | Lenovo SFF (150 x 100 x 85 mm) |
| Connector Type | 14-Pin + 4-Pin CPU (14+4P) |
| Hot Plug | No |
| Protection | OVP / OCP / SCP |
Compatible Models
Lenovo ThinkCentre SFF Series:
- Lenovo ThinkCentre H530 / E73 SFF
- Lenovo ThinkCentre M73 / M83 SFF (check FRU)
- Lenovo Q85 / Q87 / Q75 SFF
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1x Lenovo 180W Power Supply HK280-23FP (New Original)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- 14-Pin proprietary connector – specific to Lenovo H530 / E73 / Q-series generation ThinkCentre.
- Verify FRU/PN on existing PSU label matches HK280-23FP or PCB037 before ordering.
- New original unit – not refurbished or aftermarket.
