Description

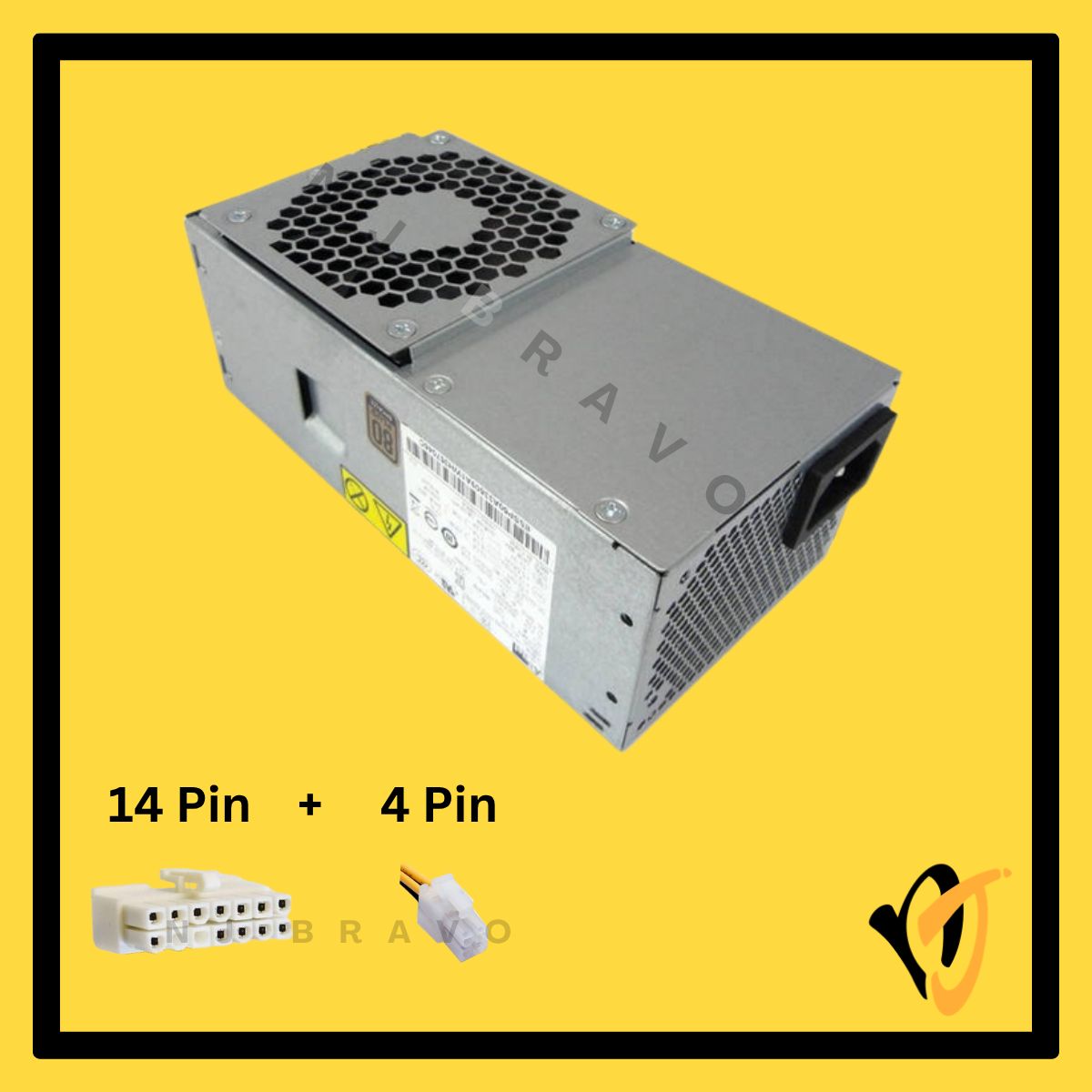

Lenovo 240W Power Supply PS-4241-02 / PCB020 | ThinkCentre M73 / M78 / M82 / M83 / M92 / M93 / ThinkStation E31 SFF (14 + 4 Pin)
Key Features
- New original Lenovo 240W power supply for ThinkCentre M73 / M78 / M82 / M83 / M92 / M93 SFF
- Part numbers: PS-4241-02 (54Y8878) / PCB020 (FRU: 54Y8897)
- Cross-compatible models: FSP240-40SBV / HK340-72FP / PS-4241-01 / PS-4241-09
- Lenovo proprietary 14-Pin main + 4-Pin CPU connector (14+4P) – ThinkCentre SFF proprietary
- SFF form factor (175 x 84 x 66 mm)
- Stable 240W output for ThinkCentre SFF business desktop workloads
- Built-in OVP / OCP / SCP protection
- 14-Pin proprietary connector – different from HP/Dell SFF; not interchangeable
Technical Specifications
| Brand | Lenovo OEM |
| Condition | New Original |
| Part Number | PS-4241-02 (54Y8878) / PCB020 (FRU: 54Y8897) |
| Cross-Compatible | FSP240-40SBV / HK340-72FP / PS-4241-01 / PS-4241-09 |
| Wattage | 240W MAX |
| Input Voltage | 100-240V AC, 50-60Hz |
| Output | 240W MAX continuous output |
| Form Factor | Lenovo SFF (175 x 84 x 66 mm) |
| Connector Type | 14-Pin + 4-Pin CPU (14+4P) |
| Hot Plug | No |
| Protection | OVP / OCP / SCP |
Compatible Models
Lenovo ThinkCentre SFF Series:
- Lenovo ThinkCentre M73 / M78 / M82 / M83 SFF
- Lenovo ThinkCentre M92 / M92p / M93 / M93p SFF
- Lenovo ThinkStation E31 SFF
- Lenovo Edge 92 / 93
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1x Lenovo 240W Power Supply PS-4241-02 / PCB020 (New Original)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- 14-Pin proprietary connector (different from TFX 10-pin family) – specific to this ThinkCentre generation.
- Verify FRU/PN on existing PSU matches 54Y8878 / 54Y8897 / PS-4241-02 / PCB020 before ordering.
- New original unit – not refurbished or aftermarket.
