Description

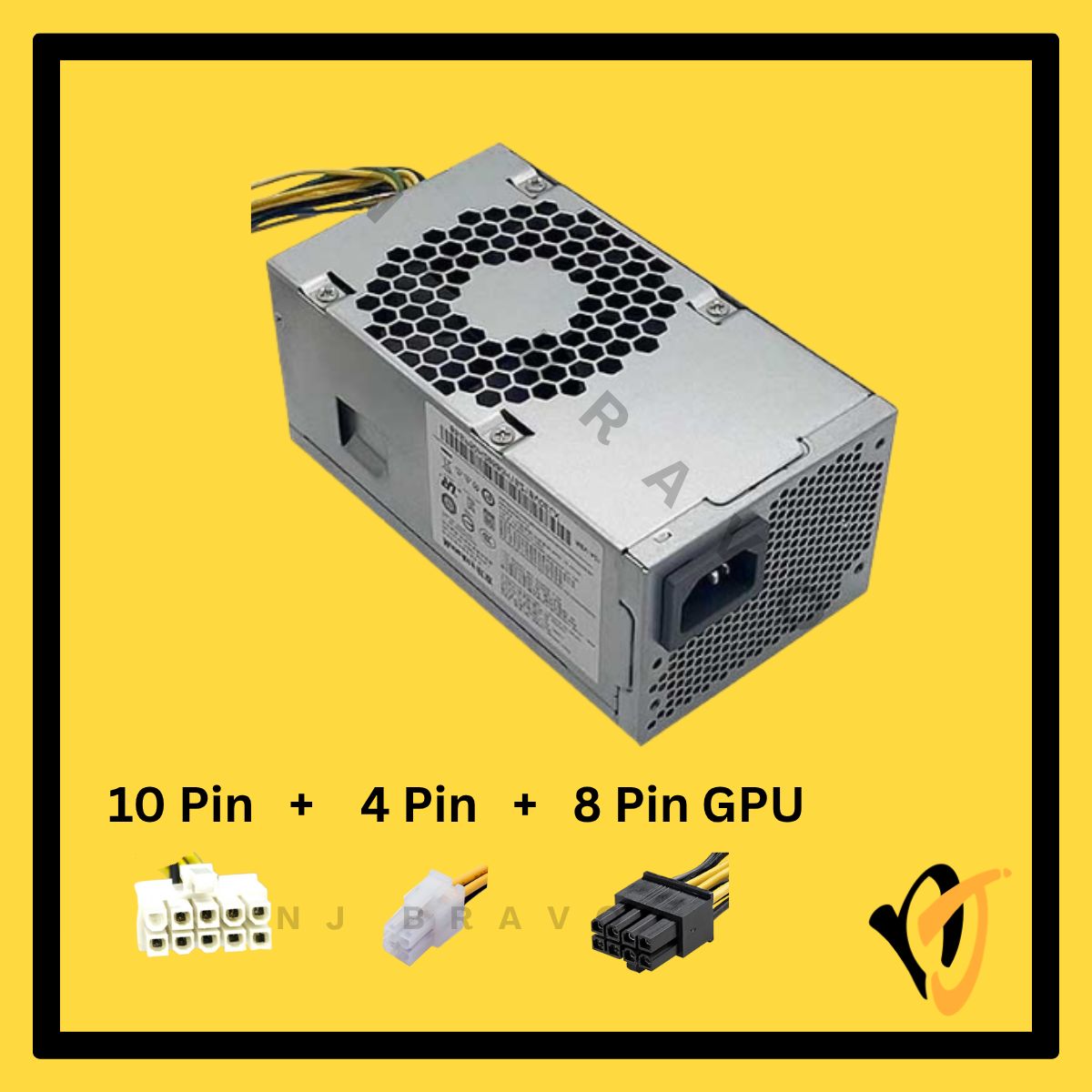

Lenovo 500W Power Supply FSP500-20TGBAB | ThinkCentre M310 / M410 / M415 / M510 / M610 TFX (10 + 4 + 8 Pin) – FSP
Key Features
- New original Lenovo / FSP 500W TFX power supply – highest wattage Lenovo TFX SFF unit
- Model: FSP500-20TGBAB – FSP OEM TFX PSU for Lenovo
- Compatible FRU / PN: SP50H29603 / PCK014 family
- Lenovo proprietary 10-Pin + 4-Pin CPU + 8-Pin PCIe connector (10+4+8P)
- TFX form factor (150 x 65 x 82 mm)
- 500W for the most demanding GPU + multi-drive ThinkCentre SFF/Tower configurations
- Built-in OVP / OCP / SCP protection
- FSP brand – known for high efficiency and reliability in OEM server/desktop applications
Technical Specifications
| Brand | Lenovo OEM (FSP) |
| Condition | New Original |
| Model Number | FSP500-20TGBAB |
| Wattage | 500W MAX |
| Input Voltage | 100-240V AC, 50-60Hz |
| Output | 500W MAX continuous output |
| Form Factor | Lenovo TFX (150 x 65 x 82 mm) |
| Connector Type | 10-Pin + 4-Pin CPU + 8-Pin PCIe (10+4+8P) |
| Hot Plug | No |
| Protection | OVP / OCP / SCP |
Compatible Models
Lenovo ThinkCentre SFF / Tower TFX Series:
- Lenovo ThinkCentre M310 / M410 / M415 SFF
- Lenovo ThinkCentre M510 / M610 SFF
- Lenovo Erazer D215 Desktop
- Lenovo models with FSP500-20TGBAB specification
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1x Lenovo 500W Power Supply FSP500-20TGBAB (New Original)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- 500W – highest wattage available in standard Lenovo TFX form factor. For heavily loaded desktop configurations.
- Same 10+4+8P connector family as PCJ007 / PCK014.
- Verify your system supports 500W PSU before ordering – check Lenovo hardware maintenance manual for max wattage support.
- New original unit – not refurbished or aftermarket.
