Description

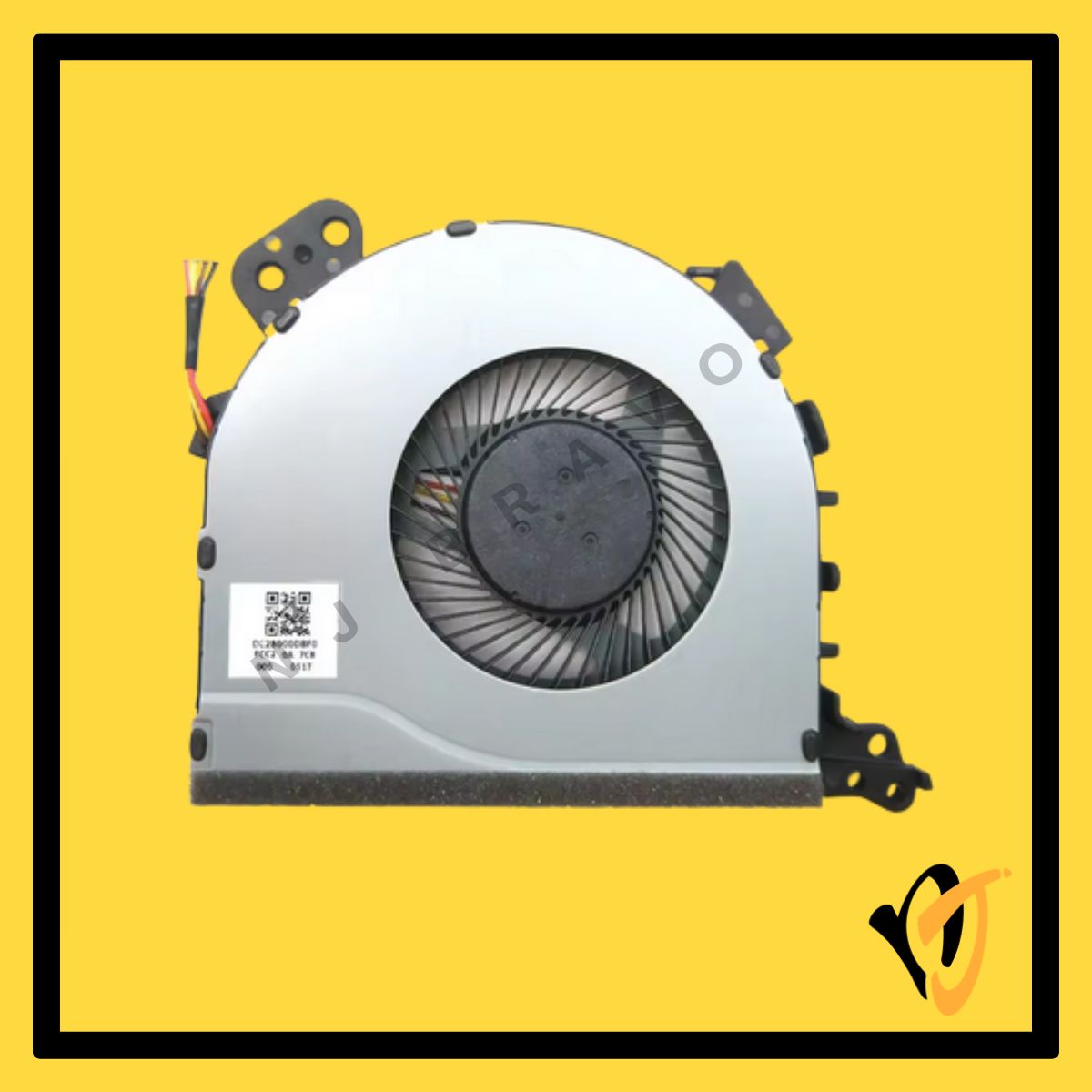

Lenovo IdeaPad IP 320 / IP 330 / IP 520 Series CPU Cooling Fan
Key Features
- Replaces part numbers: 5F10N82225, DC28000DBF0, DC28000DBV0, AT1560020W0, DFS541105FC0T (FJD5)
- Compatible with Lenovo IdeaPad 320, 330, and 520 series laptops
- 4-pin / 4-wire plug-and-play connector — no soldering required
- DC 5V / 0.5A (2.25W) with auto-controlled fan speed up to 2500 RPM
- Hypro bearing design with up to 100,000-hour lifespan
- 20 CFM airflow for efficient CPU heat dissipation
- Direct-fit replacement — matches original mounting and connector
Technical Specifications
| Part Numbers (Primary) | 5F10N82225 / DC28000DBF0 |
| Voltage | DC 5V |
| Current | 0.5A |
| Power Consumption | 2.25W |
| Max Fan Speed | 2500 RPM (auto-controlled) |
| Air Flow | 20 CFM |
| Connector | 4-pin / 4-wire with integrated flex cable |
| Bearing Type | Hypro bearing |
| Bearing Life | 100,000 hours |
| Heatsink | Not included |
| Color | Black |
| Material | ABS housing, metal fan blade |
Compatible Models
- IdeaPad 320-14 series: 320-14IKB, 320-14ABR
- IdeaPad 320-15 series: 320-15ABR, 320-15IAP, 320-15ISK, 320-15IKB, 320-15IGM, 320-15AST, 320-15IKB Touch, 320C-15IKB
- IdeaPad 320-17 series: 320-17IKB, 320-17ISK
- IdeaPad 330-15 series: 330-15IKB, 330-15IGM, 330-15ICH, 330-15AST
- IdeaPad 330C-15 series
- IdeaPad 520-15 series: 520-15IKB, 520-15IAP, 520-15AST, 520-15ISK
!
Disclaimer
Please verify your laptop model number and compare with the existing fan’s part number and connector layout before purchasing. This listing covers multiple sub-models within the IP 320/330/520 series — not all variants may use the same fan.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1× CPU Cooling Fan (with integrated 4-pin flex cable connector)
Warranty
- 3 month functional replacement warranty — covers fan failure under normal use conditions.
