Description

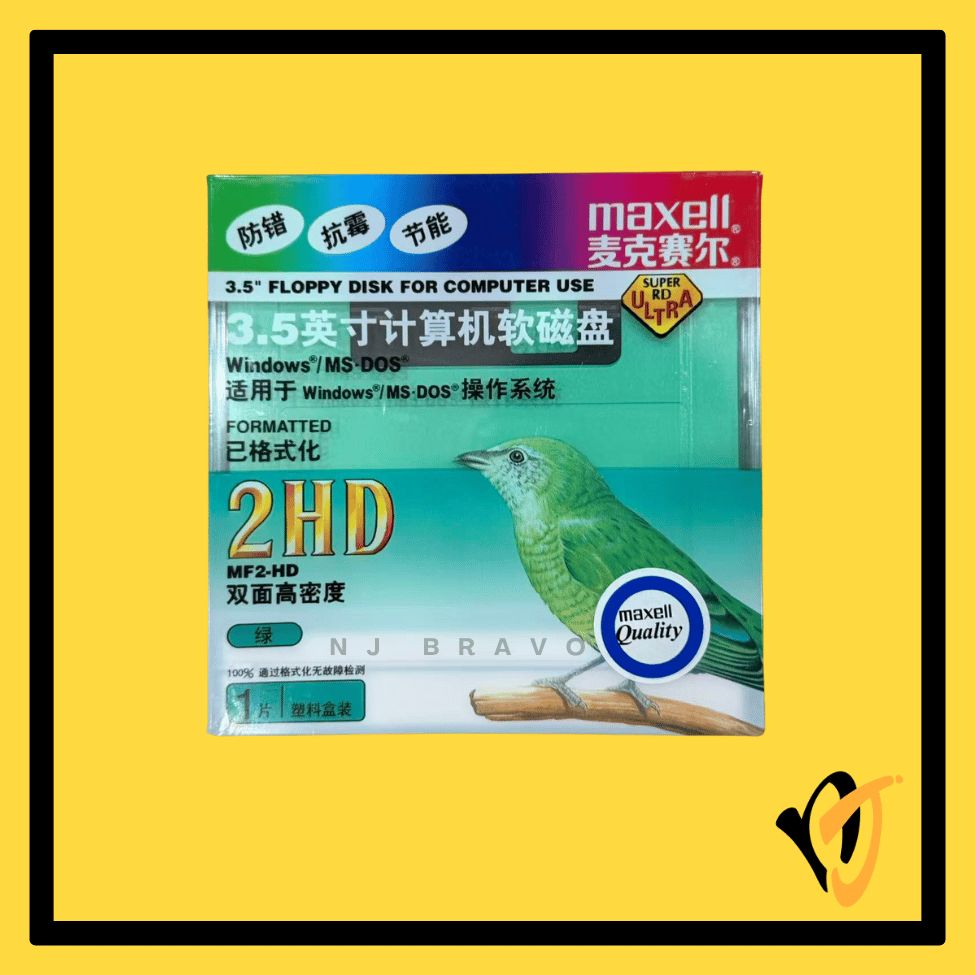

Maxell MF2HD 3.5 inch 1.44MB Micro Floppy Disk | IBM and PC Compatible | Double-Sided High Density | Self-Cleaning Liner
Key Features
- Maxell MF2HD 3.5 inch floppy disk – genuine Maxell brand.
- Model: MF2HD – Double-Sided, High Density (DS/HD); standard 3.5 inch microfloppy diskette format.
- Pre-formatted capacity: 1.44MB (IBM PC format) – ready for instant use, no additional formatting required.
- Density: High Density (HD) – 135 TPI, 80 tracks per side, double-sided magnetic media.
- Self-cleaning disk liner – cleans the disk surface during read/write cycles to reduce errors and extend media life.
- Dual interlocking flex shutter mechanism – additional protection against accidental shutter opening and dust ingress.
- Anti-mold media formulation – inhibits mold growth during long storage, suitable for tropical / high-humidity environments (Malaysia).
- Form factor: 3.5 inch rigid plastic shell with sliding metal shutter.
- Sold as single unit per listing.
Technical Specifications
| Brand | Maxell |
|---|---|
| Condition | New, Original |
| Stock Code | OTH-FDD03 |
| Model | MF2HD |
| Format Type | 2HD – Double-Sided, High Density (DS/HD) |
| Form Factor | 3.5 inch Micro Floppy Disk (rigid plastic shell with sliding metal shutter) |
| Formatted Capacity | 1.44 MB (IBM PC format) |
| Unformatted Capacity | 2.0 MB |
| Track Density | 135 TPI (Tracks Per Inch) |
| Tracks Per Side | 80 tracks |
| Sides | Double-Sided |
| Sectors Per Track | 18 sectors (512 bytes per sector) |
| Transfer Rate | 500 Kbps |
| Disk Rotation Speed | 300 RPM |
| Media Type | Magnetic – flexible mylar disk |
| Pre-Formatted | Yes – IBM PC format (FAT12) |
| Special Features | Self-cleaning liner / Dual interlocking flex shutter / Anti-mold media |
| Colors Available | Assorted (subject to stock availability) |
| Sold As | Single unit per listing |
Compatible Systems and Equipment
Legacy PC and Workstations:
- IBM PC, XT, AT and all IBM-compatible desktop PCs
- Windows 95 / 98 / ME / XP era desktops with built-in 3.5 inch floppy disk drive
- DOS-based and early Windows operating systems
Industrial and Specialty Equipment:
- CNC milling / turning machines with floppy-based control systems
- Embroidery machines (Brother, Tajima, Barudan, and similar brands)
- Medical equipment, oscilloscopes, and instruments with 3.5 inch FDD interface
- Sony Mavica digital cameras (FD71, FD75, FD83, FD88, FD91, FD97, etc.)
- Yamaha, Roland, Korg, and other music keyboards / synthesizers with built-in FDD
Storage and Backup Use:
- Archival use, data transfer to legacy systems, and backup of DOS/Windows 9x programs
!
Disclaimer
Always verify that your device uses a standard 3.5 inch 1.44MB (DS/HD) floppy drive before purchasing. Some older equipment uses 720KB (DD) or 5.25 inch formats which are NOT compatible with this disk.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1x Maxell MF2HD 1.44MB 3.5 inch Floppy Disk (single unit)
Warranty
- 1-month replacement warranty
- Covers manufacturing defects (disk unreadable / unformattable on first use); physical damage or wear from use not covered.
Additional Notes
- This is a 3.5 inch High Density (HD) 1.44MB disk – NOT compatible with 720KB Double Density (DD) drives, nor with 5.25 inch drive formats. Confirm your drive specification before purchasing.
- IBM PC formatted (FAT12, 18 sectors/track, 80 tracks/side). Mac-formatted versions are NOT sold under this listing.
- All three brands (Sony, Imation, Maxell) share identical electrical and mechanical specifications – same DS/HD format, same 1.44MB capacity, same 135 TPI track density, same 3.5 inch form factor.
- Maxell self-cleaning liner technology actively cleans the disk surface during operation – helps maintain data reliability over repeated read/write cycles.
- Anti-mold media formulation makes Maxell MF2HD well-suited for tropical storage conditions such as Malaysia.
- Genuine Maxell product – not refurbished or aftermarket.
