Description

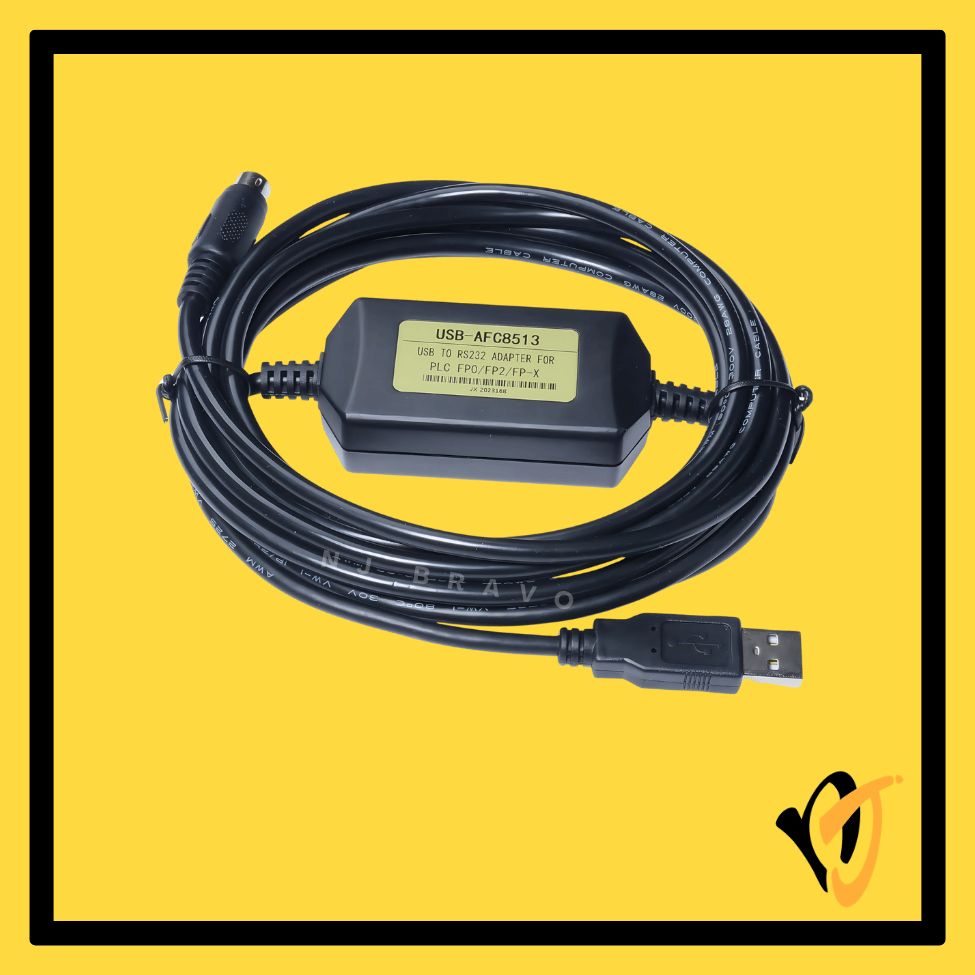

PANASONIC USB-AFC8513 (USB-FP0) | USB to 5-Pin RS-232 PLC Programming Converter Cable — 2.5M
The Panasonic USB-AFC8513 is a USB-to-RS232 converter programming cable for Panasonic FP0, FP2, FP-X, FP-M, and FP-G Series PLCs. It emulates a traditional RS-232 serial COM port over USB and connects to the proprietary round 5-pin communication port on the PLC.
Key Features
- USB Type-A on PC side — built-in USB-to-RS232 converter; no native serial port required
- Round 5-Pin (Male) on PLC side — Panasonic proprietary port on FP0/FP2/FP-X series
- TX/RX LED indicator on converter module
- USB bus powered — no external power supply needed
- 2.5-metre cable length
Technical Specifications
| Cable Model | USB-AFC8513 (USB-FP0) |
| Cable Length | 2.5 Metres (2.5M) |
| Interface — PC Side | USB Type-A (Male) |
| Interface — PLC Side | Round 5-Pin (Male) — Panasonic proprietary |
| Conversion | USB to RS-232 |
| Power Supply | USB bus-powered |
| OS Support | Windows XP / 7 / 8 / 10 / 11 (32 & 64-bit) |
| Condition | OEM Compatible — New (no retail box) |
Compatible Models
- Panasonic FP0, FP2, FP-X (FPX), FP-M, FP-G, FP-E Series PLCs
- Panasonic GT01, GT30, GT11 Series HMI touch screens (same connector)
!
Disclaimer
Always verify the exact port type and model number on your device before ordering.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Typical Use Cases
- USB-based PLC programming for Panasonic FP series from modern PCs
- Use with FPWIN Pro or FP-Programmer software
Package Contents
- 1× Panasonic USB-AFC8513 Programming Cable, USB-A to Round 5-Pin, 2.5M (OEM Compatible — New)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- OEM compatible — not a Panasonic-branded unit.
- Driver installation required — creates a virtual COM port.
- The stock description mentions 2.5M which matches the standard AFC8513 specification.
