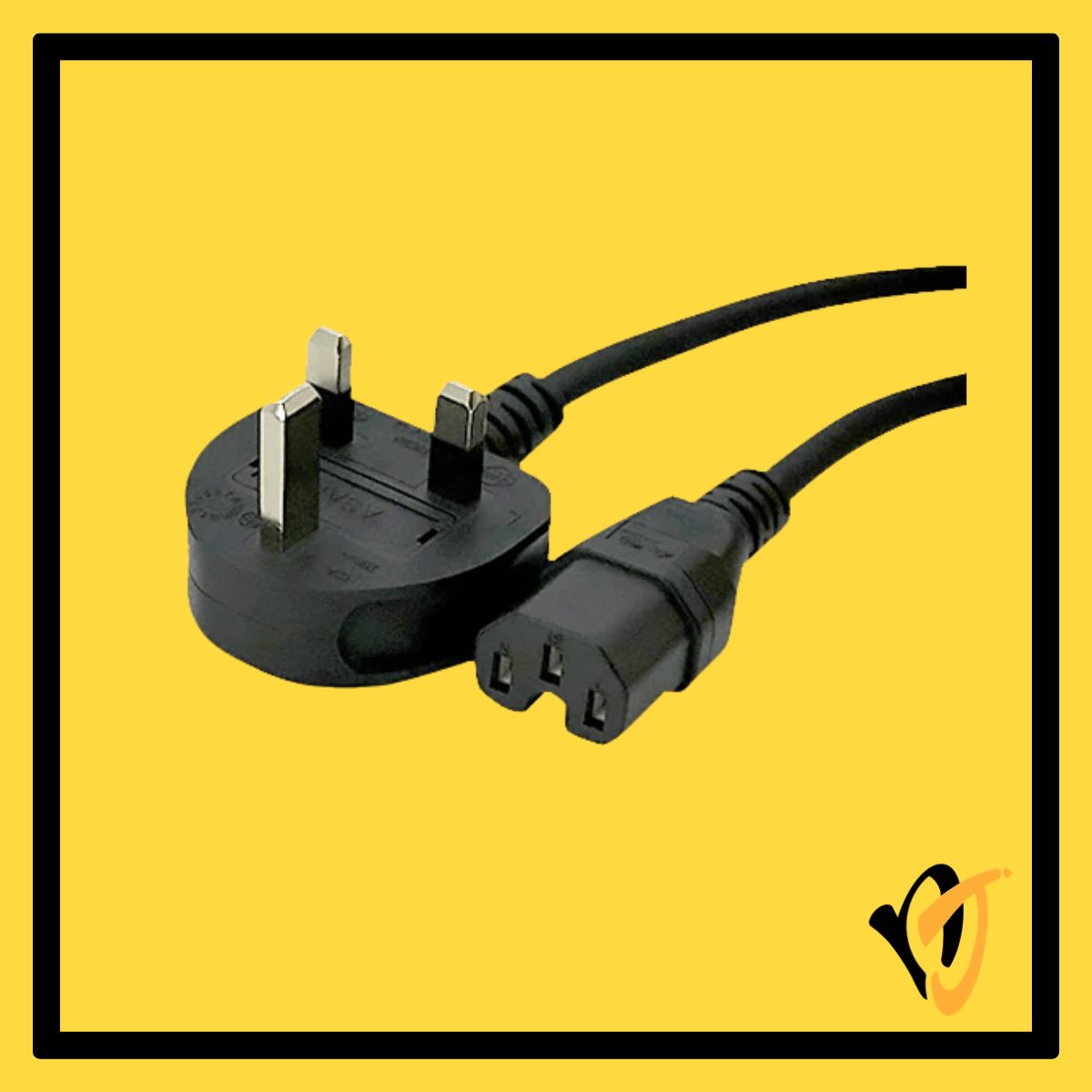

Power Cord C15 UK Plug 1.0mm² (1.8M~5M)
Available Lengths
| Length | Remarks |
|---|---|
| 1.8M | Standard short run |
| 3M | Standard short run |
| 5M | Standard run |
Key Features
- UK 3-pin BS 1363 (Type G) plug to IEC 60320 C15 (hot-condition female) connector
- C15 is the hot-condition variant of C13 — rated up to 120°C; required for high-temperature equipment
- 1.0mm² core size; 250V AC / 10A rated
- Copper conductors
- Available in 3 lengths: 1.8M / 3M / 5M
Technical Specifications
| Brand | OEM |
|---|---|
| Condition | New |
| Plug Type | UK 3-Pin BS 1363 (Type G) |
| Connector | IEC 60320 C15 (Hot Condition, Female) |
| Core Size | 1.0mm² |
| Available Lengths | 1.8M / 3M / 5M |
| Conductor | Copper |
| Voltage Rating | 250V AC |
| Current Rating | 10A |
| Temperature Rating | Up to 120°C (C15 hot-condition rated) |
Compatible Models
- Cisco switches and routers with C16 (hot-condition) inlet
- Network switches and equipment requiring hot-condition C16 inlet
- Rack-mount equipment rated for high-temperature environments
!
Disclaimer
Always verify the exact connector type (IEC C-series) and cable length required before ordering.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Additional Notes
- C15 connector fits C16 inlet ONLY — it will also physically fit C14 (standard) inlets, but C15 is specifically required for hot-condition rated equipment (e.g. Cisco switches).
- 1.0mm² core rated at 10A; do not exceed rated load.
- OEM product — generic packaging, no brand label.
