Description

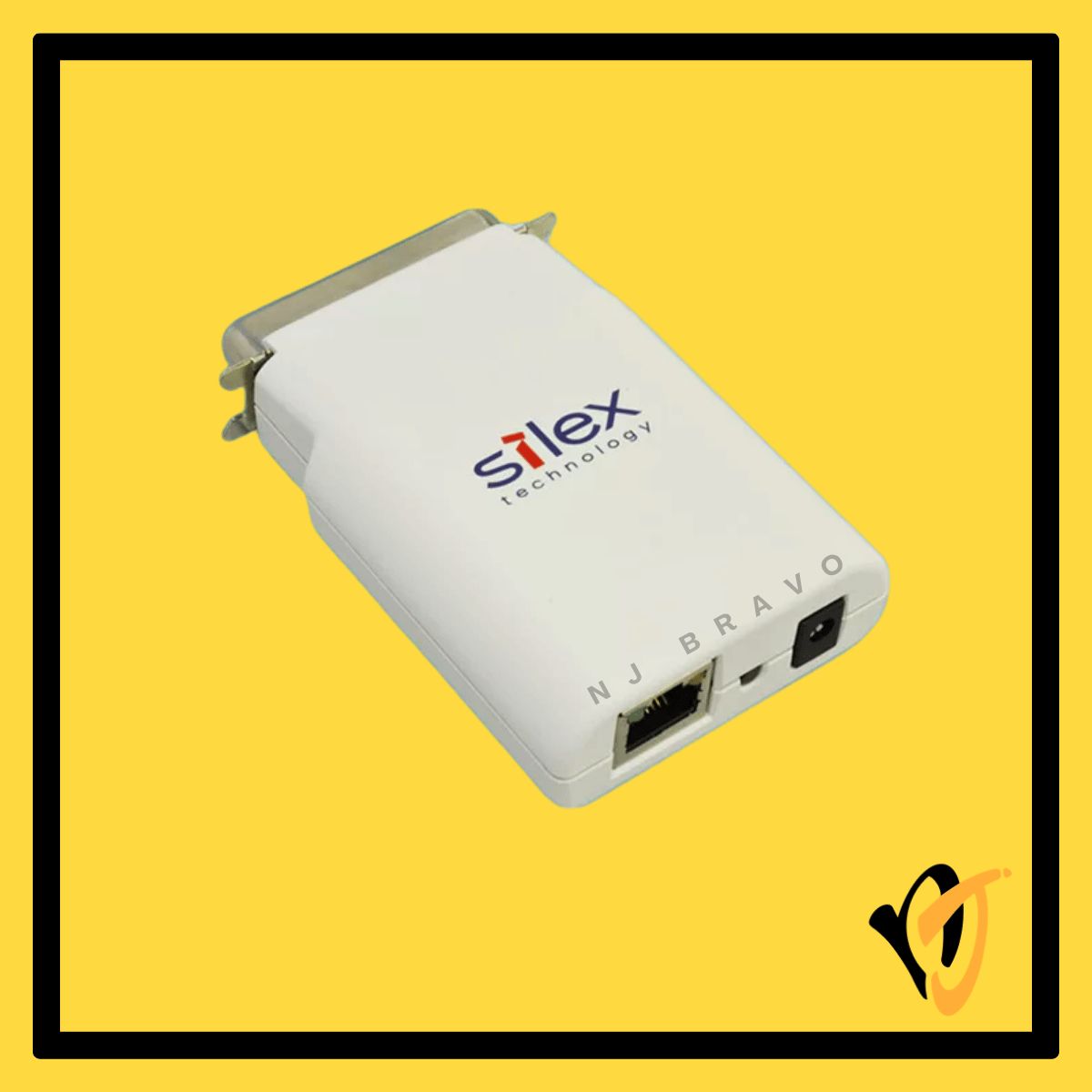

Silex SX-PS-3200P Centronics Parallel Print Server
Source Details
Business-grade network print server that connects a parallel (Centronics) port printer directly to a 10/100Mbps LAN, enabling multiple computers to share the printer over the network without a dedicated host PC.
Key Features
- New Silex SX-PS-3200P Centronics print server — connects a parallel port printer directly to a wired LAN network
- Article number: E1271 — plug directly into the printer parallel port; no printer cable required
- 1x RJ45 Ethernet port — 10BASE-T / 100BASE-TX auto-sensing (10/100Mbps)
- 1x Parallel interface — 36-pin Amphenol / IEEE 1284 Centronics compliant
- Supports TCP/IP protocol; IPv4 and IPv6 dual-stack supported — future-ready for pure IPv6 network environments
- Includes SX-Print client software — provides more stable printing than OS standard print protocols
- Includes SX Monitor — real-time printer status monitoring (paper out, printing) via pop-up notifications
- IP Filter security feature — restrict printer access to defined IP address ranges
- Configuration via Web Browser, TELNET, SNMP, or Windows Set-Up utility
- Compact and lightweight (62 × 91.1 × 22.5 mm, 75 g); certified VCCI / FCC / CE Class-B
Technical Specifications
| Brand | Silex Technology |
|---|---|
| Model | SX-PS-3200P |
| Article Number | E1271 |
| EAN | 4944406004681 |
| Condition | New |
| Printer Interface | Parallel — 36-pin Amphenol / IEEE 1284 (Centronics) |
| Network Interface | 1x RJ45 — 10BASE-T / 100BASE-TX (auto-sensing) |
| Network Standard | IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX) |
| Print Protocol | TCP/IP (IPv4 / IPv6 dual-stack) |
| Management Protocols | TELNET, SNMP |
| Configuration Methods | Web Browser, TELNET, SNMP, Windows Set-Up Utility |
| Included Software | SX-Print (client print software), SX Monitor (status monitoring) |
| IP Filter | Yes — restrict access by IP address range |
| IPv6 Support | Yes (IPv4/IPv6 dual-stack; IPv6 not supported on Windows XP) |
| Dimensions | 62 × 91.1 × 22.5 mm (W × D × H) |
| Weight | 75 g |
| Colour | White |
| Certifications | VCCI / FCC / CE Class-B |
| OS Support | Windows XP / Vista / 7 / 8, Windows Server 2003 / 2008 / 2012, UNIX / Linux |
!
Disclaimer
Always verify your printer’s connection type and network requirements before ordering.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1x Silex SX-PS-3200P Centronics Parallel Print Server (New)
- 1x Power Adaptor
- 1x Quick Start Guide
Warranty
- 3-month replacement warranty
- Covers manufacturing defects; physical damage and improper installation not covered
Additional Notes
- Designed specifically for parallel (Centronics) port printers — plugs directly into the printer’s 36-pin IEEE 1284 port; no separate parallel cable is required.
- Not suitable for USB-only printers; the SX-PS-3200P is a parallel interface print server only — for USB printer sharing see the WAVLINK WL-NU72P11 or WL-NU516U1.
- IPv6 dual-stack support makes this unit suitable for modern business networks transitioning away from IPv4; note that IPv6 mode is not supported under Windows XP.
- SX-Print client software provides more reliable printing than OS-level standard print protocols, particularly for complex documents on legacy parallel port printers.
- New unit; not refurbished or aftermarket.
