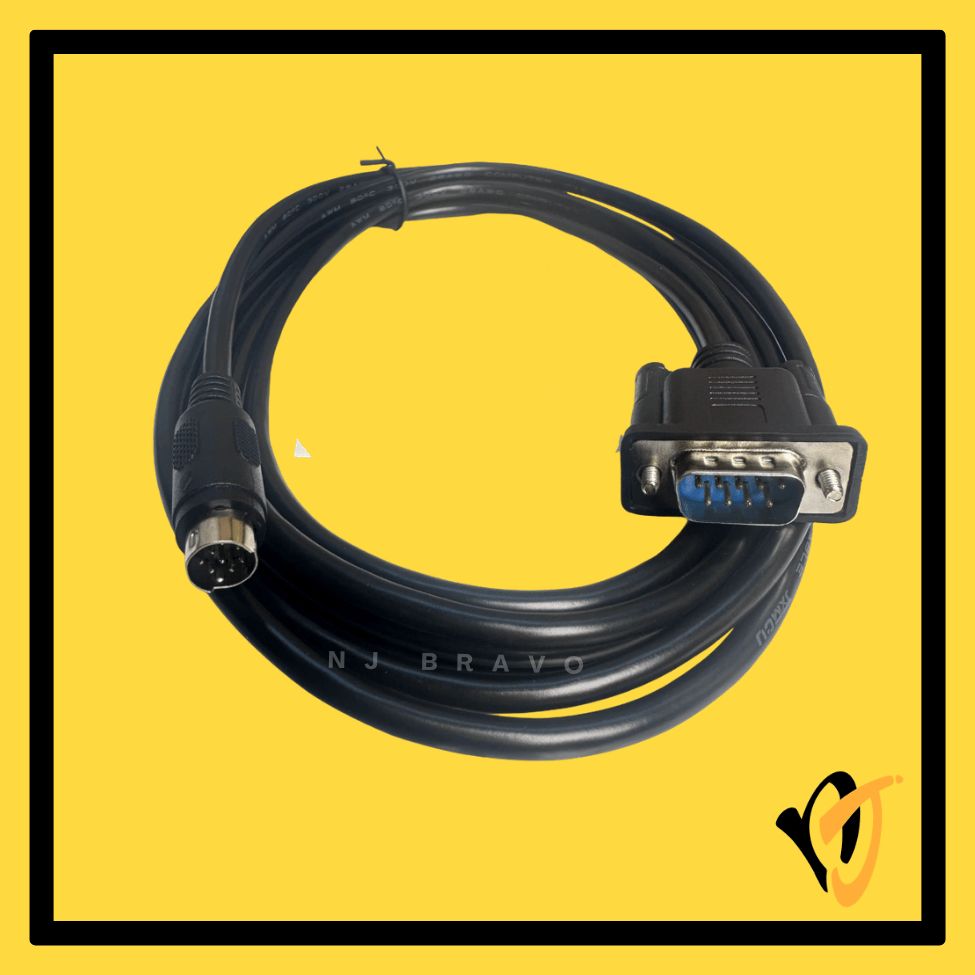

WEINTEK MT-FX | DB9M to MD8 HMI-to-PLC Communication Cable — 3M
The Weintek MT-FX is a communication cable for connecting Weintek MT Series HMI Touch Panels (MT6000/MT8000) to Mitsubishi FX Series PLCs. It uses a DB9 Male connector on the HMI side and a Mini-DIN 8-Pin (MD8) connector on the PLC side, operating over RS-485.
Key Features
- DB9 Male (9-pin D-Sub) on HMI side — connects to RS-232/485 COM port on Weintek MT6000/MT8000 HMI
- MD8 / Mini-DIN 8-Pin (Male) on PLC side — connects to FX Series RS-422/485 programming port
- RS-485 protocol — standard for Mitsubishi FX HMI communication
- 3-metre cable — standard control panel installation length
Technical Specifications
| Cable Model | MT-FX |
| Cable Length | 3 Metres (3M) |
| Interface — HMI Side | DB9 Male (9-pin D-Sub) |
| Interface — PLC Side | MD8 / Mini-DIN 8-Pin (Male) |
| Protocol | RS-485 |
| Condition | OEM Compatible — New (no retail box) |
Compatible Models
- Weintek MT6000 Series HMI: MT6050i, MT6070iH and similar
- Weintek MT8000 Series HMI: MT8070iH, MT8102iE and similar
- Mitsubishi FX Series PLCs: FX0S, FX0N, FX1S, FX1N, FX2N, FX3U with MD8 port
!
Disclaimer
Always verify the exact port type and model number on your device before ordering.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Typical Use Cases
- HMI ↔ Mitsubishi FX PLC real-time communication for process visualization and control
- Configure HMI driver in EasyBuilder Pro using Mitsubishi FX Series RS-485 protocol
Package Contents
- 1× Weintek MT-FX HMI-to-PLC Communication Cable, DB9M to MD8, 3M (OEM Compatible — New)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- OEM compatible — not a Weintek-branded unit.
- Protocol is RS-485 — configure HMI to use Mitsubishi FX communication protocol in EasyBuilder Pro.
- Baud rate and parity settings must match PLC configuration.
