Dell 240W PSU 0DN02 JVW1K DK87P OptiPlex 3050 5050 7050 MT 4+6P

Dell 240W PSU 0DN02 JVW1K DK87P OptiPlex 3050 5050 7050 MT 4+6P

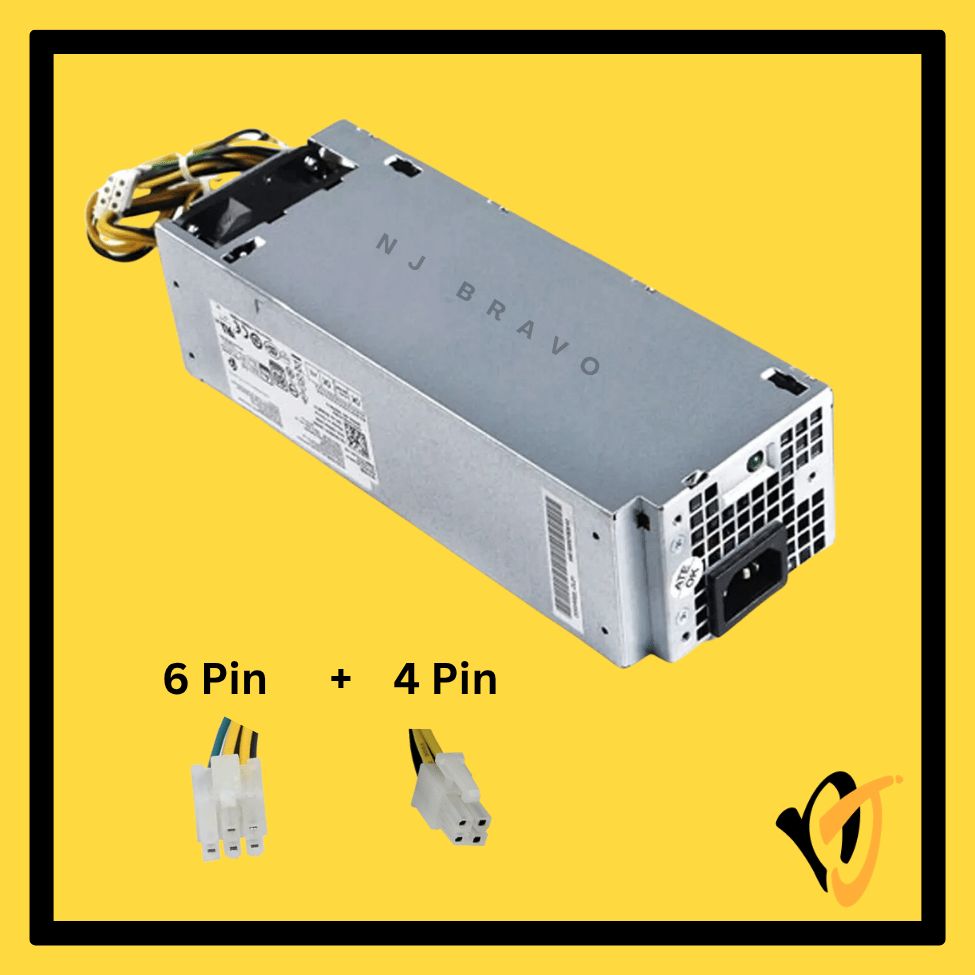

Genuine Dell 240W MT PSU 0DN02/JVW1K/DK87P for OptiPlex 3050/5050/7050 Mini Tower – 4+6 Pin

Add to quote
SKU: PSU-DL-07 Category: Brand:

Description

Dell 240W Power Supply 0DN02 / JVW1K / DK87P | OptiPlex 3050 / 5050 / 7050 MT (4 + 6 Pin)

Key Features

  • New original Dell 240W power supply for OptiPlex 3050 / 5050 / 7050 Mini Tower
  • Dell part numbers: 0DN02 / JVW1K / DK87P / DW3M7 / J61WF / HT04K / F484X
  • PSU model numbers: H240ES-02 / L240ES-00 / HU240AS-00 / HU240AS-02 / H240NM-00
  • Dimensions: 220 x 82 x 62 mm – Dell SFF/MT proprietary form factor
  • Connector layout: 4-Pin + 6-Pin (4+6P) – Dell proprietary connector for 7th-gen platform
  • 240W provides more power headroom vs 180W for GPU or storage expansion
  • Built-in OVP / OCP / SCP protection
  • Same connector as N8D59/82DRM 180W – direct wattage upgrade

Technical Specifications

Brand Dell
Condition New Original (Genuine Dell)
Dell PN 0DN02 / JVW1K / DK87P / DW3M7 / J61WF / HT04K / F484X
PSU Model H240ES-02 / L240ES-00 / HU240AS-00 / HU240AS-02 / H240NM-00
Wattage 240W MAX
Input Voltage 100-240V AC, 50-60Hz, 4.0A
Output 240W MAX continuous output
Form Factor Dell SFF/MT Proprietary (220 x 82 x 62 mm)
Connector Type 4-Pin + 6-Pin (4+6P)
Hot Plug No
Protection OVP / OCP / SCP

Compatible Models

Dell OptiPlex Series (7th Gen MT):

  • Dell OptiPlex 3050 MT
  • Dell OptiPlex 5050 MT
  • Dell OptiPlex 7050 MT / 7050 SFF (check existing PN)
!

Disclaimer

Always verify the part number / model number on your existing PSU label before purchasing.

If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.

Package Contents

  • 1x Dell 240W Power Supply 0DN02 / JVW1K / DK87P (New Original)

Warranty

  • 90-day replacement warranty
  • Covers manufacturing defects; physical damage and improper installation not included

Additional Notes

  • Same 4+6P connector family as 180W (N8D59/82DRM) – direct upgrade for more headroom.
  • NOT compatible with older OptiPlex 3040/5040/7040 (those use 4+8P).
  • Always verify Dell DP/N on existing PSU label before ordering.
  • New original unit – genuine factory Dell unit, not refurbished or aftermarket.
