Description

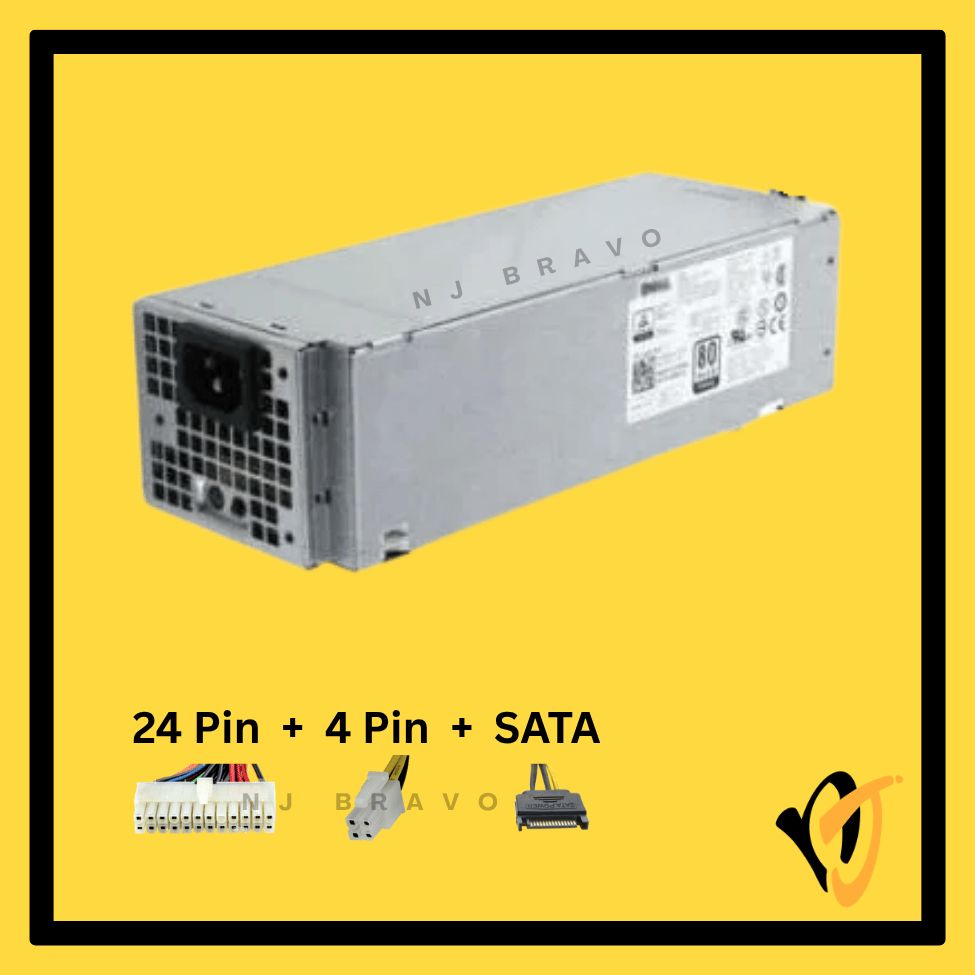

Dell 240W Power Supply J50TW | OptiPlex 390 / 790 / 990, 3010 / 7010 / 9010 SFF (24 + 4 Pin + SATA x2 + Mini SATA x1)
Key Features
- New original Dell 240W power supply for OptiPlex 390 / 790 / 990 / 3010 / 7010 / 9010 SFF
- Dell part numbers: J50TW / H240AS-00 / H240AS-01 / H240ES-00 / D240ES-00 / L240AS-00
- Cross-compatible Dell PNs: PH3C2 / CCCVC / 3RK5T / 2TXYM / 3WN11 / AC240AS-00 / AC240ES-00
- Dimensions: 240 x 72 x 62 mm – Dell Sandy Bridge era SFF form factor
- Connector layout: 24-Pin + 4-Pin CPU + SATA x2 + Mini SATA x1
- 240W for Sandy Bridge / Ivy Bridge OptiPlex SFF desktop platform
- Built-in OVP / OCP / SCP protection
- Legacy SFF form factor – different from newer 3040/3050/5040/7040 connector
Technical Specifications
| Brand | Dell |
| Condition | New Original (Genuine Dell) |
| Dell PN | J50TW / PH3C2 / CCCVC / 3RK5T / 2TXYM / 3WN11 |
| PSU Model | H240AS-00 / H240AS-01 / H240ES-00 / D240ES-00 / L240AS-00 / AC240AS-00 |
| Wattage | 240W MAX |
| Input Voltage | 100-240V AC, 50-60Hz, 4.0A |
| Output | 240W MAX continuous output |
| Form Factor | Dell Sandy Bridge SFF (240 x 72 x 62 mm) |
| Connector Type | 24-Pin + 4-Pin CPU + SATA x2 + Mini SATA x1 |
| Hot Plug | No |
| Protection | OVP / OCP / SCP |
Compatible Models
Dell OptiPlex Series (Sandy/Ivy Bridge SFF):
- Dell OptiPlex 390 / 790 / 990 SFF
- Dell OptiPlex 3010 / 7010 / 9010 SFF
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1x Dell 240W Power Supply J50TW (New Original)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- Sandy Bridge / Ivy Bridge era OptiPlex SFF PSU – 24-pin main connector layout differs from later Dell SFF generations.
- NOT compatible with OptiPlex 3040/5040/7040 (those use 4+8P only).
- Verify Dell DP/N on existing PSU label matches J50TW or H240AS series.
- New original unit – genuine factory Dell unit, not refurbished or aftermarket.
