Dell 250W Non Hot-Swap Cabled PSU C627N/V38RM/6HTWP — PowerEdge R210 / R210 II / R220

Add to quote
SKU: PSU-DL-SV07 Category: Brand:

Description

Dell 250W Server PSU C627N / V38RM / 6HTWP / N250E-S0 | PowerEdge R210 / R210 II / R220 — Non Hot-Swap Cabled Power Supply

Key Features

  • Dell 250W non hot-swap server power supply — fixed cabled output, server must be powered down before replacement
  • Dell Part Numbers: C627N / 0C627N / V38RM / 0V38RM / 6HTWP / 06HTWP / D221N — same physical unit across all variants
  • PSU Models: L250E-S0 / N250E-S0 / NPS-250NB A — interchangeable across compatible PowerEdge platforms

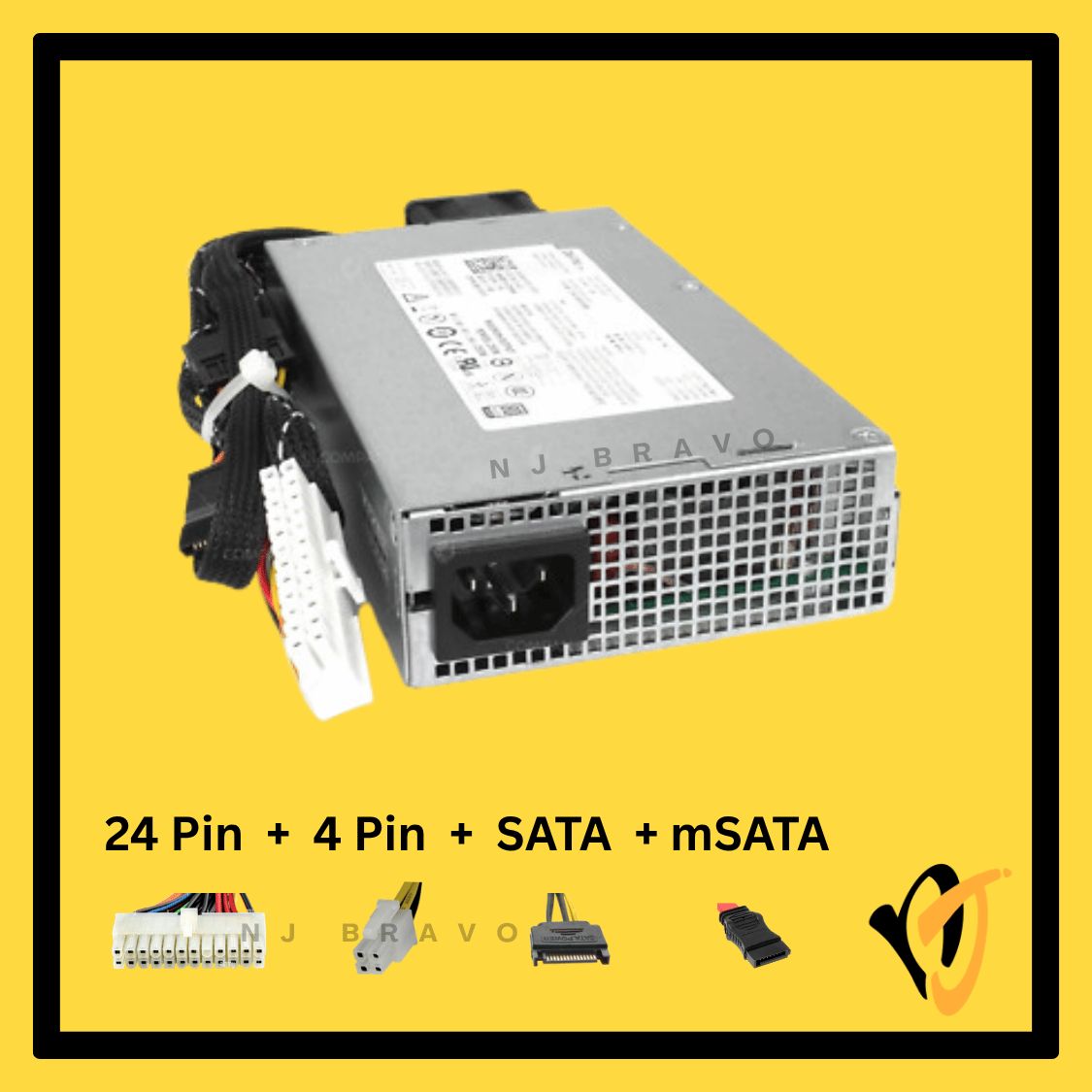

  • Cabled output — includes 24-pin ATX, 4-pin 12V ATX, slimline SATA, and 2x SATA power connectors
  • Input: 100–240V auto-sensing, 50/60Hz — universal voltage, no manual switching required
  • 80 PLUS Silver certified — high efficiency, reduced heat output and power consumption
  • Single-fan cooling design optimized for 1U rack server airflow
  • Compatible with Dell PowerEdge R210, R210 II, R220, and DL1000 Backup and Recovery Appliance

Technical Specifications

Brand Dell
Condition OEM Compatible — New
Dell Part Numbers C627N / 0C627N / V38RM / 0V38RM / 6HTWP / 06HTWP / D221N
PSU Model Numbers L250E-S0 / N250E-S0 / NPS-250NB A
Max Output Power 250W
Input Voltage 100–240V AC, Auto-Sensing
Input Frequency 50 / 60Hz
Input Current 4A
Output Rails +12V @ 20.8A / +5V @ 10A / +3.3V @ 5.0A / +12VSB @ 1.2A
Efficiency 80 PLUS Silver
Hot-Swap No — Non Hot-Swap (server must be off for replacement)
Output Type Cabled (fixed harness)
Connectors 1x 24-Pin ATX / 1x 4-Pin 12V ATX / 1x Slimline SATA / 2x SATA
Form Factor 1U Rack Server PSU
Cooling Single fan

Compatible Models

  • Dell PowerEdge R210
  • Dell PowerEdge R210 II
  • Dell PowerEdge R220
  • Dell DL1000 Backup and Recovery Appliance
!

Disclaimer

Always verify the Dell part number against your existing PSU label before ordering.

If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.

Package Contents

  • 1 x Dell 250W Non Hot-Swap Server PSU (OEM Compatible — New)

Warranty

  • 90-day replacement warranty
  • Covers manufacturing defects; physical damage and improper installation not included

Additional Notes

  • This is a non hot-swap PSU — the server must be fully powered down before removing or installing this unit. It cannot be replaced while the system is running.
  • Cabled output design: power cables are fixed/attached to the PSU (not modular). Ensure existing cable routing inside the chassis is compatible before replacement.
  • C627N / V38RM / 6HTWP are Dell part numbers for the same 250W PSU unit — C627N and V38RM are typically associated with R210 / R210 II; 6HTWP is the R220 variant. All share the same form factor and are cross-compatible.
  • OEM Compatible — New unit. Not refurbished.
