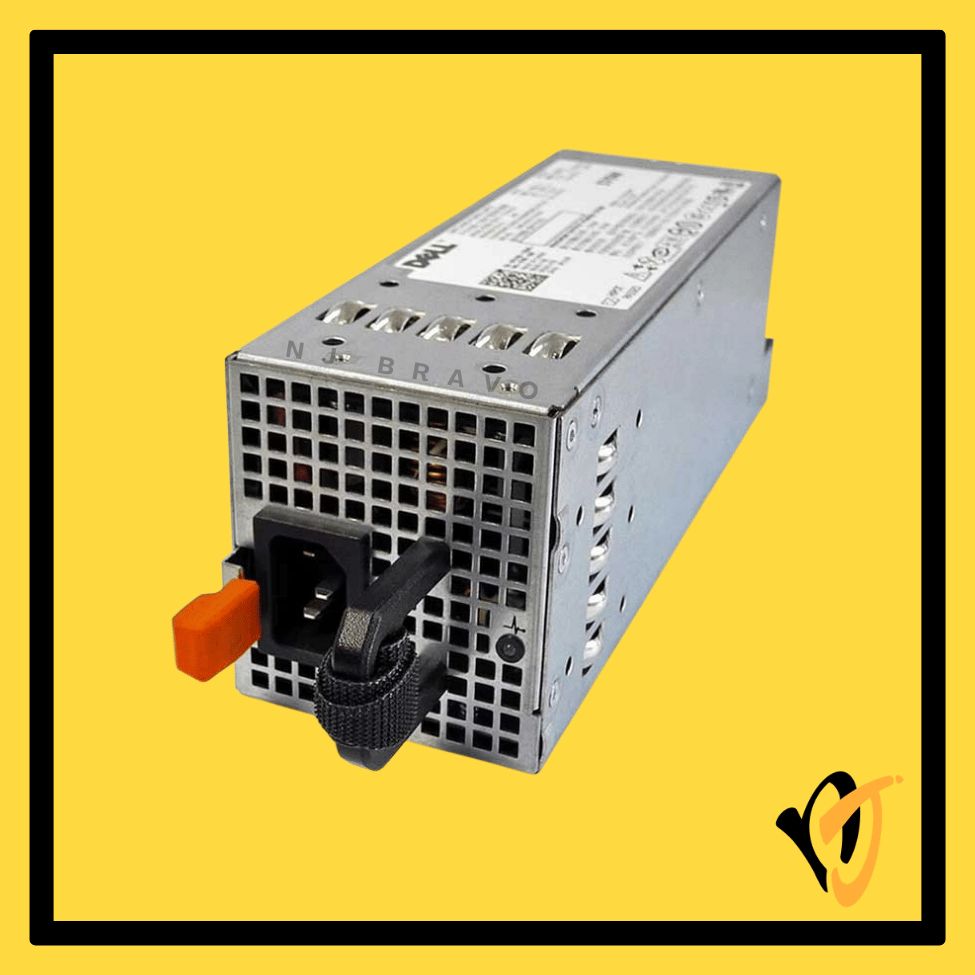

Dell 570W Server Power Supply VPR1M / RXCPH | PowerEdge R610 / R710 (Hot-Swap / Redundant)
Key Features
- New original Dell 570W hot-swap server power supply for PowerEdge R610 and R710 rack servers
- Dell part numbers: VPR1M / RXCPH — same physical unit, interchangeable DPN
- PSU model numbers: C570A-S0 / A570P-00 / A570P-01
- Hot-plug / hot-swap capable — PSU can be replaced without server downtime
- Redundant N+1 dual-PSU configuration supported
- 570W stable output for PowerEdge R610 / R710 1U/2U rack server workloads
- Wide input range: 100–240V AC, 50–60Hz — compatible with MY/SG 240V supply
- Built-in OVP / OCP / SCP protection
Technical Specifications
| Brand | Dell |
| Condition | New Original (Genuine Dell) |
| Dell PN | VPR1M / RXCPH |
| PSU Model | C570A-S0 / A570P-00 / A570P-01 |
| Wattage | 570W MAX |
| Input Voltage | 100–240V AC, 50–60Hz |
| Output | 570W MAX continuous output |
| Form Factor | Hot-Swap Server PSU (1U/2U Rack) |
| Connector Type | Server Backplane Connector (Hot-Plug) |
| Hot Plug | Yes — Hot-Swap / Hot-Plug Supported |
| Redundancy | N+1 Redundant PSU Support |
| Protection | OVP / OCP / SCP |
Compatible Models
Dell PowerEdge Server Series:
- Dell PowerEdge R610
- Dell PowerEdge R710
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1× Dell 570W Server PSU VPR1M RXCPH PowerEdge R610 R710 (New Original or identical DPN)
Warranty
- 3-month replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- Hot-swap server PSU — can be swapped while server is running (when redundant PSU is active).
- Enterprise rack server use only — not compatible with desktop, workstation, or tower chassis.
- Verify Dell DP/N on existing PSU label matches VPR1M or RXCPH before ordering.
- New original unit — genuine factory Dell unit, not refurbished or aftermarket.
