Dell 260W PSU 3YNRJ RHXF7 OptiPlex 3050 5050 7050 7060 7080 SFF 4+6P

Dell 260W PSU 3YNRJ RHXF7 OptiPlex 3050 5050 7050 7060 7080 SFF 4+6P

RM230.00

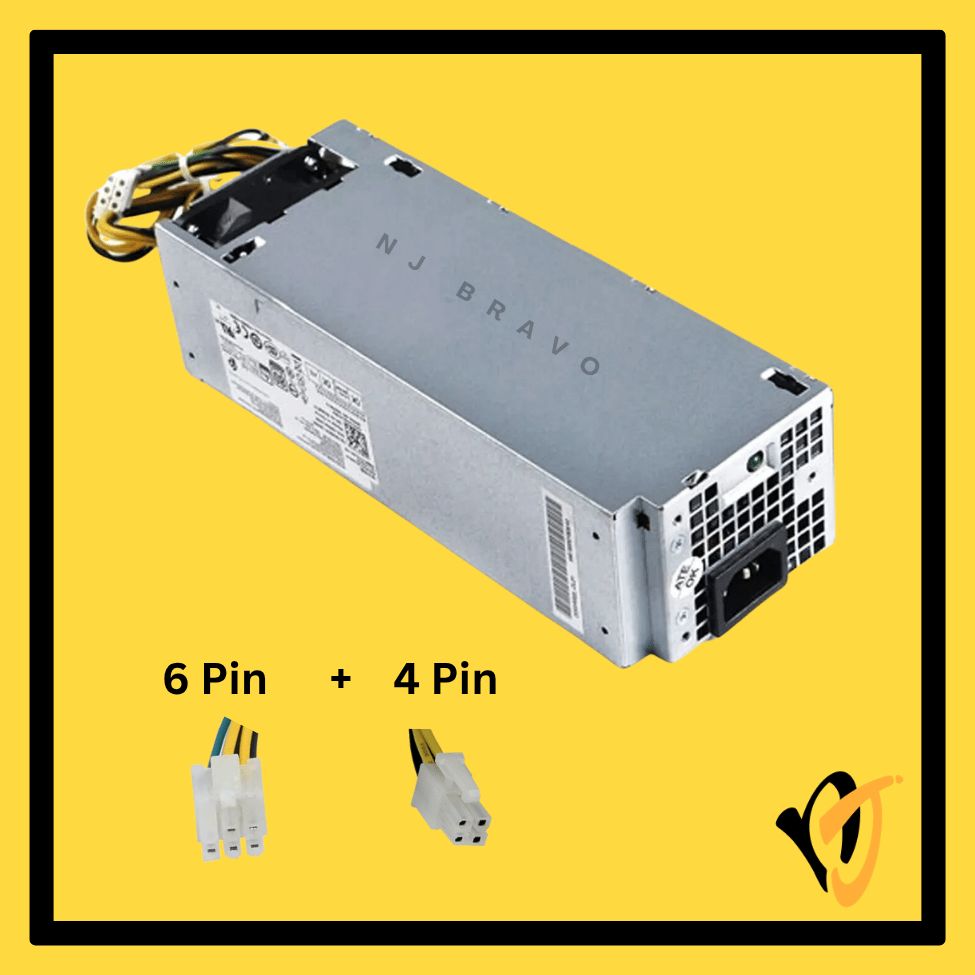

Genuine Dell 260W PSU 3YNRJ/RHXF7 for OptiPlex 3050/5050/7050/7060/7080 SFF MT – 4+6 Pin

1 in stock

Add to quote
SKU: PSU-DL-13 Category: Brand:

Description

Dell 260W Power Supply 3YNRJ / RHXF7 | OptiPlex 3050 / 5050 / 7050 / 7060 / 7080 SFF/MT (4 + 6 Pin)

Key Features

  • New original Dell 260W power supply for OptiPlex 3050 / 5050 / 7050 / 7060 / 7080 SFF and MT
  • Dell part numbers: 3YNRJ / RHXF7 / TP18W / 52CKC / GDCXM / 4THK0 / H7X3F
  • PSU model numbers: H260EBM-00 / H260EBM-01 / L260EBM-00 / L260EBM-01 / D260EBM-00
  • Dimensions: 220 x 82 x 62 mm – Dell SFF/MT 7th/8th/10th gen form factor
  • Connector layout: 4-Pin + 6-Pin (4+6P) – Dell proprietary connector for Kaby Lake / Coffee Lake / Comet Lake
  • 260W provides upgrade headroom over stock 180W for GPU or drive-heavy builds
  • Built-in OVP / OCP / SCP protection
  • Same 4+6P connector family as N8D59/82DRM/0DN02 – direct wattage upgrade

Technical Specifications

Brand Dell
Condition New Original (Genuine Dell)
Dell PN 3YNRJ / RHXF7 / TP18W / 52CKC / GDCXM / 4THK0 / H7X3F
PSU Model H260EBM-00 / H260EBM-01 / L260EBM-00 / L260EBM-01
Wattage 260W MAX
Input Voltage 100-240V AC, 50-60Hz
Output 260W MAX continuous output
Form Factor Dell SFF/MT Proprietary (220 x 82 x 62 mm)
Connector Type 4-Pin + 6-Pin (4+6P)
Hot Plug No
Protection OVP / OCP / SCP

Compatible Models

Dell OptiPlex Series (7th / 8th / 10th Gen):

  • Dell OptiPlex 3050 / 5050 / 7050 SFF / MT
  • Dell OptiPlex 3060 / 5060 / 7060 MT
  • Dell OptiPlex 3080 / 5080 / 7080 MT
!

Disclaimer

Always verify the part number / model number on your existing PSU label before purchasing.

If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.

Package Contents

  • 1x Dell 260W Power Supply 3YNRJ / RHXF7 (New Original)

Warranty

  • 90-day replacement warranty
  • Covers manufacturing defects; physical damage and improper installation not included

Additional Notes

  • 4+6P connector – same family as 180W (N8D59) and 240W (0DN02). Direct upgrade.
  • NOT compatible with older OptiPlex 3040/5040/7040 (those use 4+8P).
  • Verify Dell DP/N on existing PSU matches 3YNRJ or RHXF7.
  • New original unit – genuine factory Dell unit, not refurbished or aftermarket.
