Description

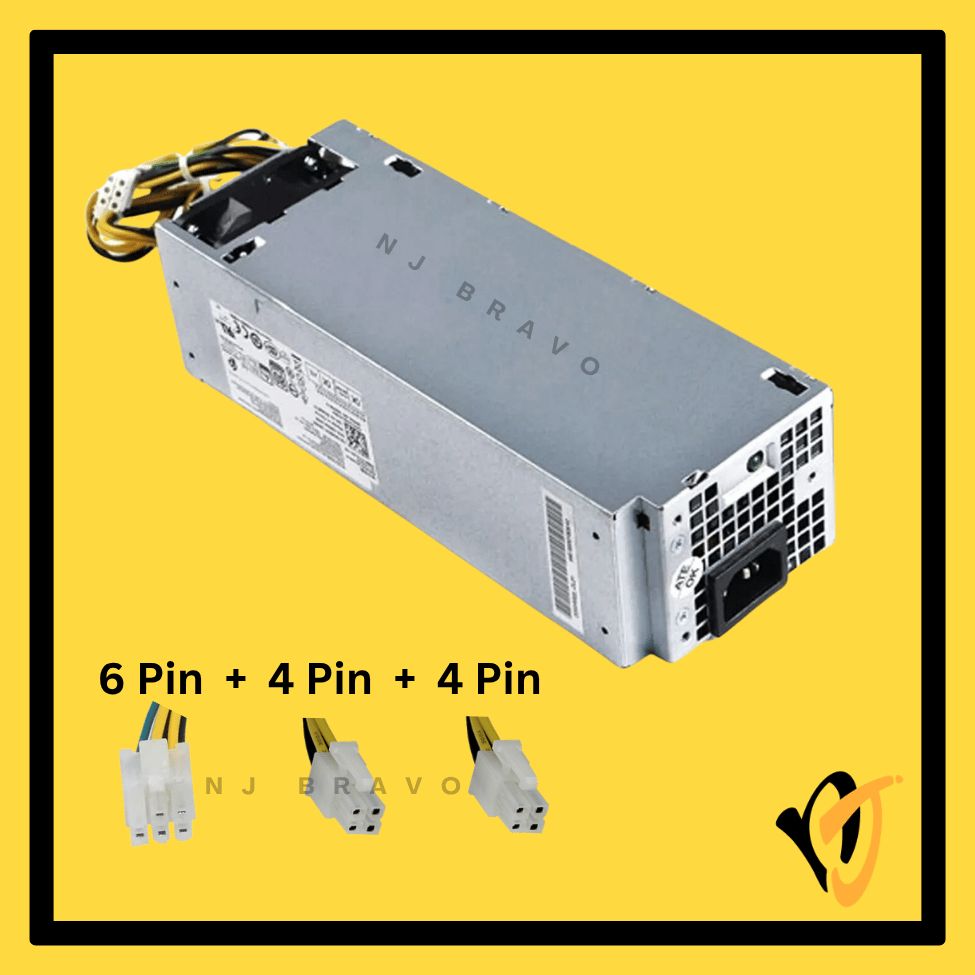

Dell 300W Power Supply V2KRY | OptiPlex 3070 / 5070 / 7070 / 3080 / 5080 / 7080 SFF (6 + 4 + 4 Pin)
Key Features
- New original Dell 300W power supply – highest wattage in the 6+4+4P SFF family
- Dell part numbers: V2KRY / 0V2KRY
- PSU model numbers: H300EBS-00 / L300EBS-00 / AC300EBS-00
- Dimensions: 220 x 82 x 62 mm – Dell SFF 9th/10th gen form factor
- Connector layout: 6-Pin + 4-Pin + 4-Pin (6+4+4P) – same connector as 200W / 260W variants
- 300W maximum power for GPU-heavy or fully-loaded SFF builds
- Built-in OVP / OCP / SCP protection
- Top-tier upgrade from 200W / 260W within same 6+4+4P family
Technical Specifications
| Brand | Dell |
| Condition | New Original (Genuine Dell) |
| Dell PN | V2KRY / 0V2KRY |
| PSU Model | H300EBS-00 / L300EBS-00 / AC300EBS-00 |
| Wattage | 300W MAX |
| Input Voltage | 100-240V AC, 50-60Hz |
| Output | 300W MAX continuous output |
| Form Factor | Dell SFF Proprietary (220 x 82 x 62 mm) |
| Connector Type | 6-Pin + 4-Pin + 4-Pin (6+4+4P) |
| Hot Plug | No |
| Protection | OVP / OCP / SCP |
Compatible Models
Dell OptiPlex Series (9th / 10th Gen SFF):
- Dell OptiPlex 3070 / 5070 / 7070 SFF
- Dell OptiPlex 3080 / 5080 / 7080 SFF
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1x Dell 300W Power Supply V2KRY (New Original)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- 300W – highest wattage available in the 6+4+4P OptiPlex SFF family. Same connector as 200W / 260W.
- NOT compatible with older OptiPlex generations using 4+8P or 4+6P connectors.
- Verify Dell DP/N on existing PSU matches V2KRY before ordering.
- New original unit – genuine factory Dell unit, not refurbished or aftermarket.
