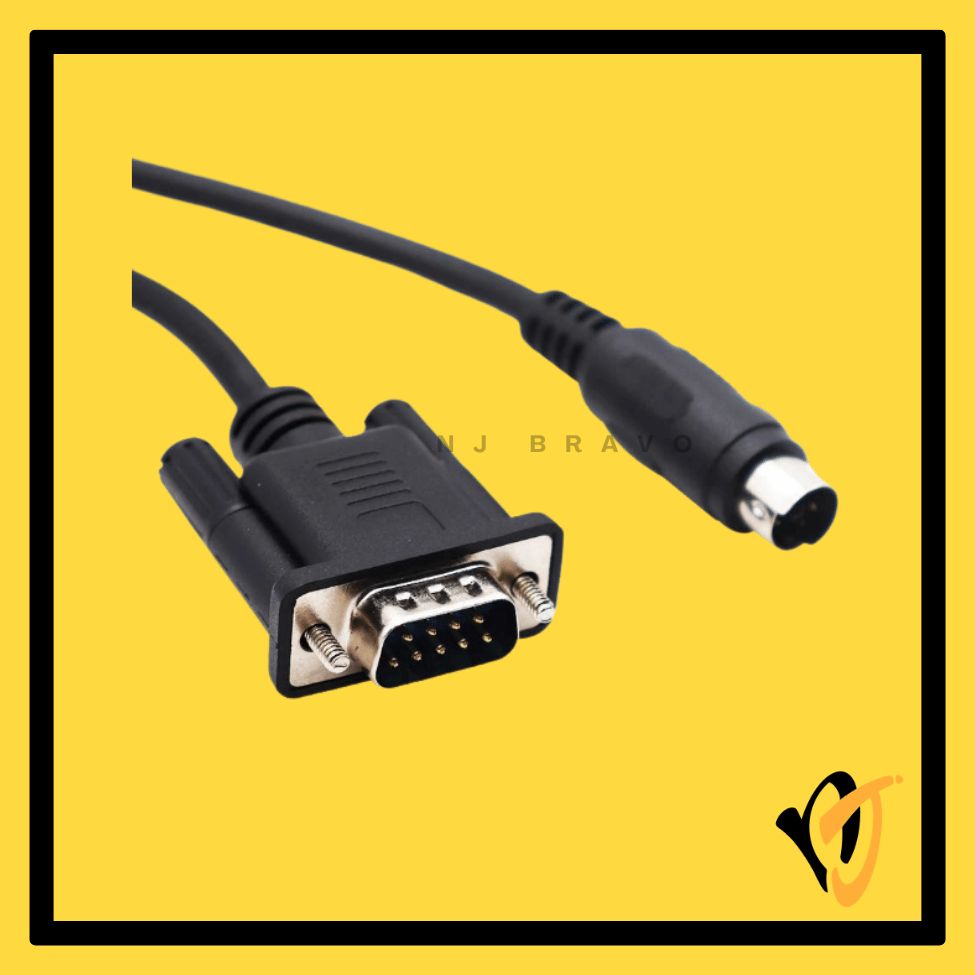

DELTA DOP-DVP | DB9M to MD8 DVP Programming & HMI Communication Cable — 5M
The Delta DOP-DVP (5M) is a dedicated RS-232 serial communication cable for connecting Delta DOP Series HMI Touch Panels to Delta DVP Series PLCs over a 5-metre run — suitable for mid-range panel-to-machine distances. Supplied as an OEM compatible unit built to the DOP-DVP specification.
Key Features
- Same connector specification as the 3M and 10M variants — DB9M on HMI side, MD8 on PLC side
- 5-metre length — ideal for installations where 3M falls short but 10M would be excessive
- RS-232 at up to 19,200 bps — compatible with Delta DVP default communication settings (8N1)
- OEM compatible — built to DOP-DVP specification without branded retail packaging
Technical Specifications
| Cable Model | DOP-DVP |
| Cable Length | 5 Metres (5M) |
| Interface — HMI Side | DB9 Male (9-pin D-Sub) |
| Interface — PLC Side | MD8 / Mini-DIN 8-Pin (Round, Male) |
| Protocol | RS-232 Serial |
| Baud Rate | Up to 19,200 bps |
| Data Format | 8 Data Bits, No Parity, 1 Stop Bit (8N1) |
| Condition | OEM Compatible — New (no retail box) |
Compatible Models
- Delta DOP-A Series: DOP-A57GSTD, DOP-A70THTD and similar
- Delta DOP-B Series: DOP-B03E211, DOP-B05S111, DOP-B07E515, DOP-B10E515 and similar
- Delta DVP Series PLC (MD8 RS-232 port): DVP-SS2, DVP-SV2, DVP-SA2, DVP-SE, DVP-SX2, DVP-ES2, DVP-EX2
!
Disclaimer
Always verify the exact port type and model number on your device before ordering.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Typical Use Cases
- HMI ↔ PLC communication for mid-distance panel-to-machine installations
- Program pass-through for DVP PLC via Delta DOP HMI using DOPSoft or WPLSoft
Package Contents
- 1× Delta DOP-DVP RS-232 HMI Communication Cable, DB9M to MD8, 5M (OEM Compatible — New)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- OEM compatible — not a Delta-branded retail unit.
- RS-232 serial only — a USB-to-RS232 adapter is required for laptops without a native COM port.
- Part of the DOP-DVP length family: 3M (CPC-PLC-0103), 5M (this), 10M (CPC-PLC-0110).
