Description

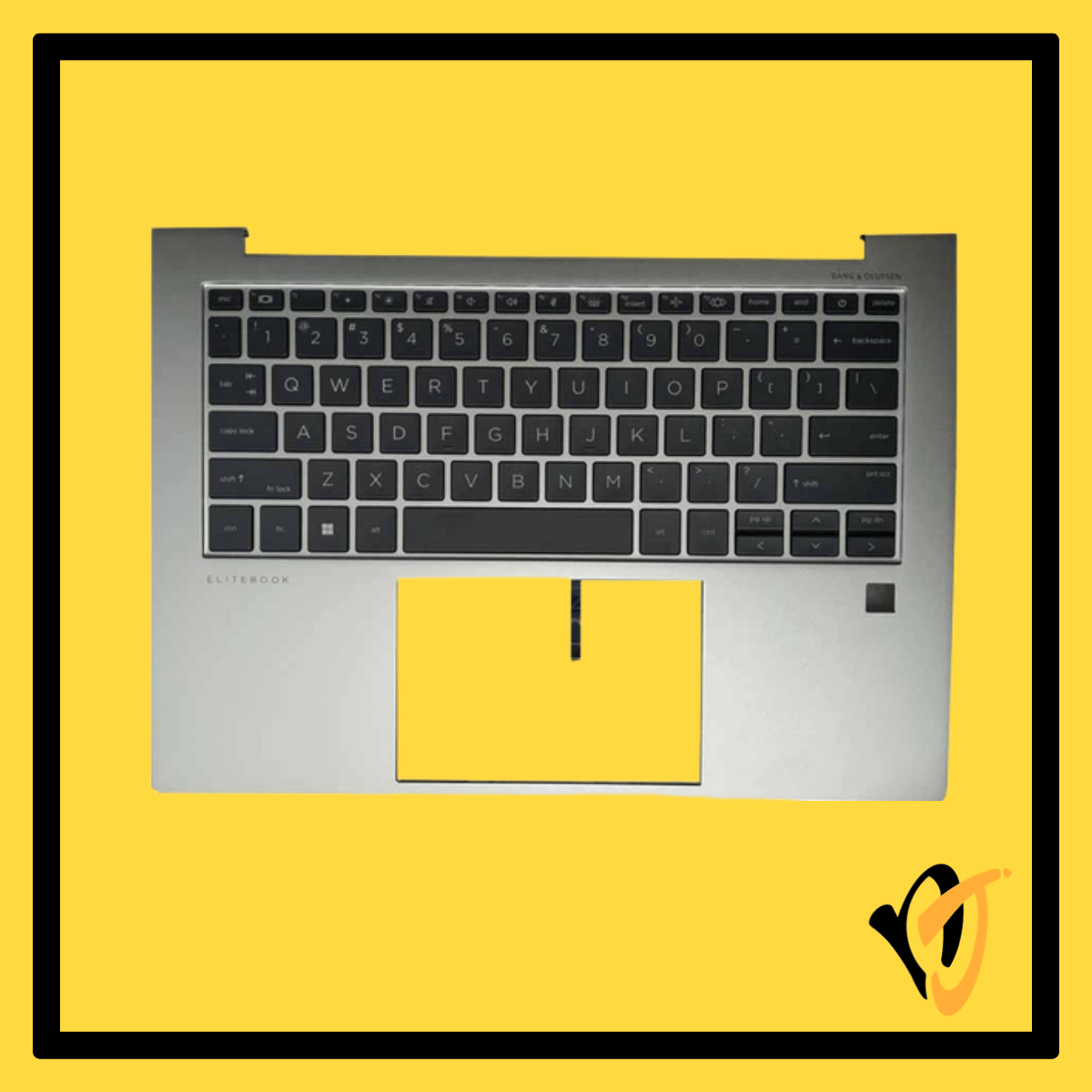

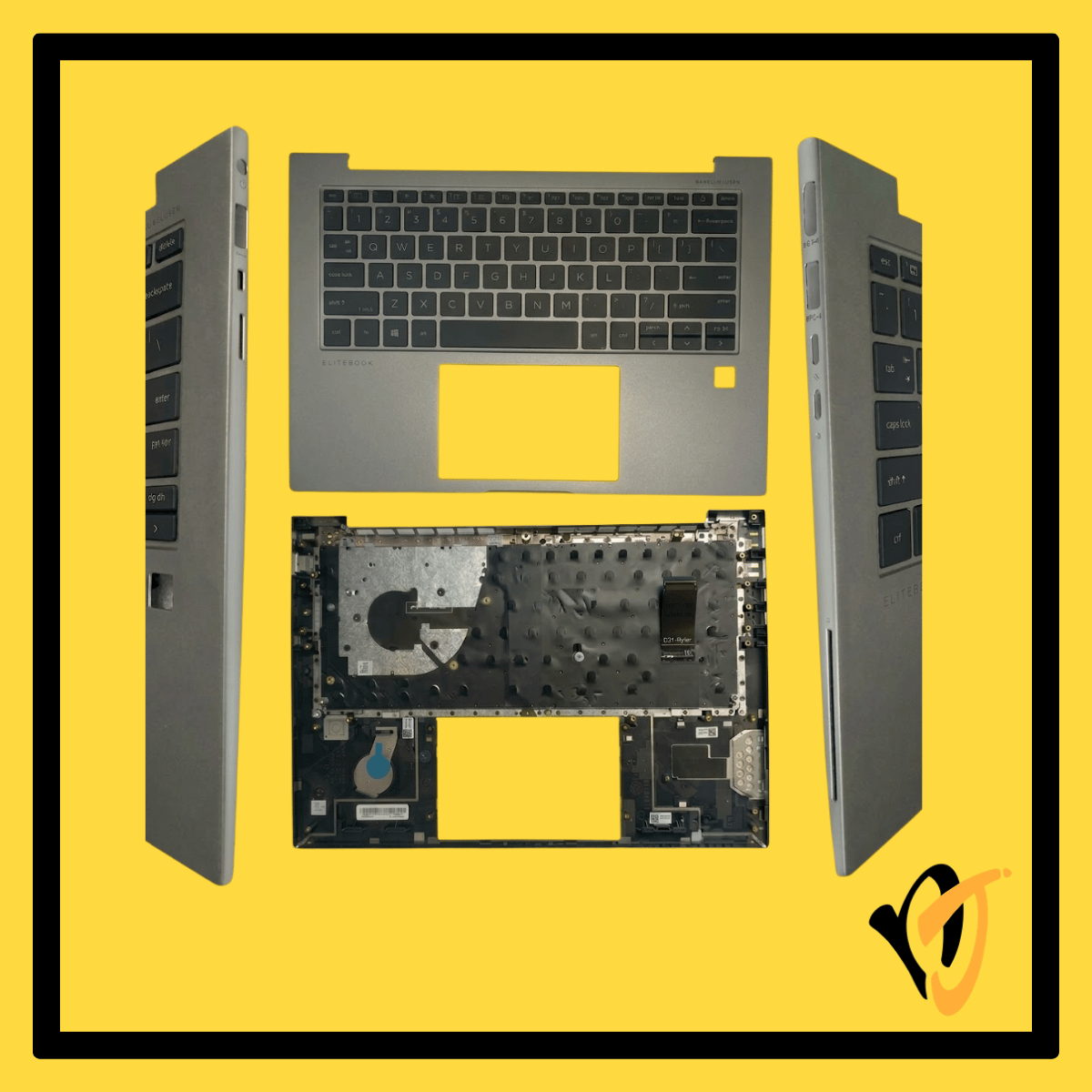

HP EliteBook 840 / 845 G9 G10 Palmrest Top Cover (C Cover) N09058-001 with Backlit Keyboard
Key Features
- New palmrest top cover (C cover) supplied with backlit keyboard, for HP EliteBook 840 / 845 G9 and G10
- HP part number N09058-001 (board reference 6070B219)
- Keyboard is already fitted to the palmrest, so it is supplied as one assembly
- US layout keyboard with backlight, silver palmrest
- Standard backlit version (non-privacy), with fingerprint reader cut-out on the palmrest
- Touchpad is not included; transfer the touchpad from your original palmrest
- Suitable for a worn, damaged or non-working keyboard and palmrest on the same notebook
Technical Specifications
| Brand | HP |
| Product Type | Palmrest top cover (C cover) with keyboard |
| HP Part Number | N09058-001 |
| Board Reference | 6070B219 |
| HP Description | TOP COVER W/KB CP BL SR US |
| Notebook Series | HP EliteBook 840 / 845 G9 and G10 |
| Keyboard Layout | US |
| Backlight | Yes |
| Version | Standard (non-privacy) |
| Fingerprint Reader | Cut-out on palmrest (reader not included) |
| Touchpad | Not included |
| Palmrest Colour | Silver |
| Condition | New |
| Warranty | 3 Months |
Compatible Models
- HP EliteBook 840 G9
- HP EliteBook 845 G9
- HP EliteBook 840 G10
- HP EliteBook 845 G10
Disclaimer
- This is a palmrest top cover with backlit keyboard. Please check that part number N09058-001 matches the part on your own notebook before purchasing.
- HP lists several top cover versions for the EliteBook 840 / 845 G9 and G10. N09058-001 is the standard backlit version; notebooks fitted with the HP privacy screen use a different top cover (for example N09059-001). Cut-outs and keyboard options can differ between configurations, so please confirm with us before ordering, especially for G10 units.
- Only the palmrest with keyboard is supplied. Other notebook parts and accessories are not included.
- Back-order quantities cannot be cancelled after payment.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1 x HP palmrest top cover (C cover) with backlit keyboard
- Touchpad, fingerprint reader, other parts, screws and accessories are not included
Warranty
- 3 Months
Additional Notes
Product Description
This silver HP palmrest top cover, part number N09058-001, comes with a US-layout backlit keyboard already fitted. HP lists it as the standard backlit top cover for the EliteBook 840 G9, and parts suppliers also list it for the 845 G9 and 840 / 845 G10. The touchpad and fingerprint reader are not included, so they are moved over from the original palmrest. Replacing the C cover and keyboard as one assembly avoids removing a riveted keyboard from the original palmrest and renews a worn palm area at the same time. Please compare the part number label on your existing palmrest before ordering, or send us a photo and we will help you check.
