Description

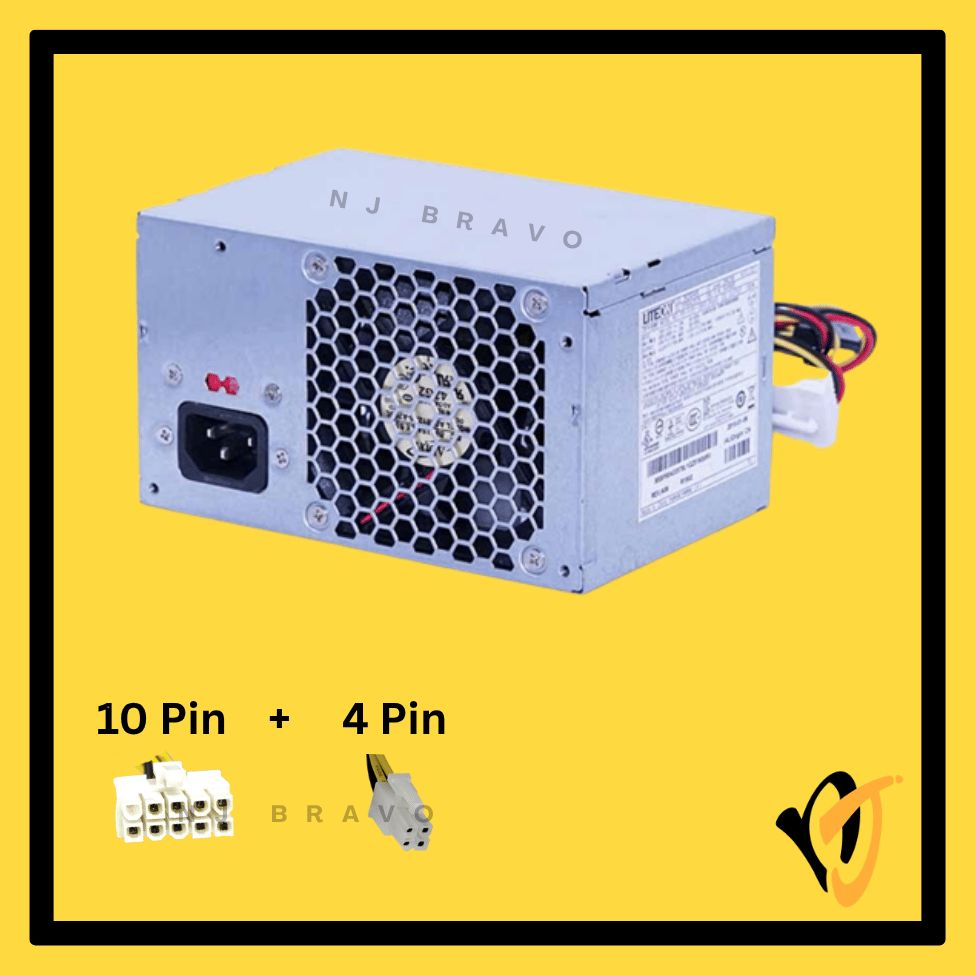

Lenovo 180W Power Supply PCE027 / 54Y8932 | ThinkCentre M4600 / M4900c / W4095c SFF TFX (10 + 4 Pin) – AcBel
Key Features
- New original Lenovo / AcBel 180W TFX power supply for ThinkCentre SFF series
- Part numbers: PCE027 / 54Y8932 / PCE028 / HK280-23PP / HK280-21PP / PA-2181-1
- AcBel OEM – 10-Pin main + 4-Pin CPU connector (10+4P) – Lenovo TFX SFF proprietary
- SFF form factor (150 x 100 x 85 mm)
- Stable 180W output for ThinkCentre SFF business desktop workloads
- Built-in OVP / OCP / SCP protection
- 10-Pin proprietary connector – NOT compatible with standard ATX or HP/Dell SFF PSUs
- AcBel OEM – same spec as factory Lenovo unit
Technical Specifications
| Brand | Lenovo OEM (AcBel) |
| Condition | New Original |
| Part Number | PCE027 / 54Y8932 / PCE028 / HK280-23PP / HK280-21PP / PA-2181-1 |
| Wattage | 180W MAX |
| Input Voltage | 100-240V AC, 50-60Hz |
| Output | 180W MAX continuous output |
| Form Factor | Lenovo SFF TFX (150 x 100 x 85 mm) |
| Connector Type | 10-Pin + 4-Pin CPU (10+4P) |
| Hot Plug | No |
| Protection | OVP / OCP / SCP |
Compatible Models
Lenovo ThinkCentre SFF TFX Series:
- Lenovo ThinkCentre M4600 / M4900c SFF
- Lenovo W4095c / M2601k / M2200r SFF
- Lenovo IdeaCentre models with 10-pin PSU
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1x Lenovo 180W Power Supply PCE027 / 54Y8932 (New Original)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- 10-Pin proprietary connector – Lenovo TFX SFF specific. NOT compatible with HP/Dell or standard ATX.
- Verify FRU/PN on existing PSU label matches PCE027 / 54Y8932 before ordering.
- AcBel OEM brand – functionally identical to factory Lenovo unit.
- New original unit – not refurbished or aftermarket.
