Description

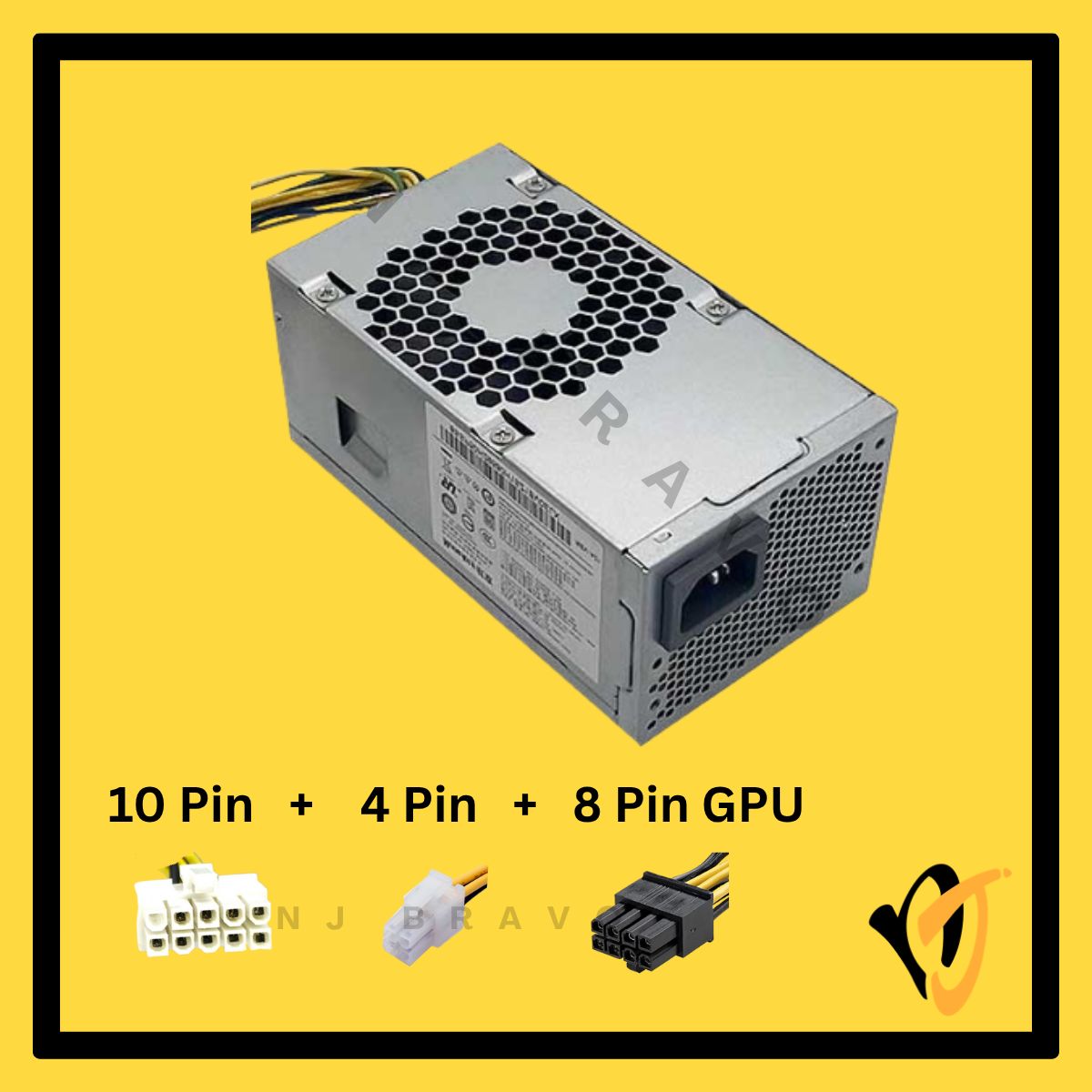

Lenovo 310W Power Supply PCJ007 | ThinkCentre M920s / M720t / M720s / M310 / M410 / M510 TFX (10 + 4 + 8 Pin) – AcBel
Key Features
- New original Lenovo / AcBel 310W TFX power supply – highest wattage in standard Lenovo TFX SFF family
- Model: PCJ007 – AcBel OEM TFX power supply with PCIe power
- Compatible FRU / PN: 00PC787 / SP50H29573 / HK360-71PP / PCH015 / PCK012
- Lenovo proprietary 10-Pin + 4-Pin CPU + 8/6+2-Pin PCIe GPU connector (10+4+8P)
- Same TFX form factor (150 x 65 x 82 mm) – includes PCIe power output for discrete GPU
- 310W for GPU-equipped ThinkCentre SFF builds – supports low-profile discrete graphics cards
- Built-in OVP / OCP / SCP protection
- AcBel OEM unit – functionally identical to factory Lenovo unit
Technical Specifications
| Brand | Lenovo OEM (AcBel) |
| Condition | New Original |
| Model Number | PCJ007 |
| FRU / PN | 00PC787 / SP50H29573 / HK360-71PP / PCH015 / PCK012 |
| Wattage | 310W MAX |
| Input Voltage | 100-240V AC, 50-60Hz, 4.0A |
| Output | +12V1/2/3 = 18A each; 310W MAX combined |
| Form Factor | Lenovo TFX SFF (150 x 65 x 82 mm) |
| Connector Type | 10-Pin + 4-Pin CPU + 8-Pin (6+2) PCIe (10+4+8P) |
| Hot Plug | No |
| Protection | OVP / OCP / SCP |
Compatible Models
Lenovo ThinkCentre SFF TFX Series:
- Lenovo ThinkCentre M310 / M410 / M415 SFF
- Lenovo ThinkCentre M510 / M610 SFF
- Lenovo ThinkCentre M710 / M910 SFF
- Lenovo ThinkCentre M720s / M920s SFF
- Lenovo ThinkCentre M720t Tower
- Lenovo H3060 / B415 / M4200R
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1x Lenovo 310W Power Supply PCJ007 (New Original)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- 310W with PCIe 8-pin (6+2) GPU power – supports discrete GPU in ThinkCentre SFF chassis.
- Highest wattage in the standard Lenovo TFX 10+4P family.
- Verify FRU/PN on existing PSU matches PCJ007 or 00PC787 before ordering.
- New original unit – not refurbished or aftermarket.
