Description

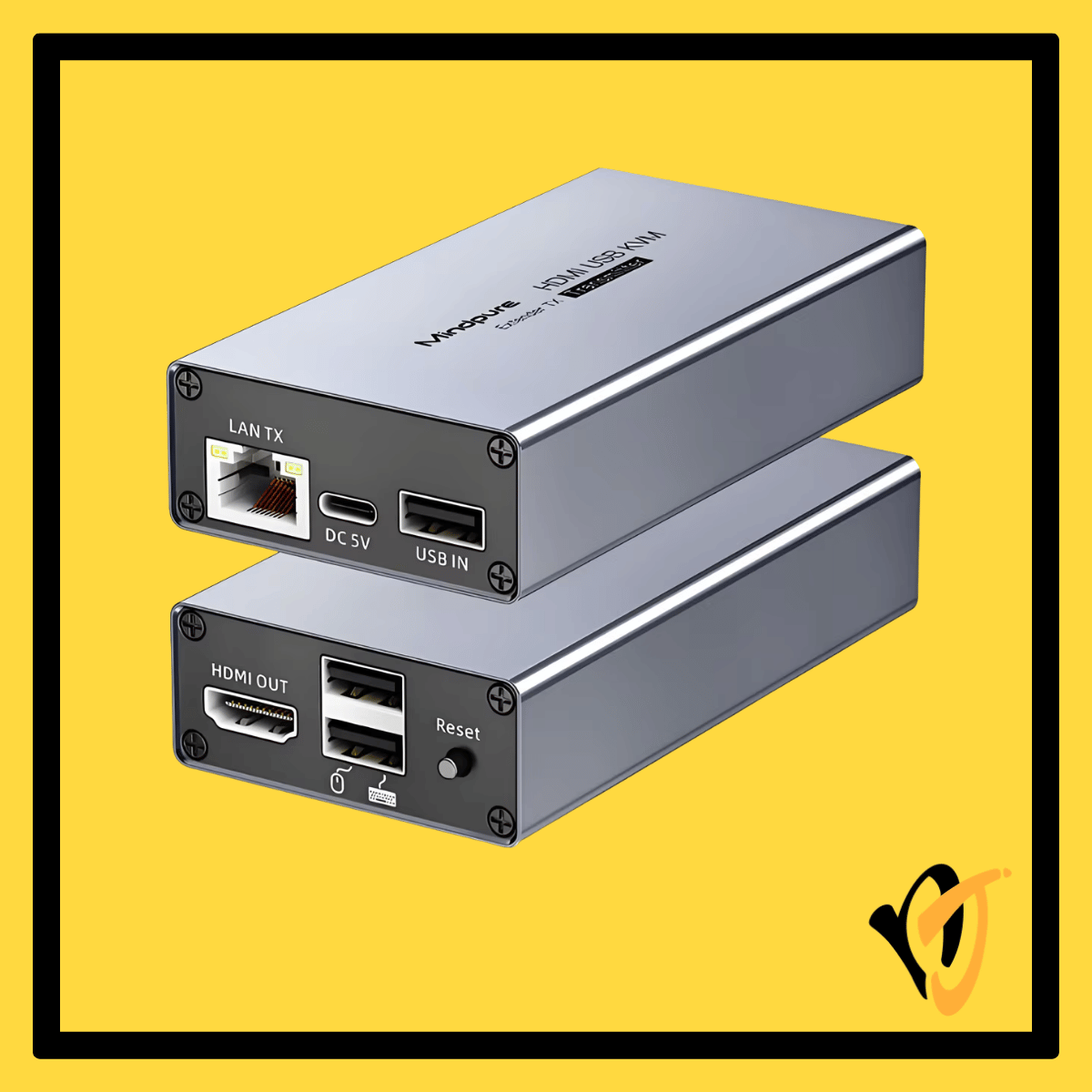

Mindpure HDMI KVM Ethernet Extender 150m – 1080P HDMI + USB Keyboard / Mouse over Single Cat6 Cable
Key Features
- New Mindpure HDMI KVM extender kit (TX + RX) that sends 1080P video and USB keyboard / mouse control over a single network cable
- Up to 150m over Cat6, or up to 120m over Cat5e
- Max resolution 1920 x 1080P @ 60Hz
- HDMI loop-out on the transmitter for simultaneous local monitoring
- Built-in ESD protection and EDID adjustment
- Two power adapters supplied (TX and RX) for continuous operation; durable Space Gray aluminium shell
Technical Specifications
| Brand | Mindpure |
| Product | HDMI KVM Ethernet Extender 150m (transmitter TX + receiver RX) |
| Max Resolution | 1920 x 1080P @ 60Hz |
| Transmission Distance | Up to 150m over Cat6 / up to 120m over Cat5e |
| Connection | Single network cable (RJ45) between TX and RX |
| TX (Transmitter) Ports | USB, RJ45, HDMI x2 (HDMI input + HDMI loop-out), Type-C DC power |
| RX (Receiver) Ports | USB x2 (keyboard / mouse), RJ45, HDMI output, Type-C DC power |
| Local Loop-out | TX unit provides an HDMI loop-out for a local monitor |
| Protection / Signal | Built-in ESD protection and EDID adjustment |
| Power | 5V / 1A power adapter x2 with Type-C power cables (one for TX, one for RX) |
| Housing | Space Gray aluminium shell |
| Condition | New |
| Warranty | 1 Year |
Suitable Applications
- Controlling a server, PC or workstation from a remote room, away from server-room noise
- Remote workstations, control rooms and office / conference room setups
- Monitoring points that need both a remote display and a local loop-out monitor
Disclaimer
- Maximum resolution is 1080P @ 60Hz. This extender does not support 4K.
- The 150m distance requires Cat6 cable; the range is 120m over Cat5e. Actual distance depends on cable quality and installation.
- Network cable, HDMI cables and USB cables are not part of the extender kit and must be supplied separately.
- Please check your source device, monitor and USB keyboard / mouse before ordering. If you need a specific power plug type, please confirm with us first.
- This item is ordered on a back-order basis. Once payment is made, the order cannot be cancelled.
If you are unsure whether this extender suits your setup, chat with the NJ Bravo team before ordering. We will help you check the requirements and compatibility.
Package Contents
- 1 x Mindpure HDMI KVM extender transmitter (TX)
- 1 x Mindpure HDMI KVM extender receiver (RX)
- 2 x 5V / 1A power adapters with Type-C power cables
- Network cable, HDMI and USB cables NOT included
Warranty
1 Year warranty for new items, subject to the NJ Bravo Return & Refund Policy. Damage from misuse, liquid, or unauthorised modification is not covered.
Additional Notes
Product Description
The Mindpure HDMI KVM Ethernet Extender 150m lets you place a server, PC or workstation far away from the screen, keyboard and mouse you use to control it. The transmitter sits at the source, the receiver sits at your desk, and a single Cat6 network cable carries 1080P video plus USB keyboard and mouse signals for up to 150 metres (120 metres on Cat5e). An HDMI loop-out on the transmitter lets you keep a local monitor running at the source at the same time. With ESD protection, EDID adjustment and a solid aluminium shell, it is a practical choice for server rooms, control rooms and offices.
