Description

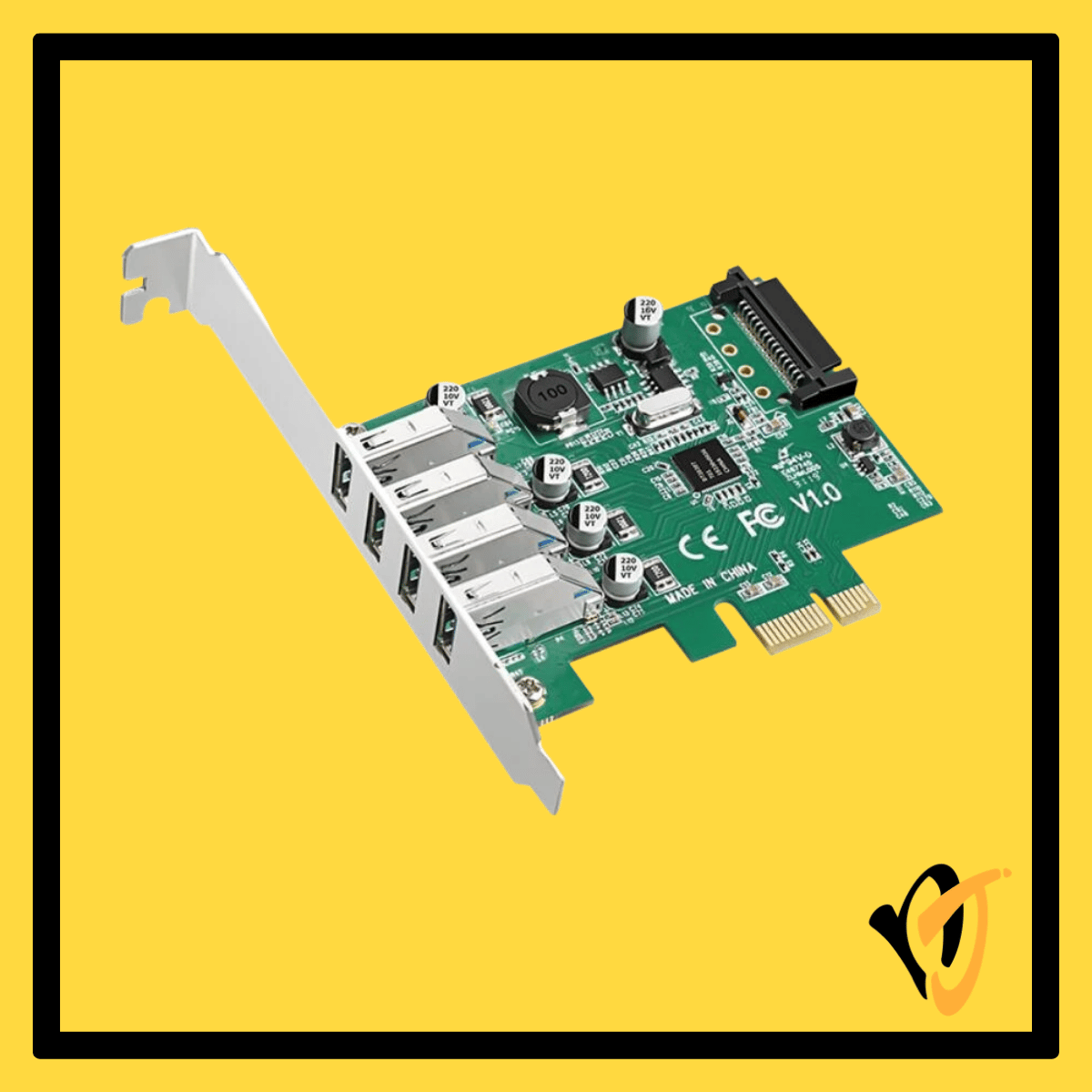

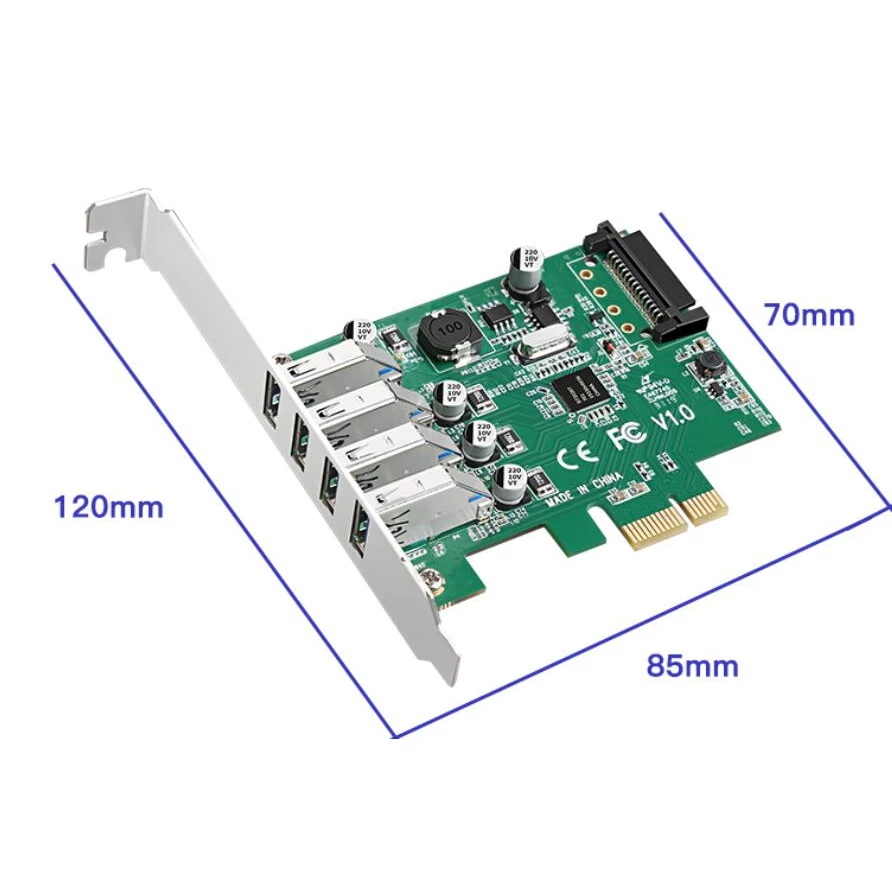

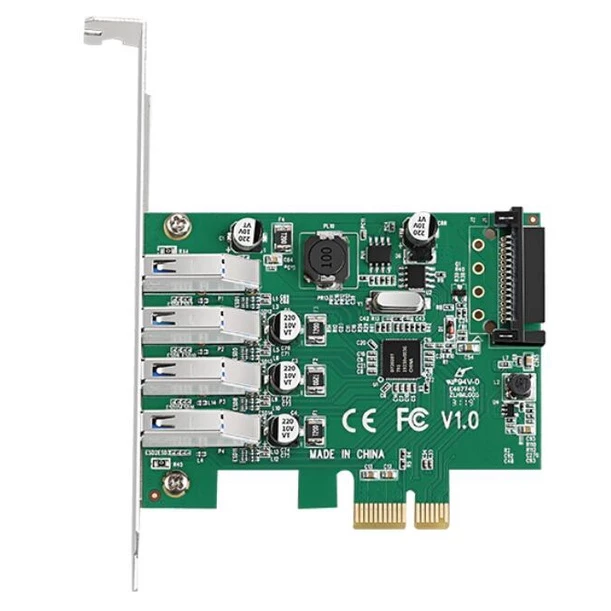

PCIe to 4 Port USB 3.0 Expansion Card – NEC or VIA Chipset, SATA Power, Low Profile
Key Features
- Adds 4 external USB 3.0 Type-A ports to a desktop PC or workstation through a single PCIe x1 slot
- Available with NEC (uPD720201) or VIA (VL805) chipset, selectable by variation
- Up to 5Gbps SuperSpeed USB 3.0 and backward compatible with USB 2.0 / 1.1 devices
- 15-pin SATA power connector for extra power to bus-powered USB devices

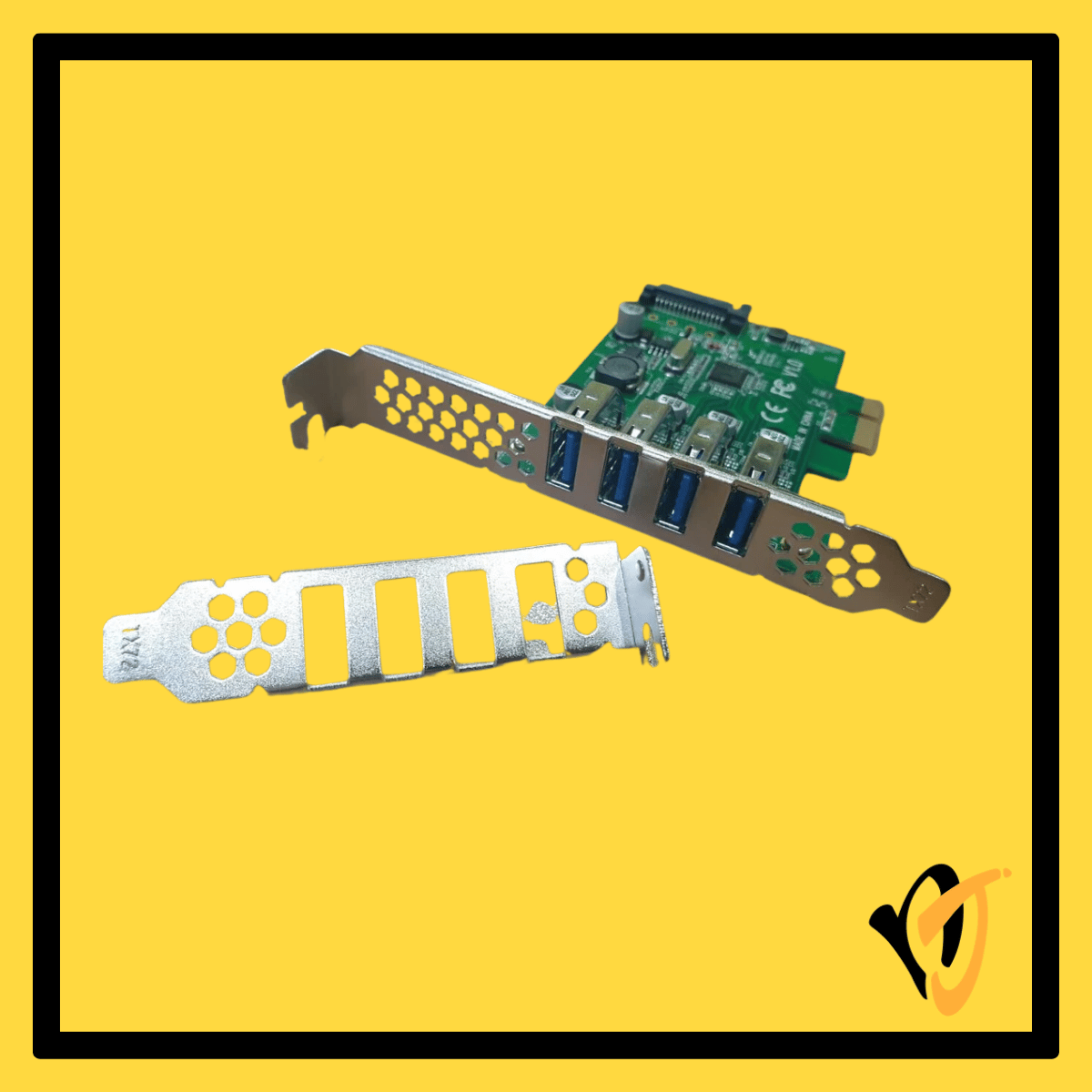

- Low profile bracket for slim and small form factor cases
Technical Specifications
| Product Type | PCI Express to 4 Port USB 3.0 expansion card, low profile |
| Chipset | Choose by variation: NEC (uPD720201) or VIA (VL805) |
| Host Interface | PCI Express x1 (PCIe 2.0) |
| USB Ports | 4 x USB 3.0 Type-A (external) |
| Data Rate | Up to 5Gbps (USB 3.0); backward compatible with USB 2.0 / 1.1 devices |
| Power Input | 1 x 15-pin SATA power connector (connect to PSU for bus-powered USB devices) |
| Power Output | Up to 5V / 900mA per USB 3.0 port (with SATA power connected) |
| Bracket | Low profile bracket |
| Brand | OEM |
| Condition | New |
| Warranty | 3 Months |
Suitable For
- Desktop PCs and workstations with a free PCI Express slot
- Slim and small form factor cases that need a low profile bracket
- Adding extra USB 3.0 ports for external storage, printers, scanners, dongles and other USB peripherals
- Older systems with few or no USB 3.0 ports
Disclaimer
- Two chipset versions are offered (NEC and VIA). Please select the version you want when ordering; the two versions use different chipsets and drivers.
- Connect the SATA power connector to your PC power supply when using USB devices that draw power from the port, such as external hard disks. Without it, high-power devices may not work properly.
- This card is for desktop PCs and workstations with a free PCI Express slot. It is not for conventional PCI slots. Please check your slot and bracket height (standard or low profile) before ordering.
- Driver and operating system support depends on the chipset version and your OS. Please confirm your operating system with us before ordering.
- Stock is limited and many orders are on a back-order basis. Back-order quantities cannot be cancelled after payment.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1 x PCIe to 4 Port USB 3.0 expansion card
- 1 x Low profile bracket
- Other accessories (SATA power cable, driver disc, manual) are not part of the standard package unless confirmed by NJ Bravo before ordering
Driver Download
Warranty
- 3 Months
Additional Notes
Product Description
This PCI Express x1 card gives a desktop PC or workstation four extra external USB 3.0 Type-A ports, running at up to 5Gbps and still working with older USB 2.0 and 1.1 devices. It is offered with either an NEC (uPD720201) or a VIA (VL805) host controller, so you can pick the chipset version that suits your system or your existing driver setup. A 15-pin SATA power input supplies extra power to the USB ports for devices that draw current from the bus, and a low profile bracket is included for slim cases. It is a practical way to add USB 3.0 connectivity to older machines or to expand the ports on a workstation.
