Description

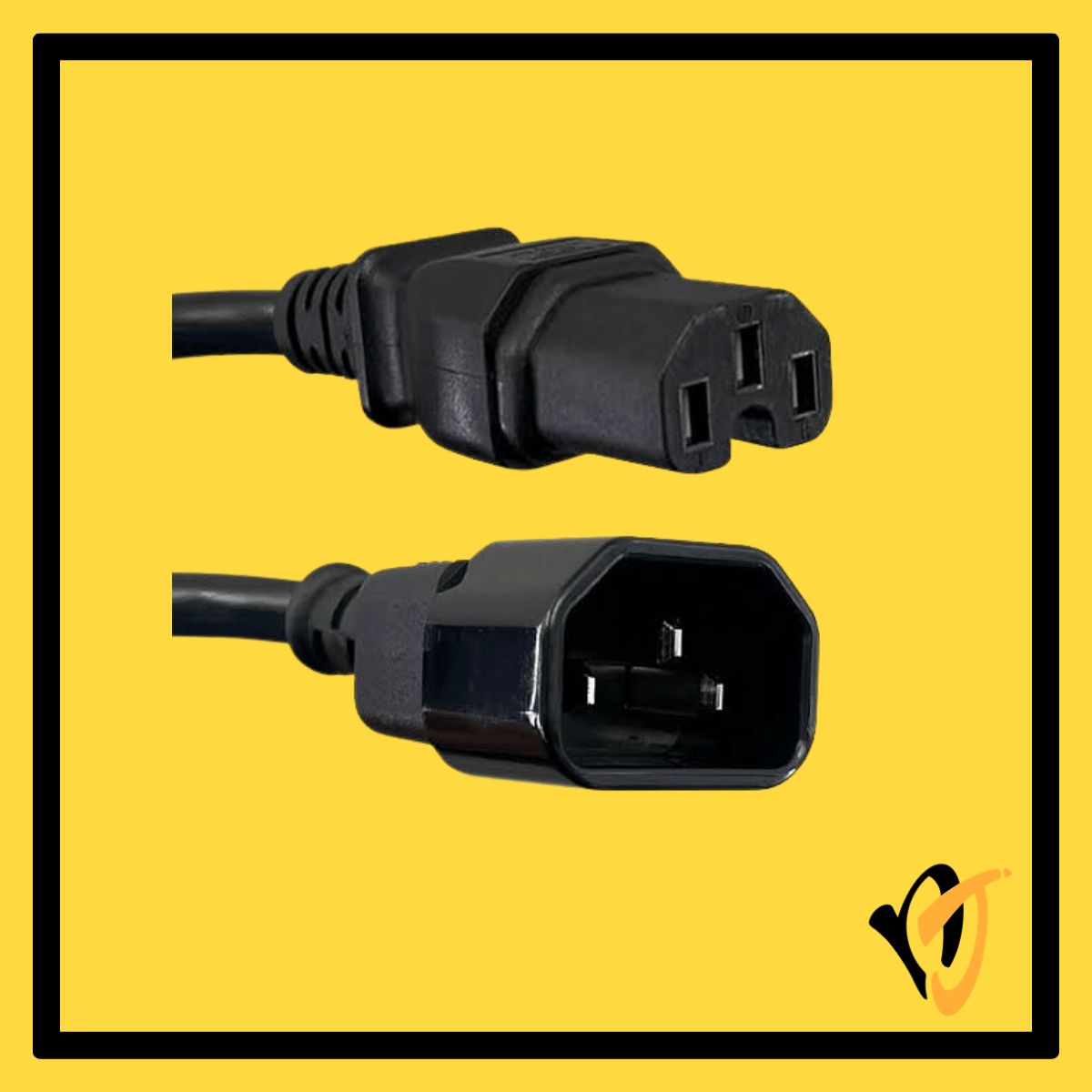

Power Cord C14 to C15 (1.8M~5M)
Available Lengths
| Length | Remarks |
|---|---|
| 1.8M | Standard short run |
| 3M | Standard short run |
| 5M | Standard run |
Price will be quoted upon request — please contact us to enquire.
Key Features
- IEC 60320 C14 (male) to IEC 60320 C15 (hot-condition female) — no UK plug; rack/PDU jumper cable
- C15 hot-condition connector rated up to 120°C — required for Cisco switches and high-temperature equipment
- Core size: 1.5mm² for 1.8M and 3M; 1.0mm² for 5M
- Copper conductors; 250V AC / 10A rated
- Available in 3 lengths: 1.8M / 3M / 5M
Technical Specifications
| Brand | OEM |
|---|---|
| Condition | New |
| Connector (End 1) | IEC 60320 C14 (Male) |
| Connector (End 2) | IEC 60320 C15 (Hot Condition, Female) |
| Core Size | 1.5mm² (1.8M / 3M) — 1.0mm² (5M) |
| Available Lengths | 1.8M / 3M / 5M |
| Conductor | Copper |
| Voltage Rating | 250V AC |
| Current Rating | 10A |
| Temperature Rating | Up to 120°C (C15 hot-condition rated) |
Compatible Models
- Cisco switches and routers with C16 inlet connected to PDU with C13 output
- High-temperature rack equipment requiring C14 plug to C16 (C15) socket
- Data centre PDU distribution to hot-condition devices
!
Disclaimer
Always verify the exact connector type (IEC C-series) and cable length required before ordering.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Additional Notes
- No UK plug — this is a C14 (male) to C15 (female) IEC-to-IEC jumper cable for rack use.
- Core size differs by length: 1.5mm² for 1.8M and 3M; 1.0mm² for 5M — specify length clearly when ordering.
- C15 connector also fits standard C14 inlets; however, its hot-condition rating (120°C) is specifically required for equipment that mandates C16 inlets.
- OEM product — generic packaging, no brand label.
