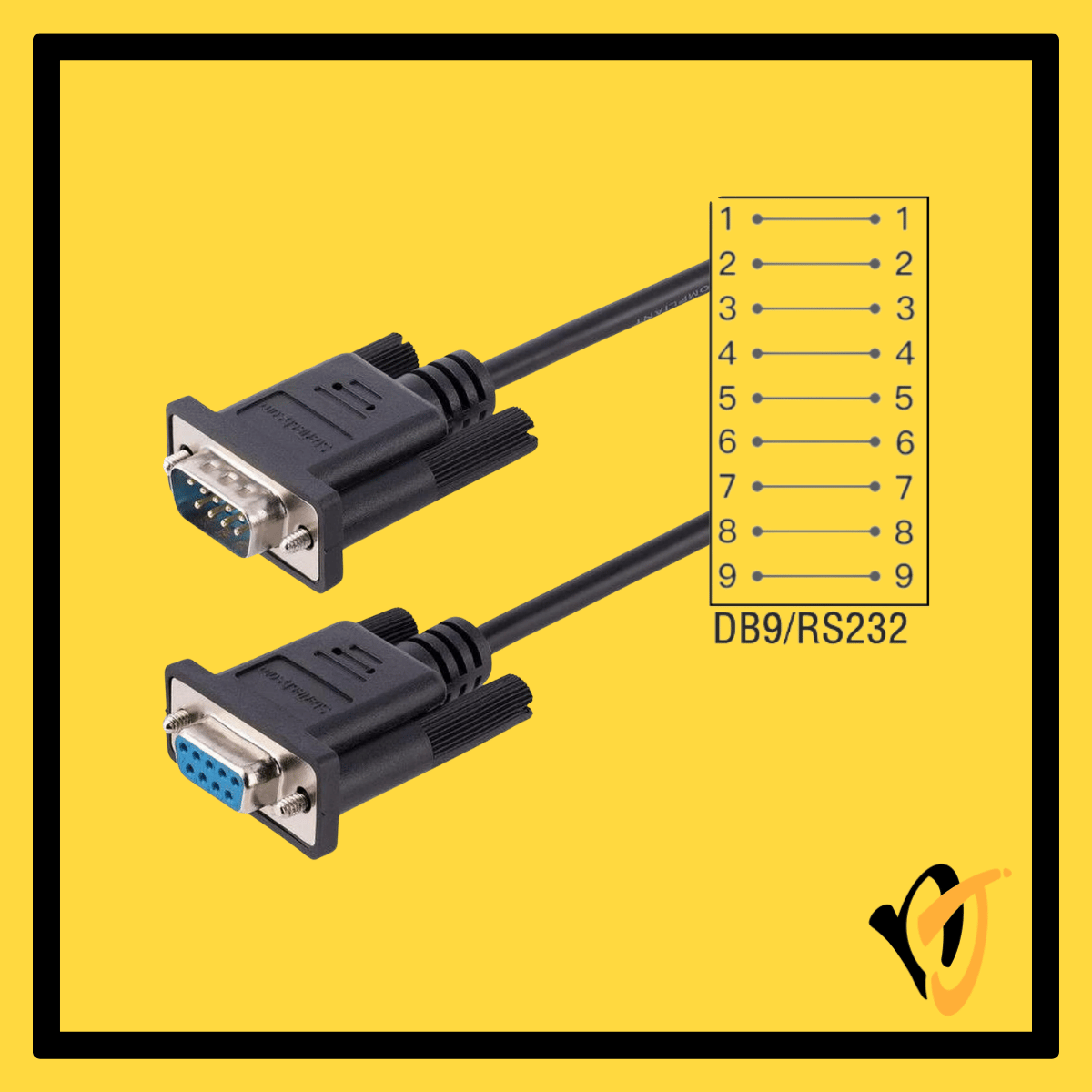

RS232 Serial DB9 9-Pin Male to Female Straight Cable Black DB9M-DB9F Full Copper (1.5–5M)
Key Features
- DB9 9-pin male to DB9 9-pin female RS232 serial cable.
- Straight-through pin arrangement for compatible RS232 extension and connection applications.
- Full copper conductor for reliable signal transmission in suitable serial installations.
- Black cable with male and female screw-lock connectors.
- Available in 1.5 m, 3 m and 5 m lengths.
- Passive cable connection with no driver or external power required.
Technical Specifications
| Brand | OEM |
|---|---|
| Cable Type | RS232 serial straight-through cable |
| Connector A | DB9 male, 9-pin D-sub |
| Connector B | DB9 female, 9-pin D-sub |
| Wiring | Straight-through / pin-to-pin for compatible cable wiring |
| Conductor | Full copper |
| Cable Jacket | Black PVC-type jacket |
| Available Lengths | 1.5 m, 3 m and 5 m |
Compatible Equipment
- RS232 serial equipment with compatible DB9 interfaces.
- Computers, controllers, PLC-related equipment, printers, modems and other serial peripherals where a straight-through DB9 M/F cable is specified.
- Industrial control and maintenance setups requiring additional DB9 serial cable reach.
Always verify the RS232 standard, DB9 gender, pin arrangement, device wiring and required cable length before ordering. A straight-through cable is not a null-modem or crossover cable.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1 × selected-length DB9 male-to-female RS232 cable.
Additional Notes
- This is a passive serial cable; connected equipment must provide compatible RS232 interfaces.
- Back-order purchase is allowed; customers will be notified if the selected length is not currently in stock.
