Description

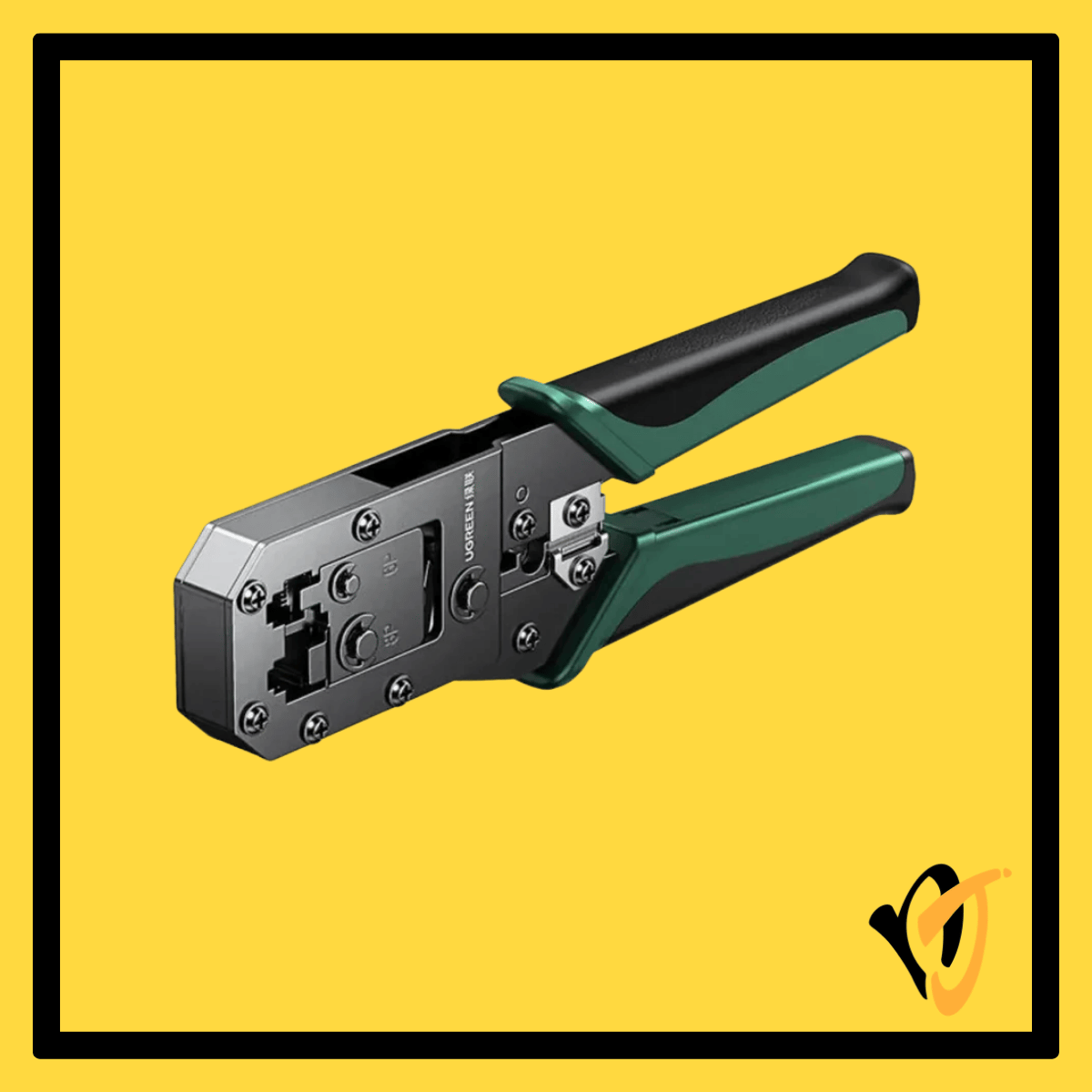

Ugreen NW136 8P/6P RJ45 / RJ11 Crimping Tool with Cutter and Stripper
Key Features
- New Ugreen NW136 (70683) 3-in-1 network and telephone crimping tool
- Crimps 8P (RJ45) and 6P (RJ11 / RJ12) modular plugs
- Built-in cable cutter and outer-jacket stripper
- Q235 carbon steel crimping head with SK5 steel blades
- Non-slip soft-grip handle for comfortable repeated crimping
Technical Specifications
| Brand | Ugreen |
| Model | NW136 (70683) |
| Condition | New |
| Crimp Dies | 8P and 6P modular plugs |
| Suitable Plugs | RJ45 (8P8C), RJ11 / RJ12 (6P) |
| Functions | Crimp, cut, strip |
| Crimp Head | Q235 carbon steel |
| Blades | SK5 steel cutting and stripping blades |
| Handle | Non-slip soft-grip handle |
| Dimensions | Approx. 194.5 x 42.4 x 15.1 mm |
| Weight | Approx. 282 g |
| Warranty | 3 Months |
Suitable For
- Making custom-length Cat5e / Cat6 Ethernet patch cables with standard RJ45 plugs
- Terminating RJ11 / RJ12 telephone cables
- Office, home and site network cabling work
!
Disclaimer
- This tool is for 8P and 6P modular plugs only. It does not crimp 4P handset plugs, coaxial, fibre or shielded industrial connectors.
- Pass-through (EZ) RJ45 plugs can be crimped, but the protruding wires must be trimmed separately as this tool has no flush-cut blade.
- RJ45 plugs and network cable are not included.
- Handle colour may vary by production batch.
- Back-order quantities cannot be cancelled after payment.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1 x Ugreen NW136 crimping tool
Warranty
- 3 Months
Additional Notes
Product Description
The Ugreen NW136 is a compact 3-in-1 hand tool for making your own network and telephone cables. One tool cuts the cable to length, strips the outer jacket and crimps RJ45 or RJ11 / RJ12 plugs, so IT technicians and office admins can build patch cables to the exact length they need. Always follow the same T568A or T568B wiring on both ends and check each finished cable with a network tester.
