Description
Used LENKENG LKV373 V2.0 / V3.0 HDMI Extender – Sender (TX) or Receiver (RX), 1080p up to 120m over Cat6
Key Features
- Used LENKENG LKV373 HDMI over IP extender unit, tested OK before shipping, supplied as a unit only (no box, adaptor, cables or manual)

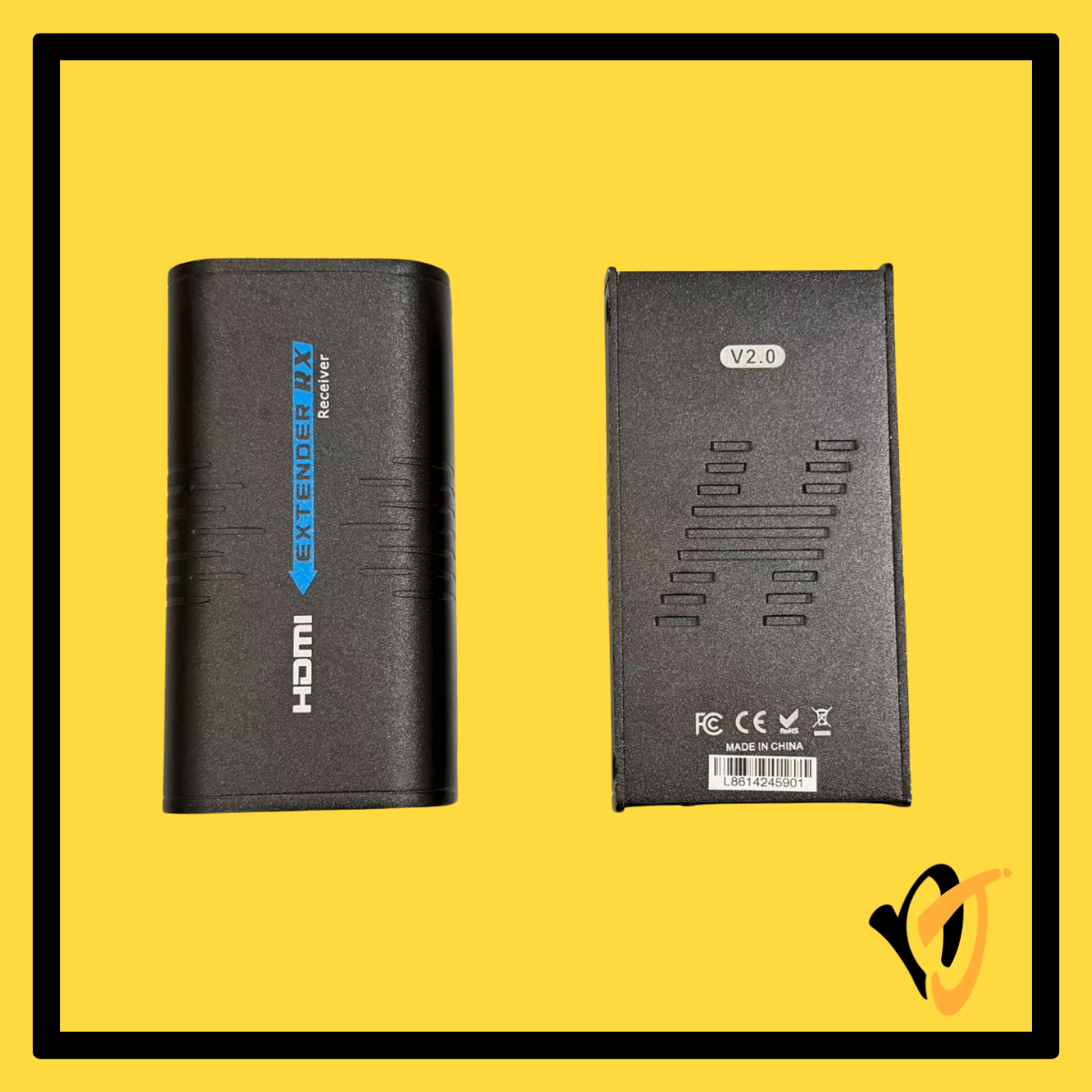

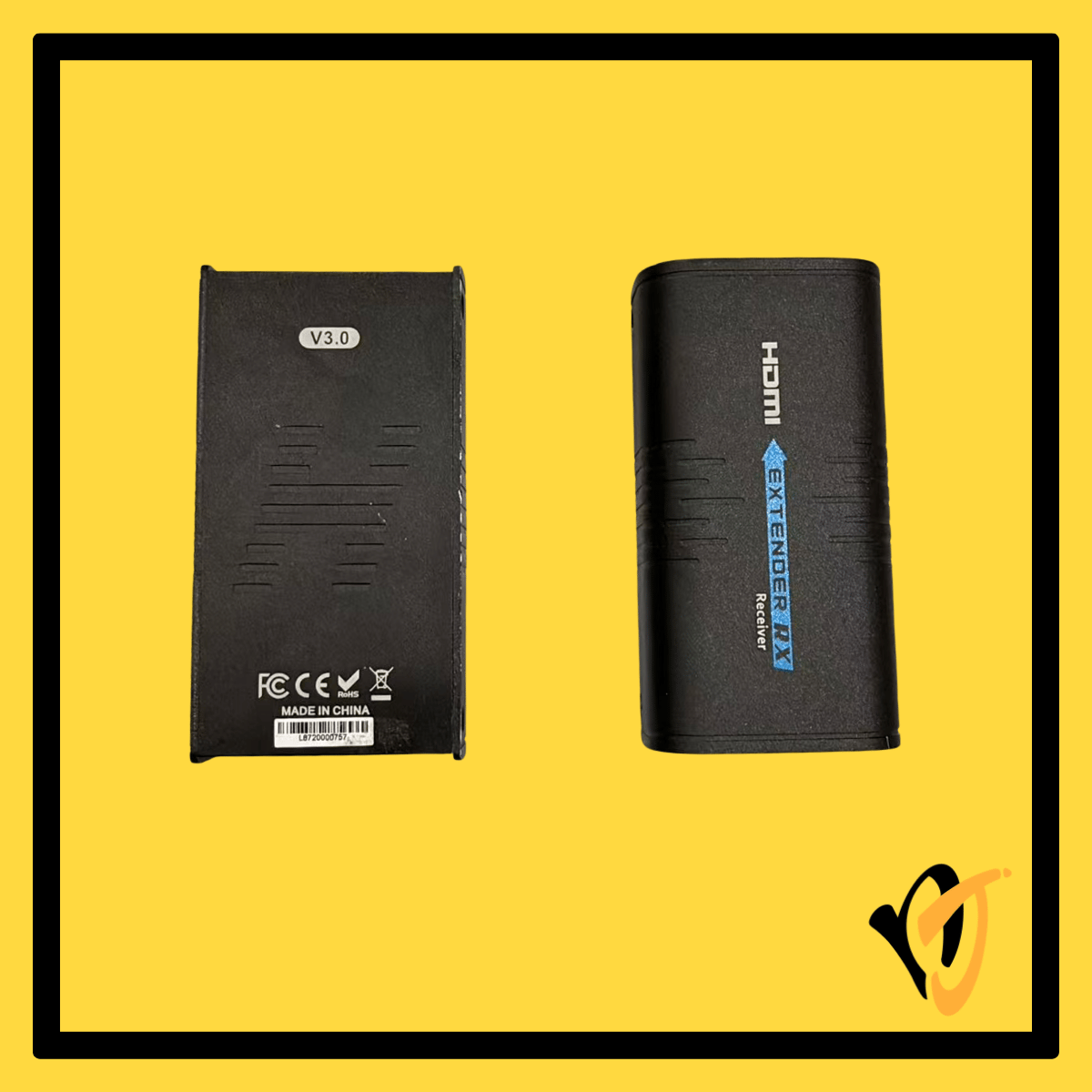

- Offered in V2.0 (LKV373) and V3.0 (LKV373A), each as a sender (TX) or receiver (RX) unit
- Extends HDMI over a network cable: up to 80m on Cat5, 100m on Cat5e and 120m on Cat6 at 1080p
- Supports resolutions up to 1080p@60Hz, HDCP compliant, HDMI 1.3 signal
- One sender can feed several receivers through a network switch
- Use sender and receiver of the same version: V2.0 and V3.0 units are not interchangeable
- 1 month warranty
Technical Specifications
| Brand | LENKENG |
| Model | LKV373 (V2.0) / LKV373A (V3.0) |
| Product Type | HDMI over IP extender, sold as a single sender (TX) or receiver (RX) unit |
| Version Options | V2.0 or V3.0 (choose by variation) |
| Unit Options | TX (Sender) or RX (Receiver) (choose by variation) |
| Transmission Medium | Single Cat5e / Cat6 network cable (RJ45), also works through a network switch |
| Maximum Distance | Cat5: 80m, Cat5e: 100m, Cat6: 120m at 1080p (per manufacturer and supplier information) |
| Supported Resolutions | 480i / 480p / 576i / 576p / 720p / 1080i / 1080p, up to 1080p@60Hz |
| HDMI Version | HDMI 1.3 (3D and HDMI 1.4 signals not supported) |
| Compliance | HDCP compliant |
| Network Speed | 100M Ethernet |
| Connection Mode | One sender to one receiver, or one sender to several receivers through a network switch |
| TX (Sender) Ports | 1 x HDMI input, 1 x RJ45 LAN output, 1 x DC 5V power input |
| RX (Receiver) Ports | 1 x HDMI output, 1 x RJ45 LAN input, 1 x DC 5V power input |
| Power Input | DC 5V / 1A per unit |
| Dimensions | Approx. 110 x 58 x 26 mm per unit (per supplier specifications) |
| Condition | Used, tested OK. Scratches, used signs and cosmetic wear may be present |
| Warranty | 1 Month |
Compatible Equipment
- Pair a V2.0 sender (TX) only with a V2.0 receiver (RX), and a V3.0 sender only with a V3.0 receiver
- LKV373A V4.0 units are not compatible with V2.0 or V3.0 units (per supplier information)
- HDMI sources with HDMI 1.3 output such as PCs with an HDMI graphics output, DVD players, set top boxes and game consoles
- HDMI displays, TVs, monitors and projectors with an HDMI input
!
Disclaimer
- These are used units, tested OK before shipping. They are not new, and scratches, used signs and cosmetic wear may be present.
- Please choose the version (V2.0 or V3.0) and the unit type (TX or RX) carefully. A sender and receiver must be the same version, and a sender cannot work without a receiver.
- The extender is designed for a network used only for the extender. Supplier guidance is not to connect it through a PoE switch, and to avoid sharing the network with other devices such as computers or printers.
- Distance depends on the network cable type and quality. 3D and HDMI 1.4 signals are not supported, and results depend on your source and display equipment.
- Each unit is supplied on its own, without box, power adaptor, network cable, HDMI cable or user manual. A DC 5V/1A power adaptor is needed to run each unit.
- Stock is limited and many orders are on a back-order basis. Back-order quantities cannot be cancelled after payment.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1 x LENKENG LKV373 sender (TX) or receiver (RX) unit only, V2.0 or V3.0 as selected
- Without box, power adaptor, network cable, HDMI cable or user manual
Warranty
- 1 Month
Additional Notes
Product Description
This is a used LENKENG LKV373 HDMI over IP extender unit, sold as either a sender (TX) or a receiver (RX) in V2.0 or V3.0. The extender converts an HDMI signal to a standard network signal, so a source such as a PC, DVD player or set top box can be shown on a display or projector up to 120 metres away over a Cat6 cable, at up to 1080p@60Hz. A single sender can also feed several receivers through a network switch. Please keep the sender and receiver on the same version when ordering, as V2.0 and V3.0 units do not work together.
